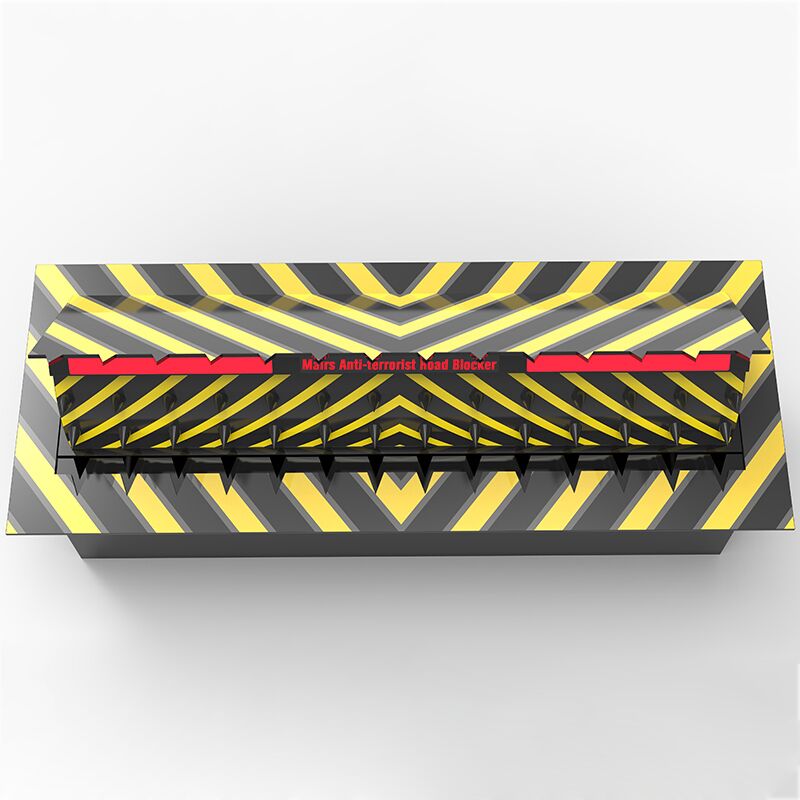

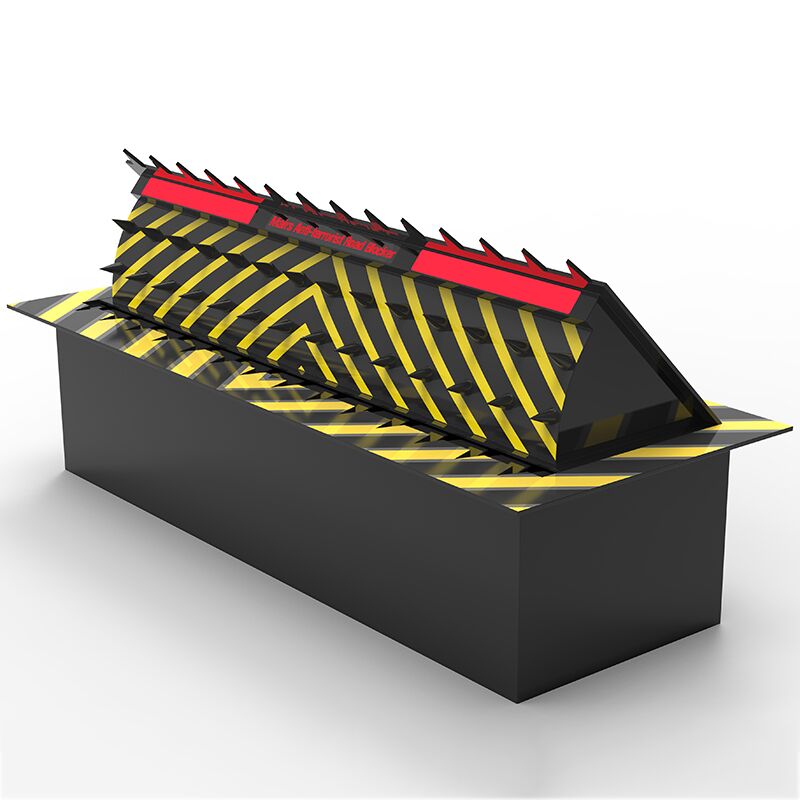

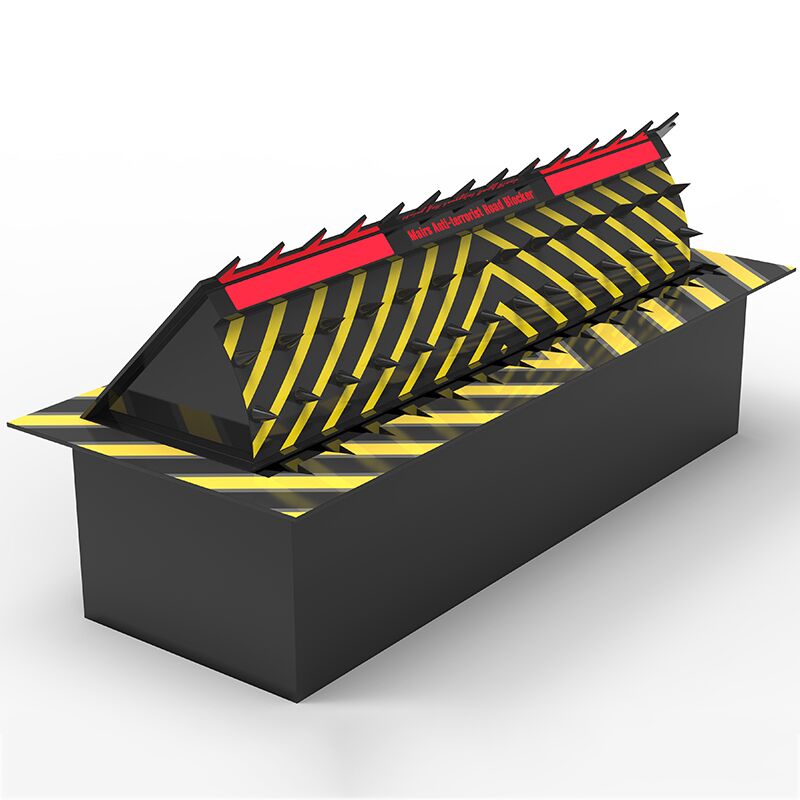

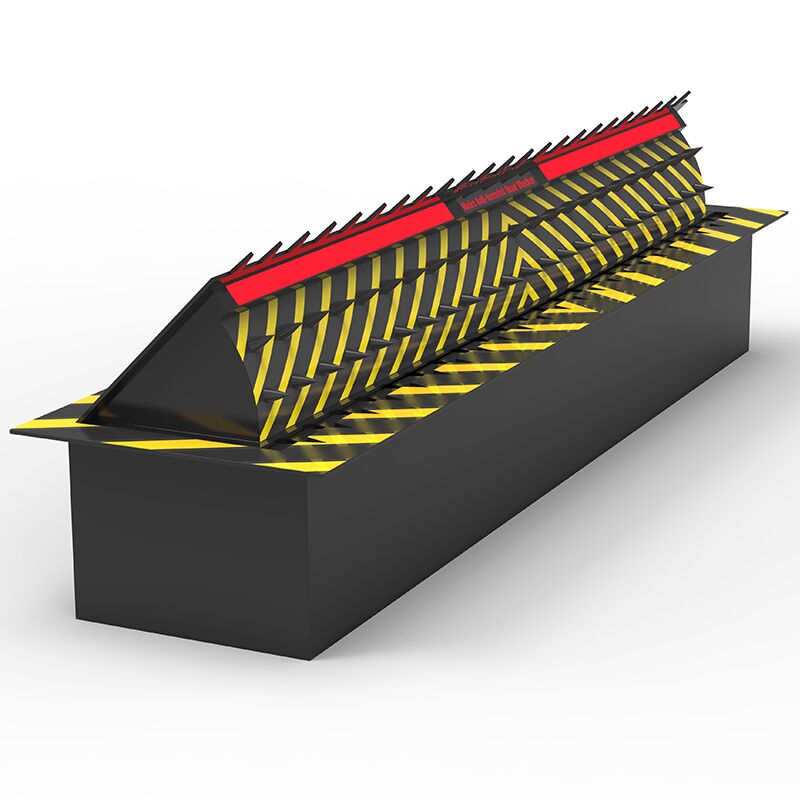

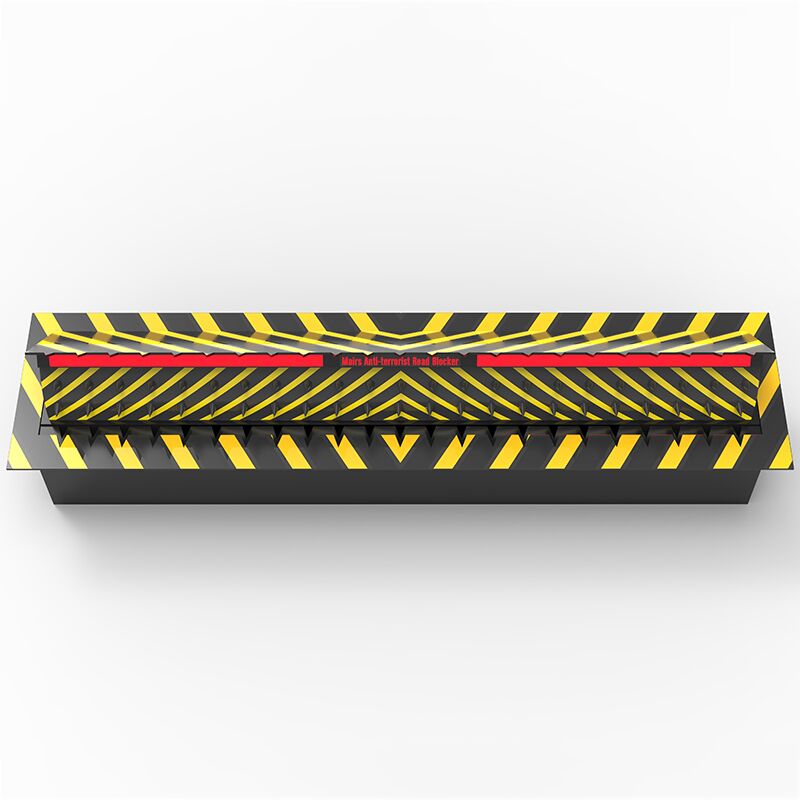

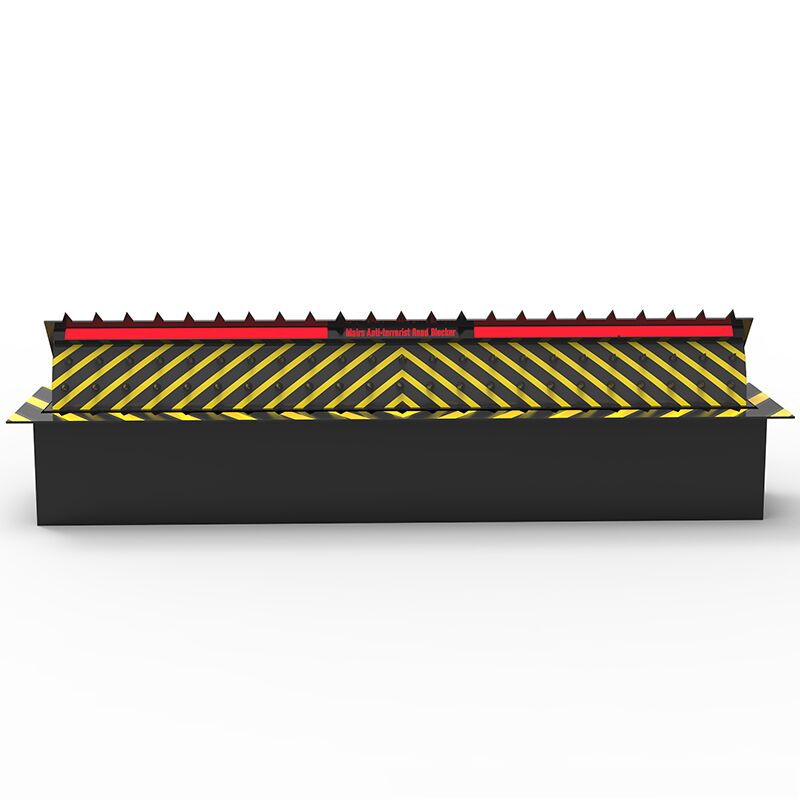

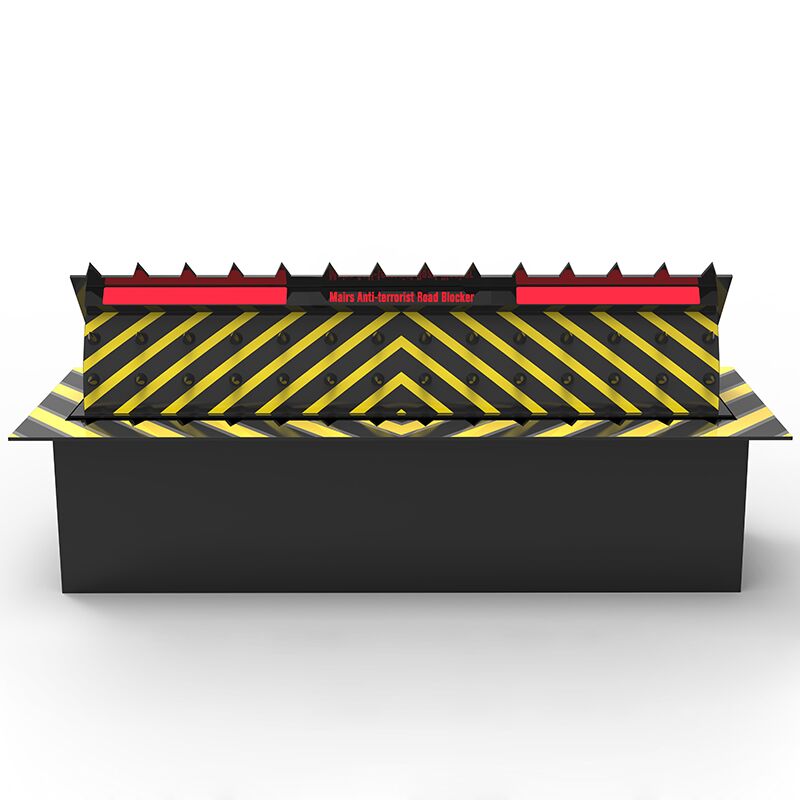

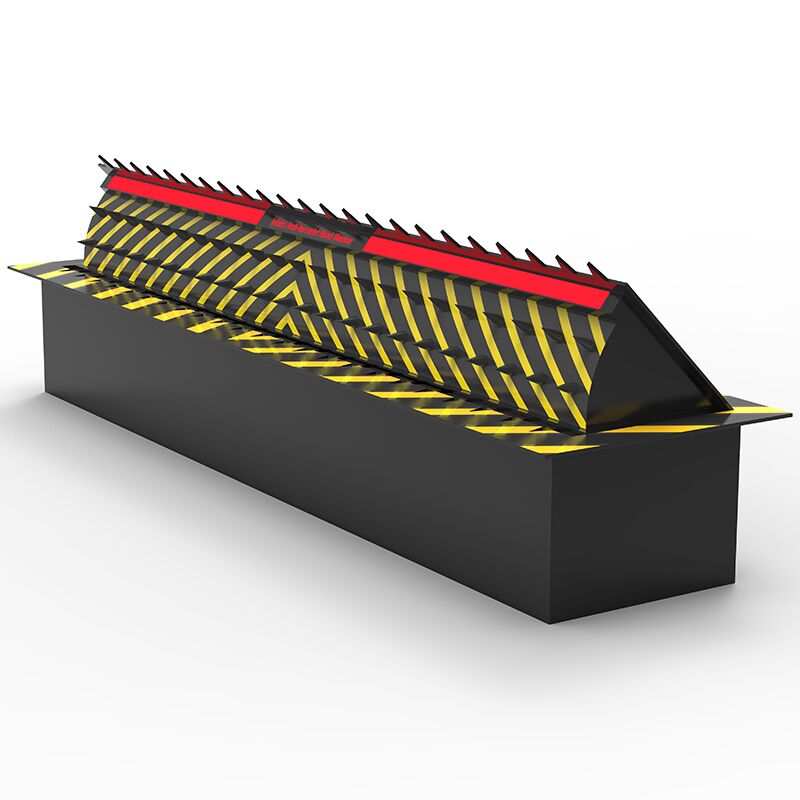

Anti-terrorist heavy duty automatic road blocker MT831

1. System: Hydraulic Pressure Drive

2. Passing pressure:120 tons of container trucks

3. Voltage: 3pahses 380(Control voltage 24V)

4. System Dynamic power (w): 3.75KW/5.5KW

5. Rising time: ≤1-3S(Adjustable)

6. Lowering time: ≤1-3S(Adjustable)

7. Working Temperature: -35℃~75℃(suitable)

8. Material thickness: 16MM(standard)

9. Material: A3 steel with anti-rust paint

10. Color: Optional

Last updated on: 27 kwietnia, 2024 17:01 pm

Automatic road blocker carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. This automatic road blocker can be equipped with a card reader, which can automatically control the lifting of the hydraulic rising bollards through card swiping. It can also be equipped with a parking turnstile gate or access control. It can also be connected with the management system and the charging system and controlled by the computer. You can also customize the LED flashing function to flash warning during column activity and light warning at night. You can also customize the audible alarm and intermittent alarm. If you want to customize a hydraulic rising bollard, please contact us

Automatic road blocker is a kind of traffic security equipment with good characteristics (such as anti-collision, anti-terrorism, anti-rust, corrosion resistance, long service life, etc.), which is used to prevent unauthorized vehicles from forcibly entering, and has high practicability, reliability, and safety.

Automatic road blocker is widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted.

Automatic road blocker is one of the highest security vehicle access control systems in which a vehicle without permission cannot enter. Tyres of the unpermitted vehicle split open immediately, therefore the vehicle moves only a few more meters and is stopped. The jaws of the tire killer move all together. Electro drive unit is placed to one end of the tire killer, it stands above the ground level and is a complete assembly with the body. In this way, both smooth transmission of motion and minimum effect of external factors are achieved.

Automatic road blocker parameters:

Weight: 1.5T

IP rate: IP68

The roadblock has a buffer function

Buffer time: 0.2-0.5s

LED light with various color options

Traffic light, boom barrierLink-control interface

In case of a power outage, the roadblocks can be manually raised and lowered

Reliable structure, heavy-duty load, smooth action, low noise.

Remote control distance: 50-100m(According to the environment)

In raising and falling, a reversible operation is available.

The device running noise≤60decibel

The hydraulic cylinder is double-sealed to ensure a waterproof rating

The hydraulic drive comes with a hydraulic lock

Welding steel cylinder

PLC programming command control system

Control solenoid valve 24V

Lifting solenoid valve 24V

The control box displays text adjustable(Up, Down, Action, and Time control adjustable)

Text display with Chinese and English bilingual

PLC built-in encryption system

Text LCD display, precision start time setting

Heavy-duty hydraulic cylinders: HOB63-200CA+I Stroke200  Heavy-duty Industrial Level

Double dynamic double oil pump 2.3ML/time

Oil container:60liter

Hydraulic oil hose: PT international interface, 1/2 Double wire high-pressure hose

Road blocker size: Standard Length is 3 meters or 5 meters

L2000(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L2500(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L3000(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L3500(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L4000(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L4500(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L5000(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L5500(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L6000(cm)*W1000(cm)*H760(cm), Rising height:  500(Customized)

dimension of road blocker

road blocker
