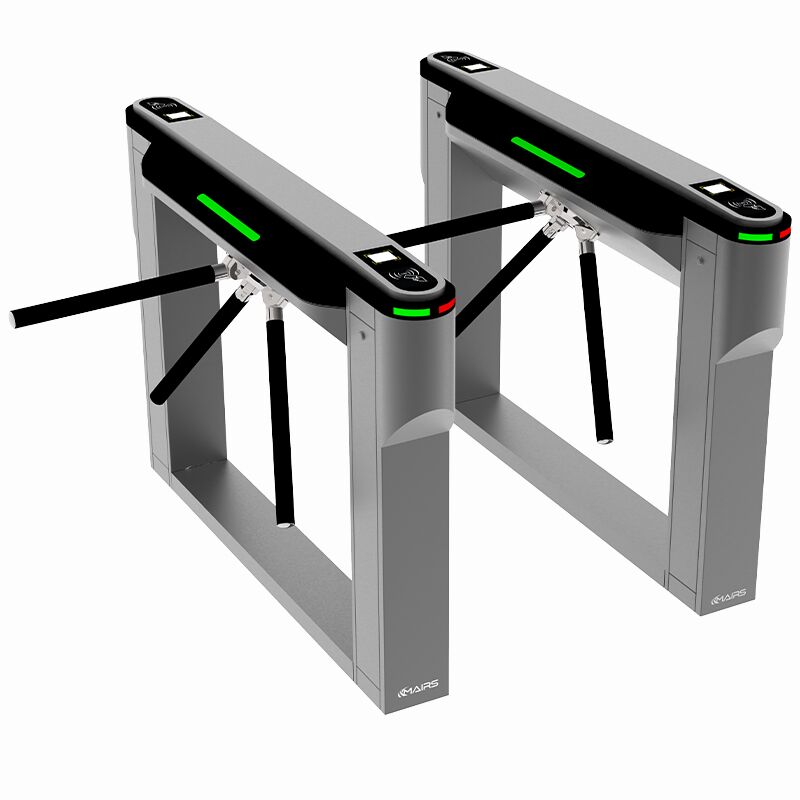

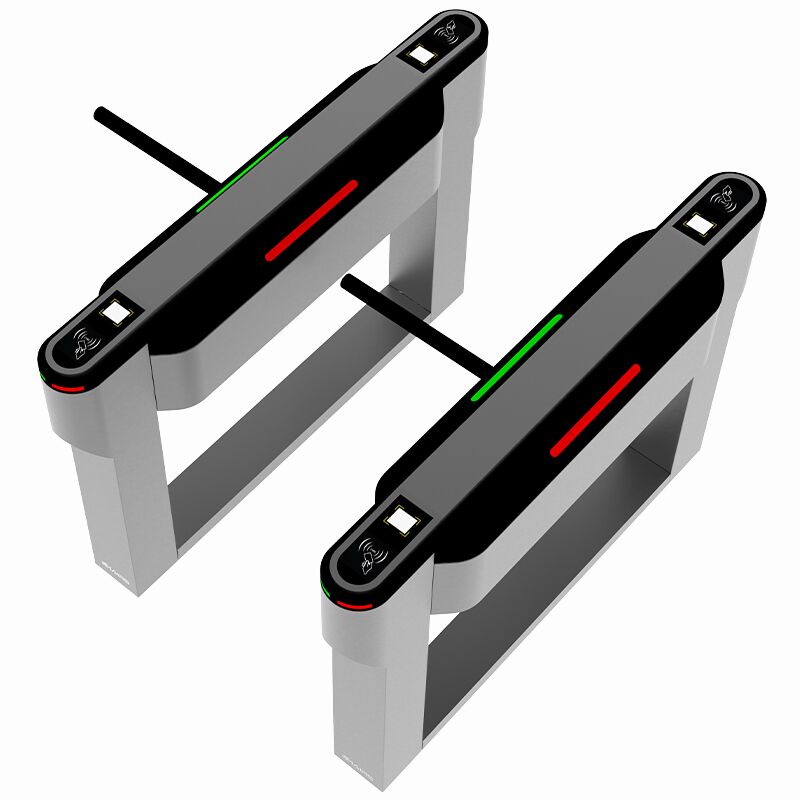

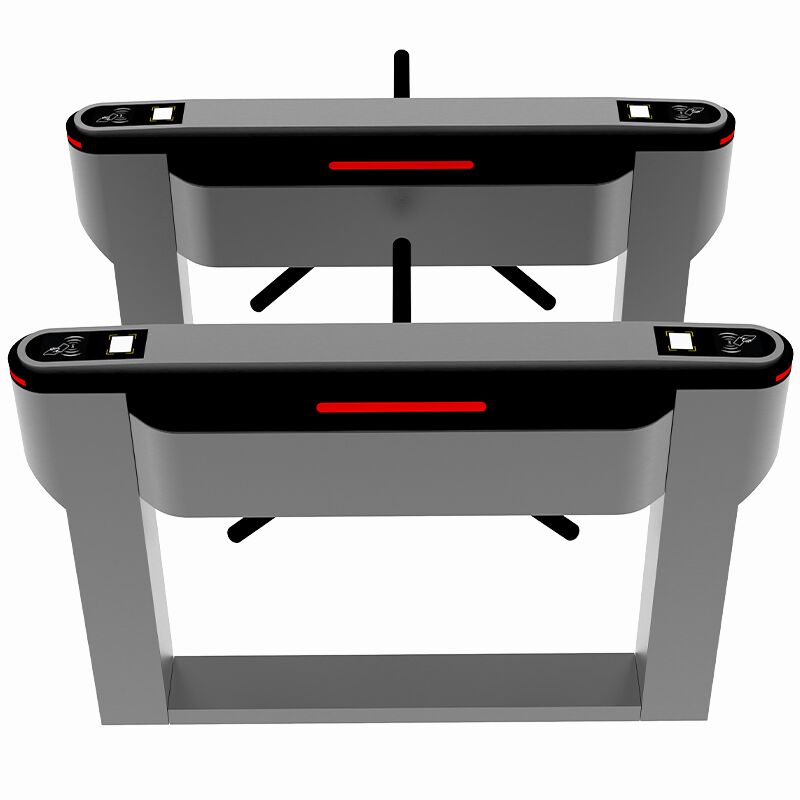

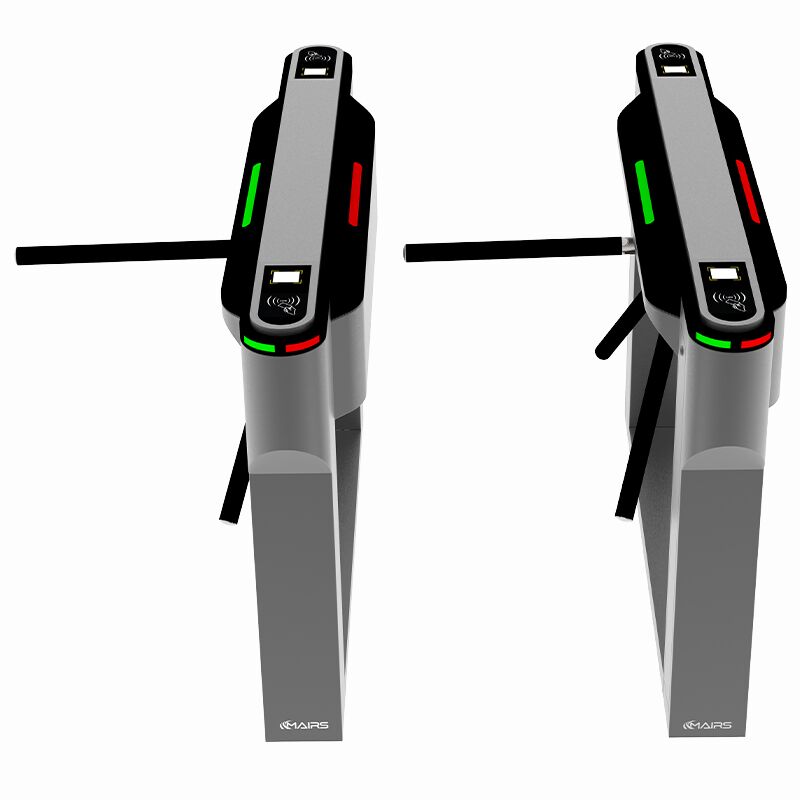

TRIPOD ACCESS CONTROL SYSTEM TURNSTILE MT142

1. Size: 1400*280*980 mm (can be customized)

2. Lane width: 550 mm (can be customized)

3. Passing speed: 35 person/min

4. Power supply: 110V/220V 50/60Hz

5. Tripod access control system Weight: 60 kg

6. Gate Open Signal: Dry Contact/ Relay

7. Arm protective sleeve can be added

8. Mechanism with hydraulic damper for shock-absorbing

9. Operation way: Semi-automatic

CE Certificated, ISO9001 Certificated.

Last updated on: March 9th, 2023 16:38 pm

TRIPOD ACCESS CONTROL SYSTEM TURNSTILE carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services.

Tripod Turnstile offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.

  • Tripod access control system turnstiles are compact and cost-effective entrance solutions.
  • The tripod access control system turnstile has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, durable.
  • Tripod turnstiles can be mounted for both indoor and outdoor locations. The IP rate is 54
  • It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face recognition, Barcode, IR thermometer).
  • The gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
  • The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.
  • Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life
  • The mechanism is mold design. All the components are precise and.  It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.
  • The design of the tripod turnstile makes only one person pass at one time.
  • Reliability of the mechanism: 3 million, no-fault
  • Single-directional or Bi-directional is an option.
  • LED directional indicator light on top
  • Automatic clock function: if there is an open signal received,  but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.
  • When power off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.
