1.  Size:2580*1300*2290 mm(can be customized)

2. Lane Width: 650 mm(rotor) 900mm(handicapped)

3. Material: 304 stainless steel or 316 stainless steel

4. Passing speed: 25 person/min

5. Power supply: 110V/220V 50/60hz

6. Solenoidvalve: DC24V

7. Gate Open Signal: Dry Contact/ Relay

8. Reliability of the mechanism: 5 million, no-fault

9. Mechanism with hydraulic damper for shock-absorbing

CE Certificated, ISO9001 Certificated.

MT451-C Full Height Handicap Turnstile Brochure

Full Height Turnstile User & Installation Manual

Last updated on: April 27th, 2024 17:11 pm

HANDICAP TURNSTILES GATE carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. If you have any special needs and need to customize the product, you only need to provide relevant pictures and parameters. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

Handicap turnstile is a kind of pedestrian turnstile gate that is used for handicapped wheelchair access control, which lane width should be at least 900mm. Handicap turnstile is usually designed for handicapped, disabled people, which facilitates the travel of the disabled. The disabled and wheelchairs can pass through easily. The handicap turnstile is different from the traditional flap barrier turnstile and tripod turnstile. Access is not restricted by physical ways such as wing plate and blocking rod. The handicap turnstile has no motion principle, only an inductive recognition function.

There are many styles of handicap turnstiles, which can also be customized according to your actual needs. All of our swing turnstile gates, and speed gates can be specially designed for disabled people, and handicapped. All models of swing turnstiles, and speed gates can be used for handicapped access. Some models of double retractable flap barrier and sliding gate turnstile can be 900mm passage width also. It compliance with ADA (The Americans with Disabilities Act ). If you need any types of handicap turnstile, please inquiry us

About this ADA turnstile or handicap turnstile product, because of the factors of the on-site installation environment or site and site access requirements, many customers may only need the simple version of the ADA turnstile. If you have any needs in this regard, you can also contact us to customize it. For example, the following two simple versions of the full height swing turnstile gate are customized by our customers. This full height swing turnstile solves the problem that the full height turnstiles cannot pass through bicycles and wheelchairs. The simple version of the swing turnstile gate is completely designed for the passage of bicycles or disabled people.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

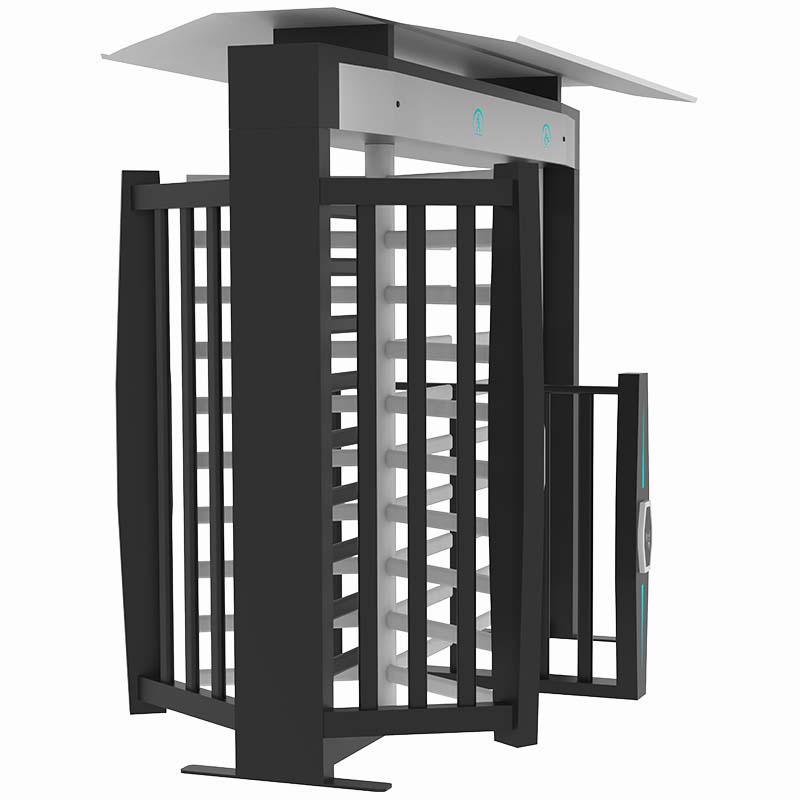

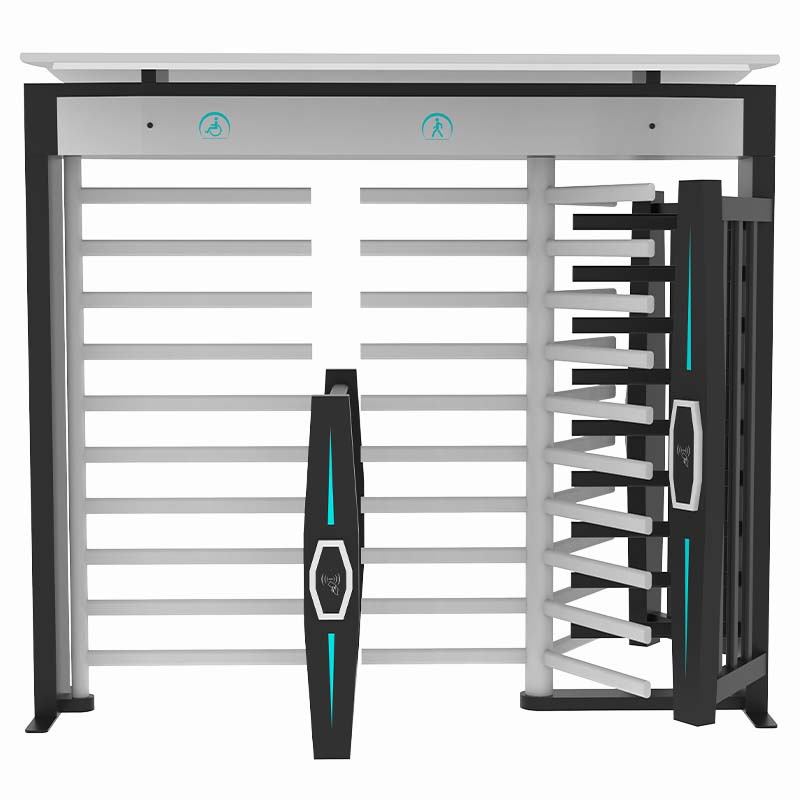

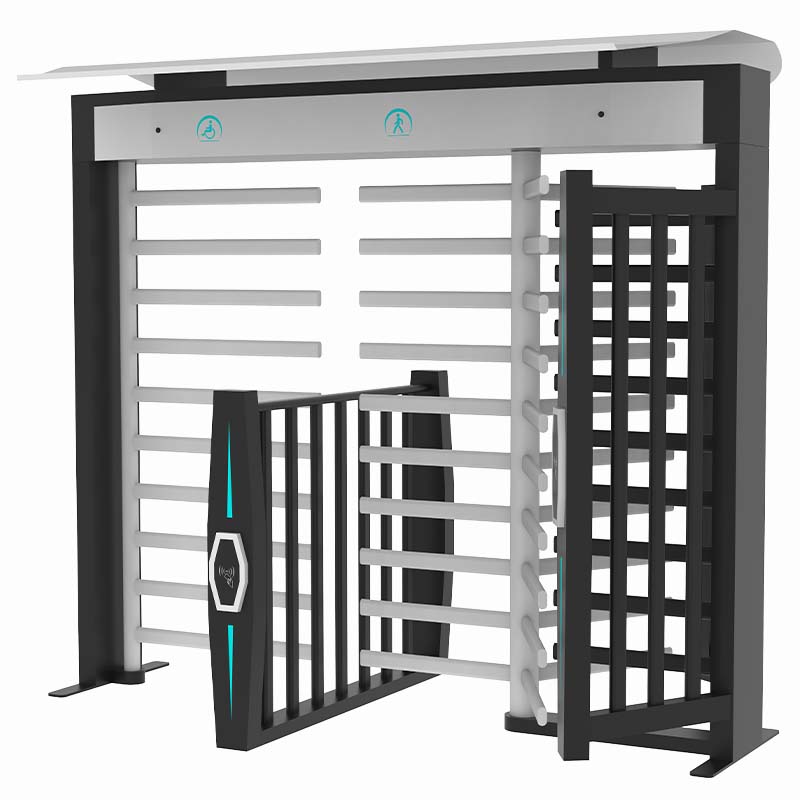

handicap turnstile 4 handicap turnstile 5

There is a traffic light on the top cover of the product, and an LED traffic light is made according to the customer’s needs. We can meet the needs of any OEM or ODM.

The handicap turnstile can quickly and accurately judge the illegal identity of personnel when passing through the equipment, output alarm signals, and snap photos. Moreover, the access control system can use image comparison technology to screen suspicious access records or suspicious personnel information in sensitive time periods.

The handicap turnstile judges whether there are people and goods in and out of the channel through RFID technology and infrared technology, judges the legitimacy of people and goods in and out of the channel in combination with long-distance wireless data acquisition technology, and reminds them by means of audible and visual indication.

The handicap turnstile is characterized by long-distance wireless data acquisition technology. Personnel entering and leaving the channel do not need to actively show their identity documents, but only need to know their identity information and legitimacy through the channel.

The handicap turnstile gate is composed of a chassis and an electrical control module. The turnstile gate control motherboard detects the disabled people passing process through an infrared detector, and the handicapped/disabled people can pass through with legal authorization; If a pedestrian enters the passage without authorization, the audible and visual alarm will be activated to prompt that the pedestrian is not allowed to pass without authorization.

Handicap Turnstile Access Control Facial Recognition RFID turnstile for Office building. Standard signal input interfaces are generally configured, such as RS485 / RS232, or TCP / IP interface, which can integrate with various third-party software, biometric equipment, and access control controllers. It is suitable for various indoor occasions such as business buildings, office buildings, exhibition halls, and so on.

The full height turnstile gate handicap turnstile controls the people who enter or exit the restricted area. The casing is high-quality brushed 304 stainless steel. The mechanism uses cutting-edge technology to min the size but ensures high performance. They are also equipped with a famous brand DC brushless motor and sophisticated sensor.   The swing turnstile has a standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face, Barcode, IR thermometer). It is easy to set up multi-lanes. Mairs offers the best handicap turnstile gate at the cheapest price online. Handicap turnstile for disabled individuals, disabled people, and handicapped.

    • In case of emergency, cut off the power, handicap turnstile will open automatically to allow free passage which is complying with fire safety requirements. But it has to come with a battery. As for export, the battery is sensitive, we can use the capacitor to replace it.
    • Full height turnstile gate for the handicapped is suitable for luxury and high-end entrance solutions.
    • The whole system runs smoothly, with low noise, and high speed.
    • Alarm function, if there is an illegal intrusion and reverse intrusion, the gate will alarm and the door will lock.
    • There are a total of 6pairs of infrared sensors The middle sensor is to prevent pinch pedestrians.
    • Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
    • LED indicator. Red cross and green arrow. There are also LED indicators on the front post.  The LED light can be added to the arms.
    • Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency.
    • Automatic reset function. If the people did not pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically
    • Anti-bump, Anti clamp, The gates come with a brushless motor. During operation, if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians especially children from bumping, clipping, striking, etc.
    • Mechanism: the handicapped gate is an automatic one with a Brushless motor
    •  Semi-automatic full height for regular access(automatic optional)
    • The direction of rotation: Bidirectional/Single directional
    • Emergency situation: In the event of an emergency or isolation of the power supply the Rotating Door can be configured to Fail-Safe i.e.rotates freely or Fail-Lock
    • Humidity: ≤95%
    • Drive: Semi-automatic Operated
    • Working temperature:-25℃~60℃
    • Optional Feature:  IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
    • Communication distance: ≤1200 m
    • Communication interface: RS485
    • Time needed for opening: 0.2 s
    • Working environment: Indoors or outdoors
    • Application range: Community, Factory, Construction site, School, Place of the resort, Government facility, etc

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
