WAIST HEIGHT TURNSTILE TRIPOD TURNSTILE MT158

1. Size: 1400*280*980 mm (can be customized)

2. Lane width: 550 mm (can be customized)

3. Passing speed: 35 person/min

4. Power supply: 110V/220V 50/60Hz

5. Weight: 45 kg

6. Input: Dry Contact Relay

7.  24V solenoid

8. Casing Material: 304 stainless steel and Acrylic top cover

9. Operation way: semi-automatic

CE Certificated, ISO9001 Certificated.

MT158 Waist Height Turnstiles Brochure

Last updated on: February 23rd, 2024 22:14 pm

WAIST HEIGHT TURNSTILE carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on the full height turnstile gate or have any questions, please contact us

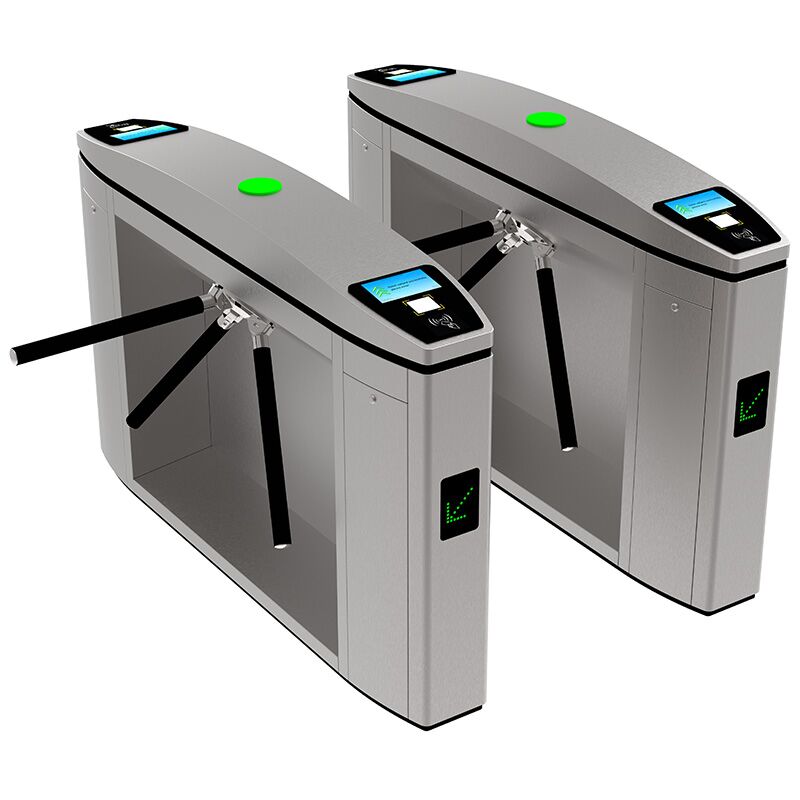

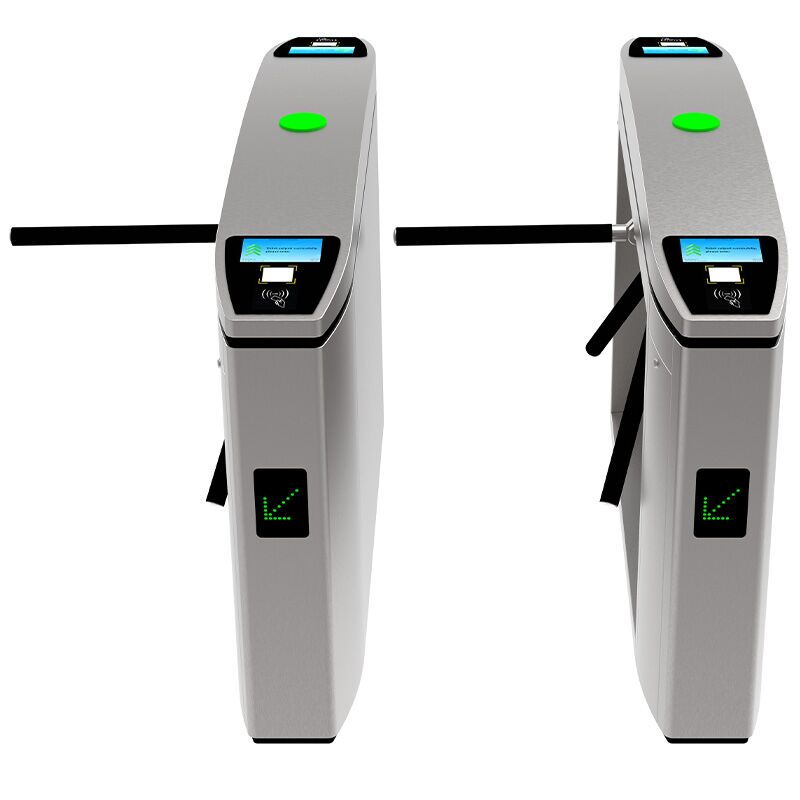

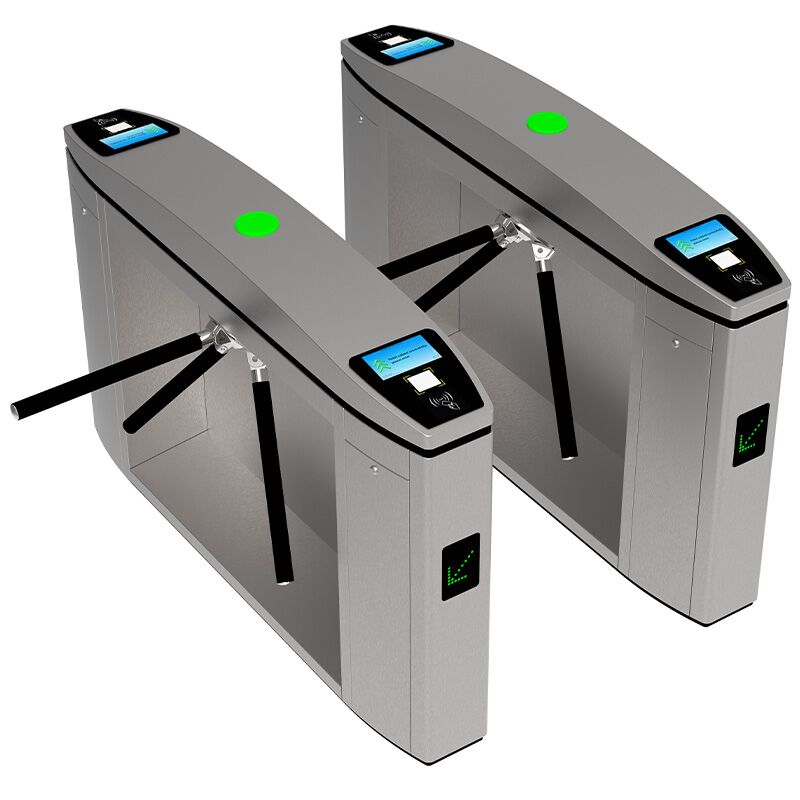

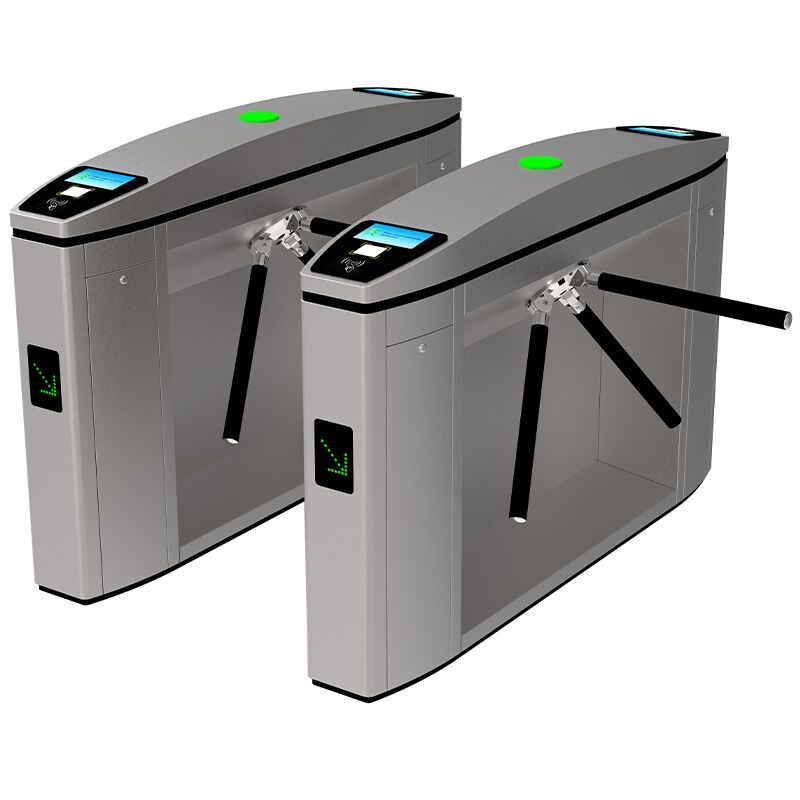

waist height turnstile is a kind of tripod turnstile gate, which height reaches the waist height of normal people. You can also understand that it is equivalent to the tripod turnstile gate. It has various characteristics of a tripod turnstile gate. Waist high turnstiles are made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.

Tripod Turnstile offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.

waist height turnstile 4 waist height turnstile 5
  • Waist height turnstile is a compact and cost-effective entrance solution.
  • The tripod turnstile waist height turnstile has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, and durable.
  • Waist height turnstile can be mounted for both indoor and outdoor locations. The IP rate is 54.
  • It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face recognition, Barcode, IR thermometer).
  • The waist height turnstile gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
  • The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.
  • Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life
  • The mechanism is mold design. All the components are precise.  It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.
  • The design of the tripod turnstile makes only one person pass at one time.
  • Single-directional or Bi-directional is an option.
  • Reliability of the mechanism: 3 million, no-fault
  • LED directional indicator light on top
  • Automatic clock function: if there is an open signal received,  but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.
  • When power is off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
