1. Size: 1630 * 1500 * 2310 mm (can be customized)

2. Lane Width: 650 mm (can be customized)

3. Casing Material: 304 stainless steel or 316 stainless steel

4. Passing speed: 30 person/min

5. Power supply: 110 V/220 V 50/60 Hz

6. Full Height Pedestrian Turnstiles Solenoid: DC24V

7. Gate Open Input: Dry Contact/Relay

8. Logic Voltage: DC24V

9. Drive: Semi-automatic Operated

CE Certificated, ISO9001 Certificated.

MT402 Full Height Pedestrian Turnstiles Brochure

Full Height Turnstile User & Installation Manual

Last updated on: April 27th, 2024 17:17 pm

Full height pedestrian turnstiles carry a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

Full height turnstile is an upgraded product of traditional pedestrian turnstile gates with the best security performance, which is much higher and wider than an ordinary turnstile gate and has obvious security advantages. Full height turnstile can form a closed passage space, and personnel pass orderly by swiping cards and other methods. Full height turnstiles can be unattended and have high application value in some places with strict security measures. It is composed of chassis and 3 or 4 rows of rotating rods. Full height turnstiles are developed on the basis of a tripod turnstile gate. It can be dissuaded or released by rotating 120° or 90° each time.

Full height pedestrian turnstiles are designed to control pedestrians entering and exiting, suitable for indoor and outdoor use.

Generally, full height turnstiles are single-lane or dual-lanes. Three lanes and four lanes can be customized according to customer needs. Full height pedestrian turnstiles can be used in all kinds of building environments and can solve all control problems of pedestrian entrance and exit passages, control whether the gate is locked or unlocked at any time, and up to 20 signal interfaces to facilitate users to expand special functions.

Full height turnstiles are made of SUS304 stainless steel or 316 stainless steel. It adopts the most advanced drive control technology, which can change the design in a large range to meet the various requirements of different styles of modern buildings for intelligent pedestrian access control systems.

Full height turnstile is suitable for unattended and high-security requirements occasions, as well as some outdoor occasions with a harsh environment. Full height turnstile is generally used in more strict control areas, such as military management areas, chemical plants, construction sites, prisons, banks, troops, and other states highly confidential places, through face recognition and comparison, Also electronic Capture system, truly and effectively a record of pedestrian passage, improve the safety factor.

In some specific places, such as some special passages in the station, or places with strict security requirements, such as prisons or gymnasiums, general turnstile gates can not meet the security requirements. At this time, full height pedestrian turnstiles will be used for access control management, because full height pedestrian turnstiles are the most durable, robust, and high-level security access control equipment, it is suitable for unattended places with high-security requirements, as well as some outdoor places with harsh environments.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

full height pedestrian turnstiles 4 full height pedestrian turnstiles 5

Using the standard electrical interface, compatible with ID/IC card, fingerprint, face recognition, an infrared detector, temperature controller, Barcode/QR code, phone app, ESD system, visitor system, etc.

Full height turnstile is integrated with a mechanism, electric and microcontroller, and various kinds of identification technologies, compatible with IC, ID, bar code, fingerprint reader, and so on to provide intelligent control and management to flow control.

    • Full Height Pedestrian Turnstiles are often used for high-security access control solutions.
    • The full height pedestrian turnstiles are made of 304 stainless steel which is anti-rust, robust, and rigid.
    • Full Height Pedestrian Turnstiles are ideal for both indoor and outdoor settings.
    • Full height security turnstiles can be integrated with any kind of access controller system (e.g.: RFID device, Fingerprint, and Biometric device).
    • The turnstile gate will open automatically when the power is off, It is very safe, to meet fire-control passage requirements.
    • With the anti-reverse function, stop reversed direction.
    • The mechanism is equipped with an automatically regulated hydraulic buffer device. No noise and impact when running.
    • Self-restore function, when power is on, the system will restart automatically.
    • Reliability of the mechanism: 5 million, no-fault
    • Dual-bearing devices, keep the gate in balance when there is an external force.
    • Single directional or Bi-directional is optional.
    • With LED indicator light.
    • Full height security turnstiles can be customized to meet the different requirements for different places.
    • Through the control board’s built-in small keyboard, with programmable devices to manage operating status.

Full height turnstiles can be used indoors and outdoors. It has good waterproof performance. As the best full height turnstile in Malaysia, It is widely used for train stations, school libraries, government facilities, amusement parks, prisons, football stadiums, apartments, museums, and factory, etc.

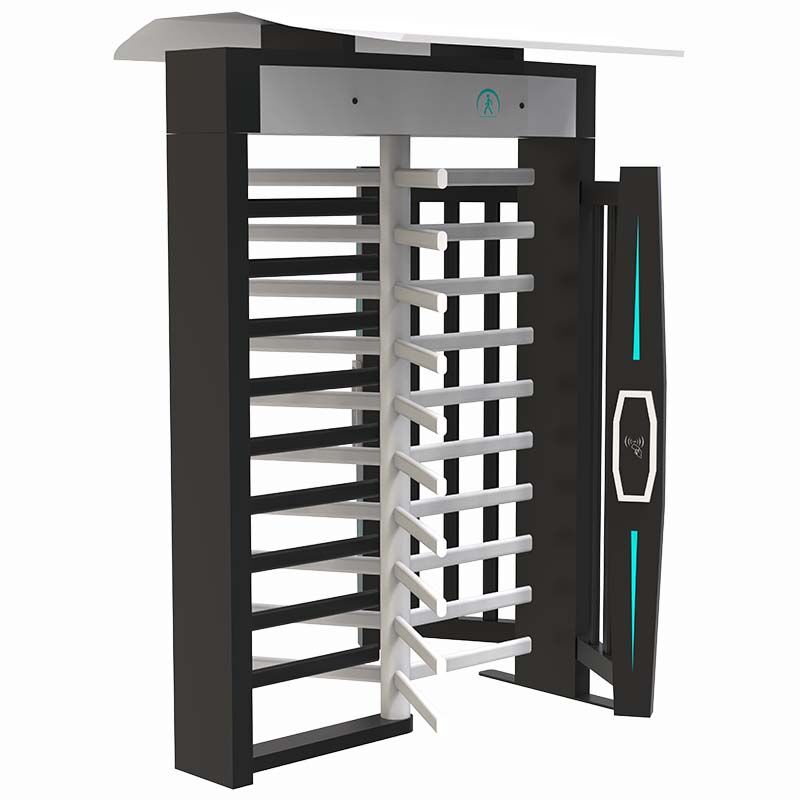

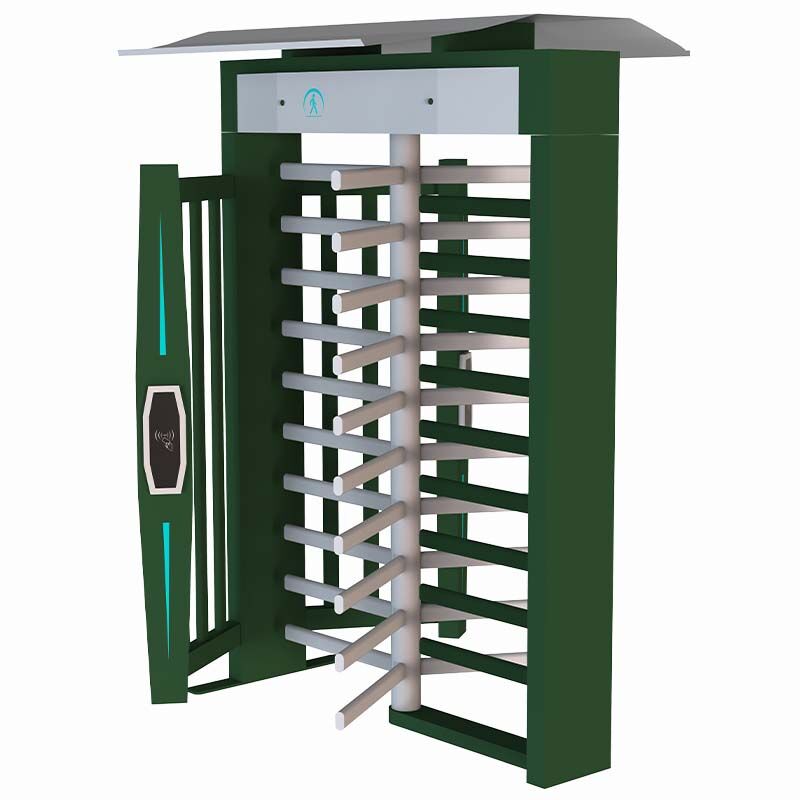

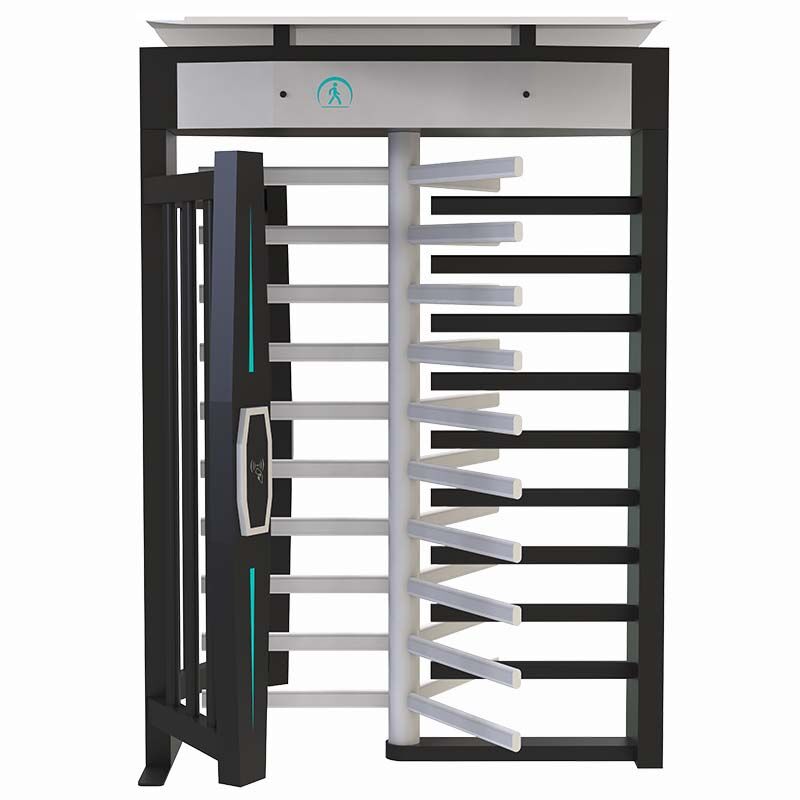

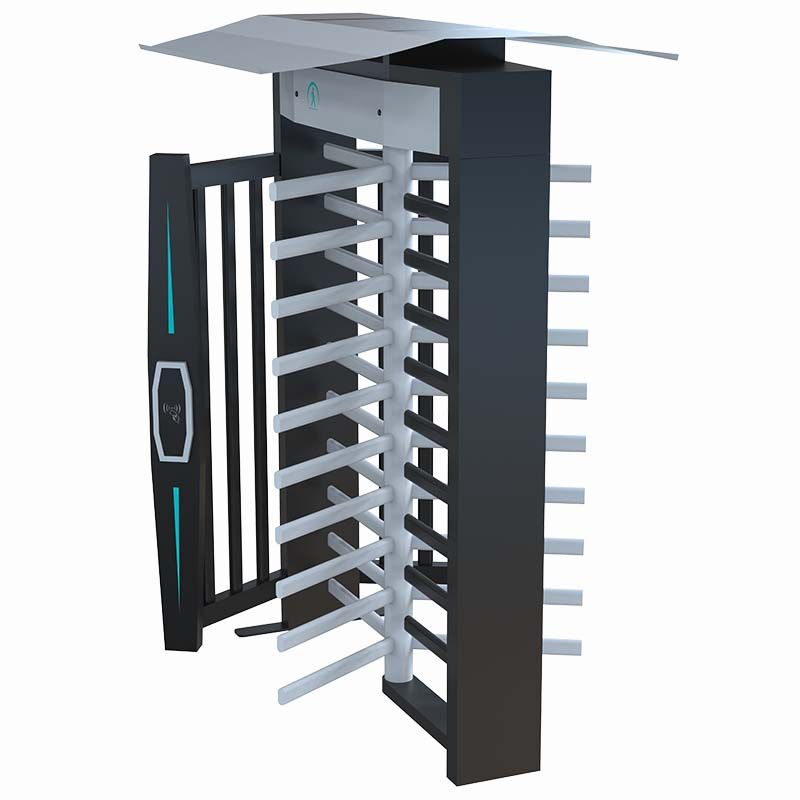

This full height turnstile is a single full height turnstile, what is a single full height turnstile? different from a double full height turnstile, a single full height turnstile is composed of one control mechanism and one stainless steel blocking rod, which has only one channel. We can provide the entire security access control solution, please check the video:
