Bi-directional MANUAL SWING PEDESTRIAN TURNSTILE GATE M6 carries a 2 years warranty and durable maintenance and repair support.
We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

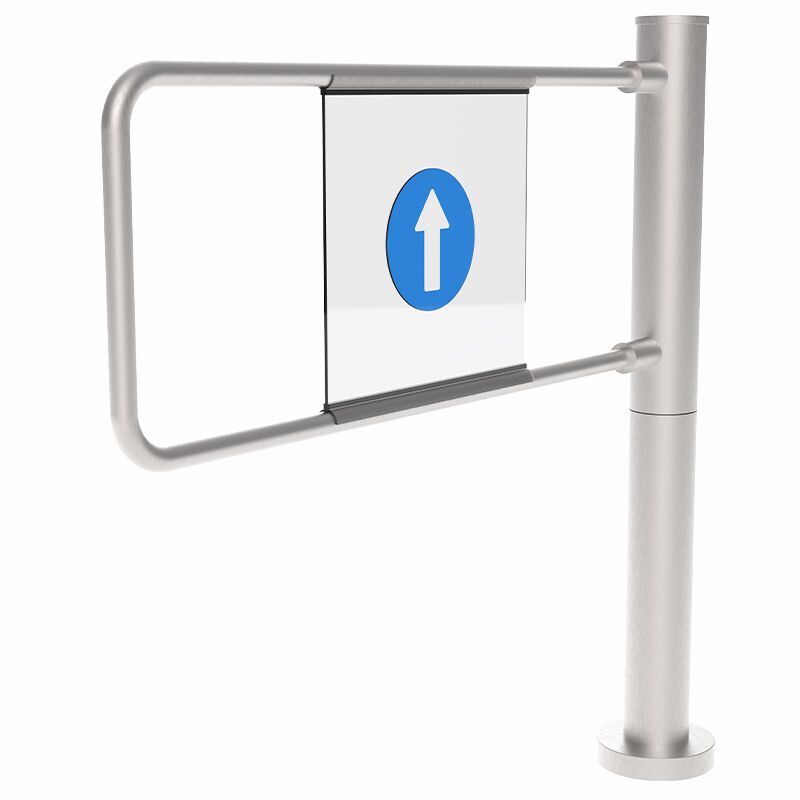

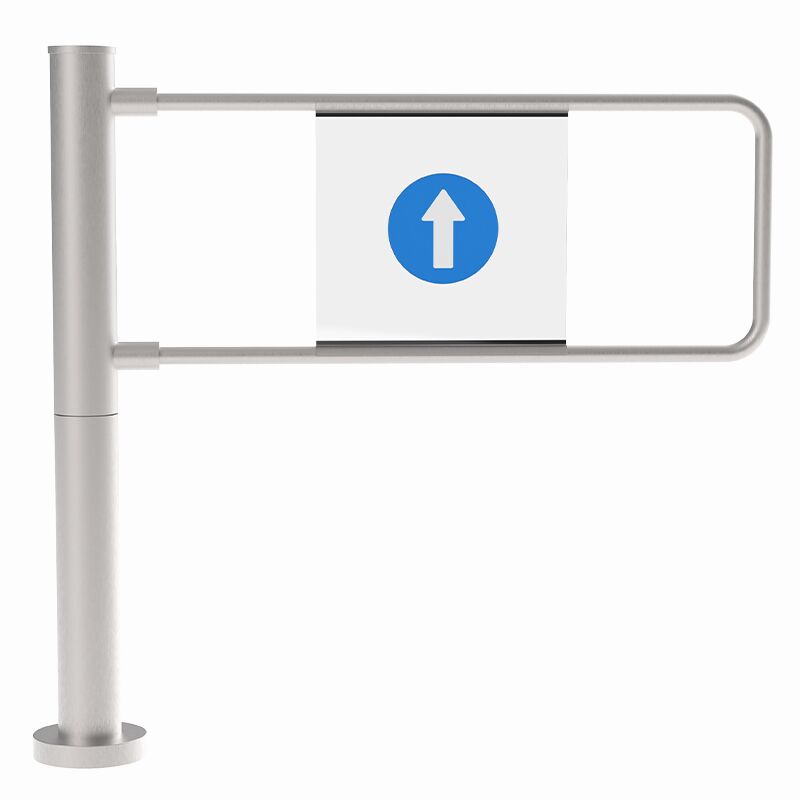

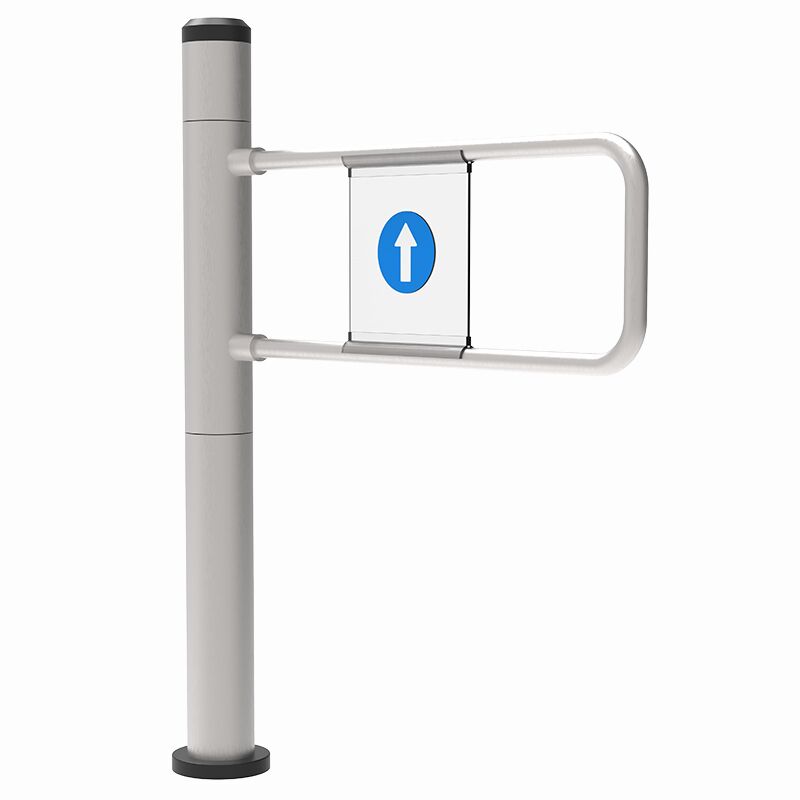

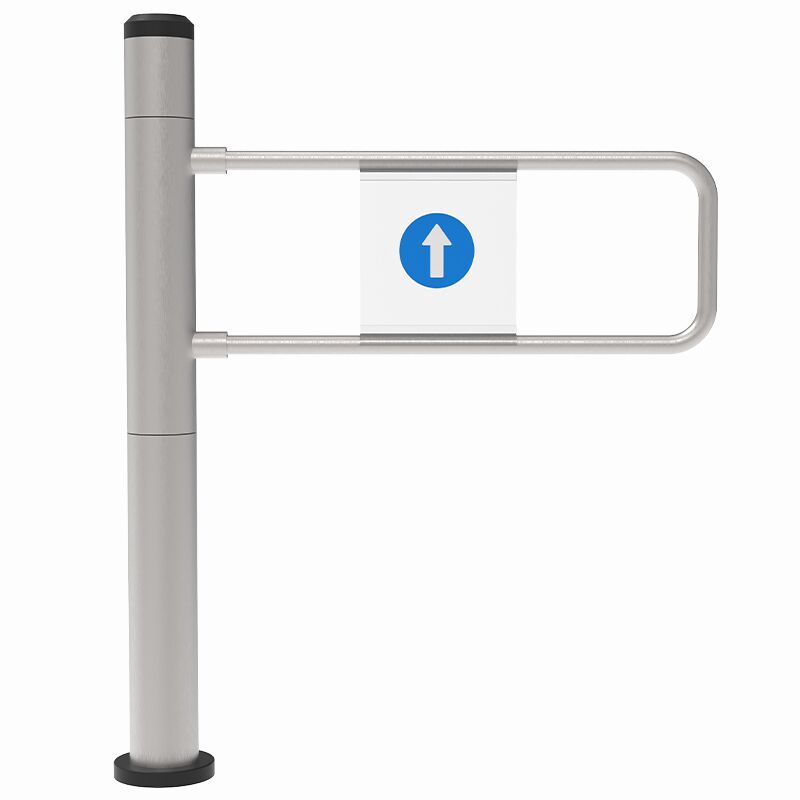

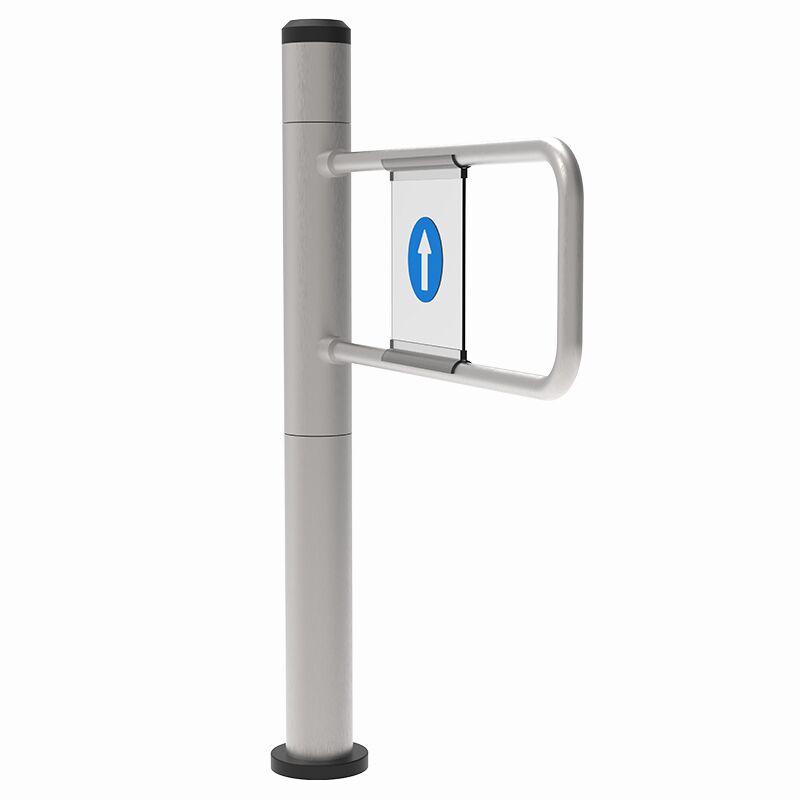

A manual swing pedestrian turnstile gate is a simple, low-cost swing turnstile that can be manually controlled and used to control one-way or two-way traffic. It has a built-in high-performance spring to control the direction of operation. Manually push the arm, the door is easy to open, and the spring will automatically close the door.

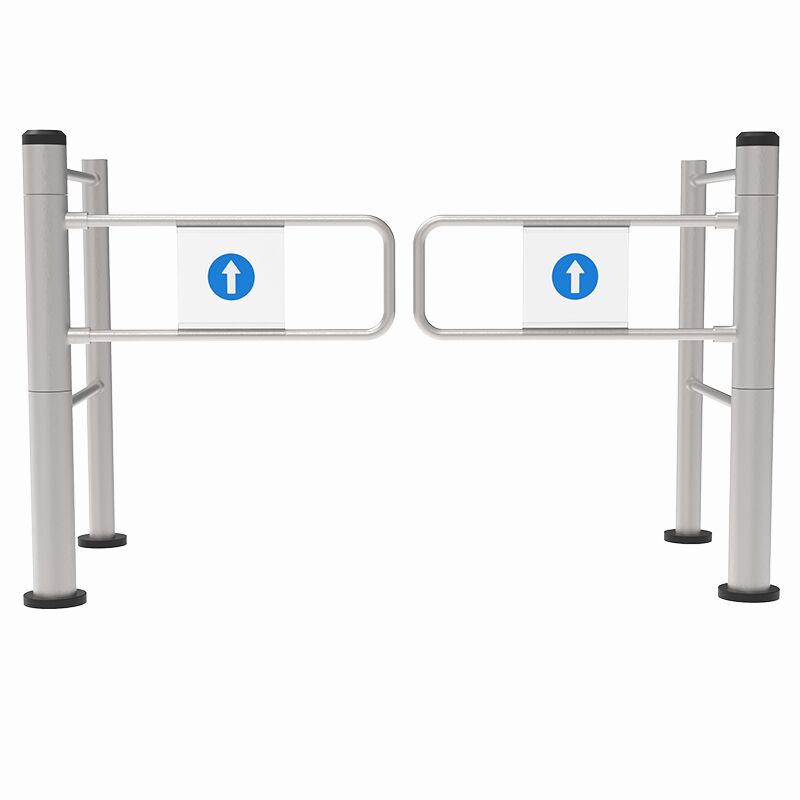

The manual swing pedestrian turnstile gate can be set for one-way or two-way traffic, and can work without connecting to a power source. The 900mm swing arm is suitable for any disabled person, those carrying large luggage, or larger cargo. The pendulum can also form an ultra-wide channel of 1800mm. Suitable for indoor and outdoor entrances in supermarkets, warehouses, etc.
The manual swing pedestrian turnstile gate is made of stainless steel sheet, which is rust-proof and durable. The equipment is simple to use and does not need too much maintenance. It can be used in outdoor or indoor working environments. It is applicable to the entrance and exit channels that control the flow of people in one or two directions.
The manual swing pedestrian turnstile gate is mainly used in supermarkets, department stores, airports, stations, docks, factories, enterprises and institutions, and other commercial places with one-way control traffic, mainly for diversion. Due to the large flow of people in commercial places and non-fixed personnel, it is impossible to use card swiping, face recognition, etc. to pass, which not only reduces the efficiency of traffic but also fails to divert traffic. The main purpose of setting a manual swing pedestrian turnstile gate is to limit the passage of people at the main entrance and exit, divert the inflow and outflow directions, and also allow free exit in emergency situations.
Considering the occasional situation where entry and exit are prohibited, we built a screw lock. When it is necessary to restrict the entry and exit of personnel, tighten the screw, the spring will be braked, and the entry and exit will be blocked. The facility can adjust easily according to the situation.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.

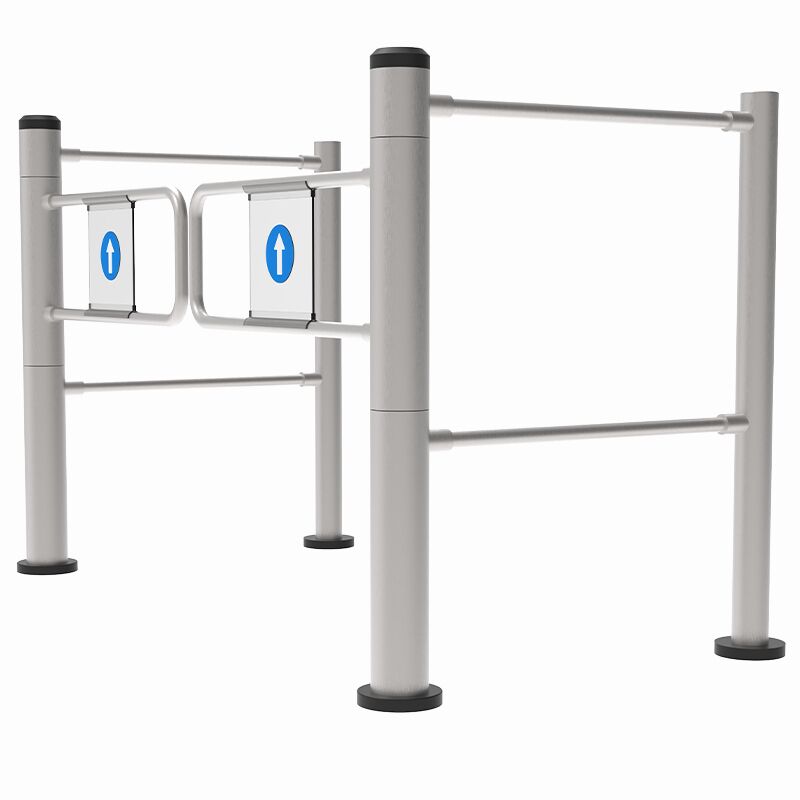

The manual swing pedestrian turnstile gate is widely used for supermarket warehouse pedestrian access control. The fence can be added on both sides to allow free access. It is min size, which can save space. It can also be used as an emergency exit. Mairsturnstile offers the best quality Swing turnstile gate at the cheapest price online. Professional turnstile manufacturer Mairs offers the cheapest supermarket swing gate turnstile barrier gate.
This manual swing pedestrian turnstile gate offers an extremely effective yet economical access security solution. As reliable as it is practical, the manual swing pedestrian turnstile gate is designed to be used in areas to positively indicate the entrance/exit flow and is particularly suited where maximum security is not required. The manual gate is designed to be open through 90 degrees and return to the closed position under spring tension.
A standard feature of these manual gates is the ability to be opened in the reverse direction by firm body pressure to give an emergency exit facility. A simple adjustment negates this facility when used as an exit. They can be used for making entrances and exits and pedestrian passageways, they can partition and block off rooms, politely direct customers from the entrance to the cash desk, and provide you with a means of orientation amidst the wide range of products you stock.
Size: 89*89*1050mm(can be customized)
Power Supply: no need;
Operating Temperature: -40℃-70℃
Relative Humidity: ≤95%, No Condensation
Passage Width: standard 600mm max 900mm
Passage direction: Single directional
Pass rate: 25-30 persons/minute
Operating control: High-tension spring
Power input: None
Manufacturing Technique: CNC laser cutting
Working environment: indoor and outdoor(added the rain shed )
Material: SUS 304 Stainless steel(thickness is no less than 1.3mm)

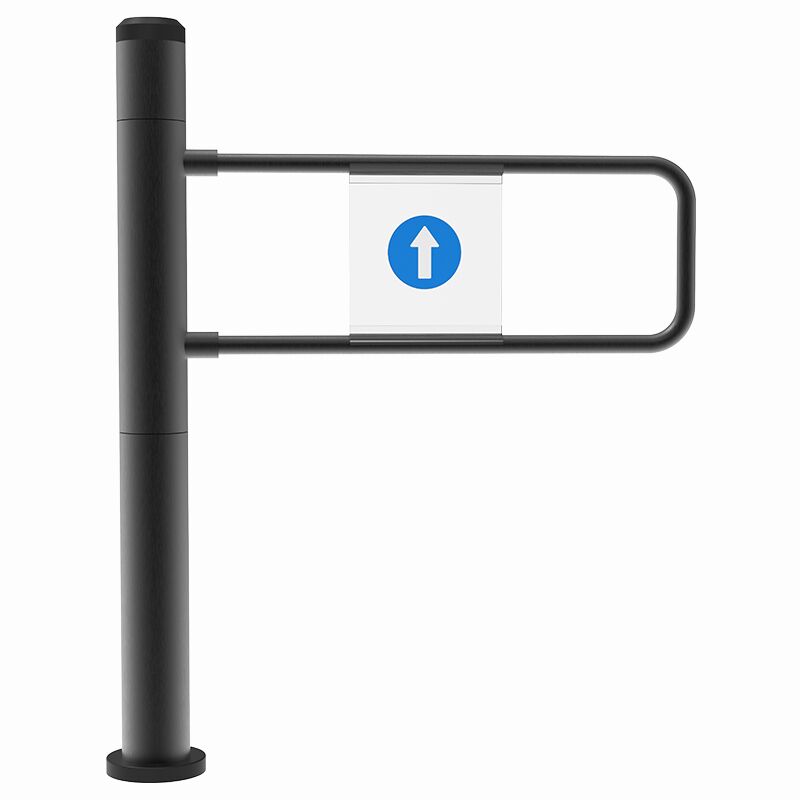

Colour: SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like
Operation Site: Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
