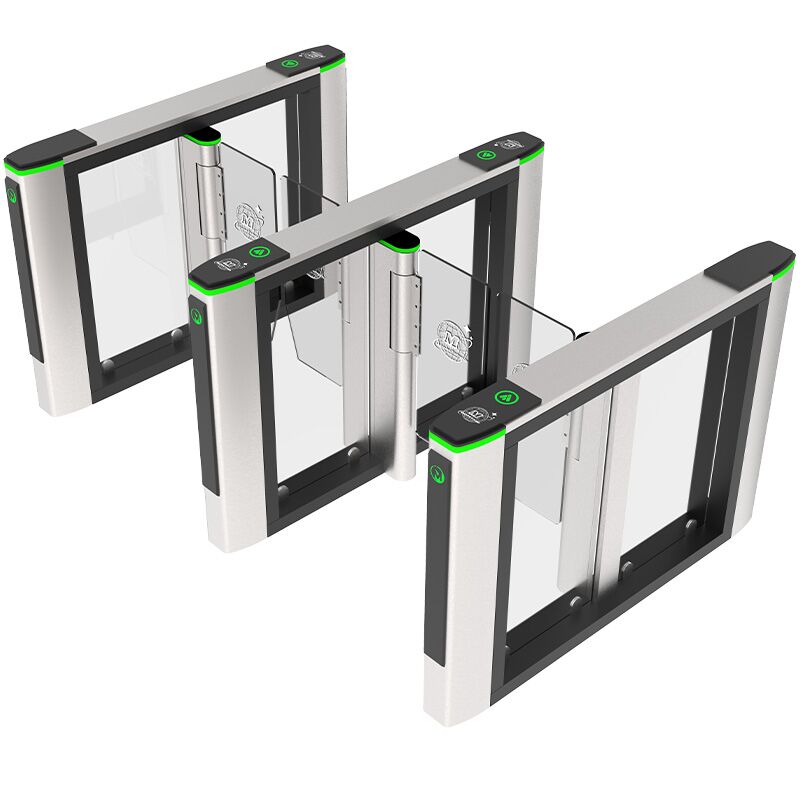

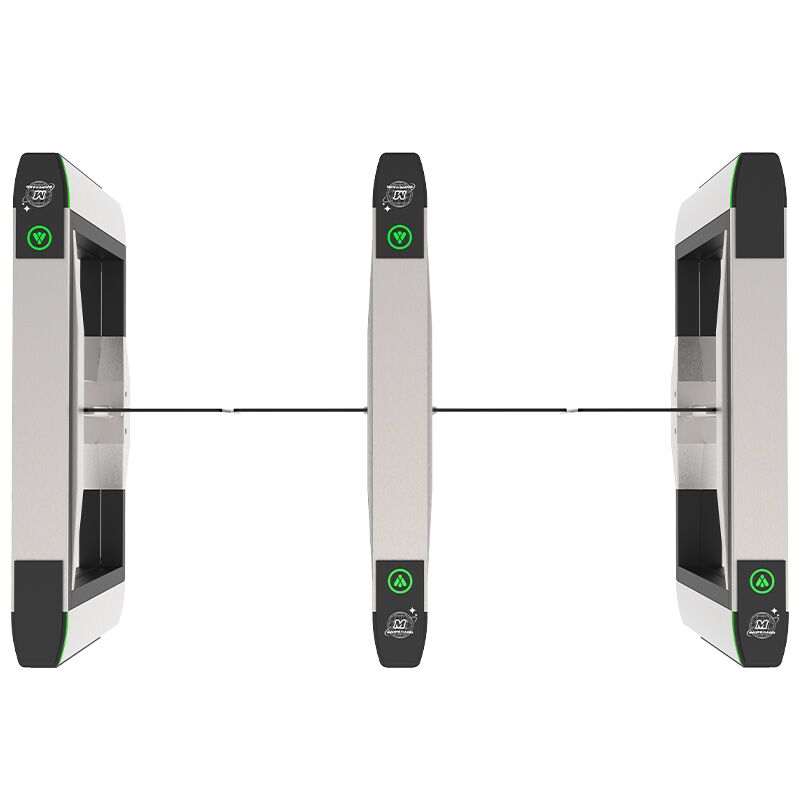

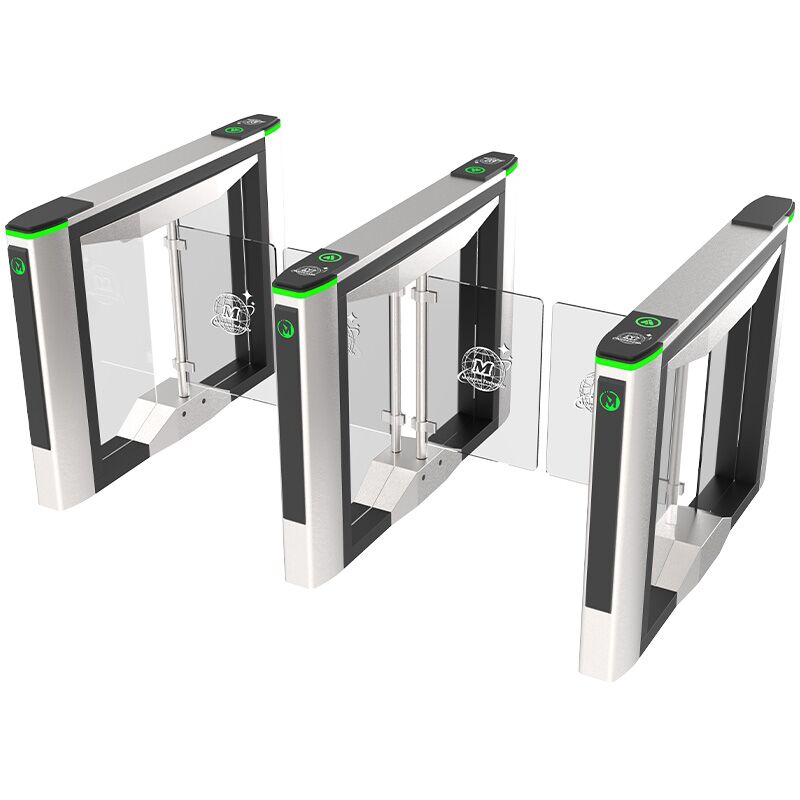

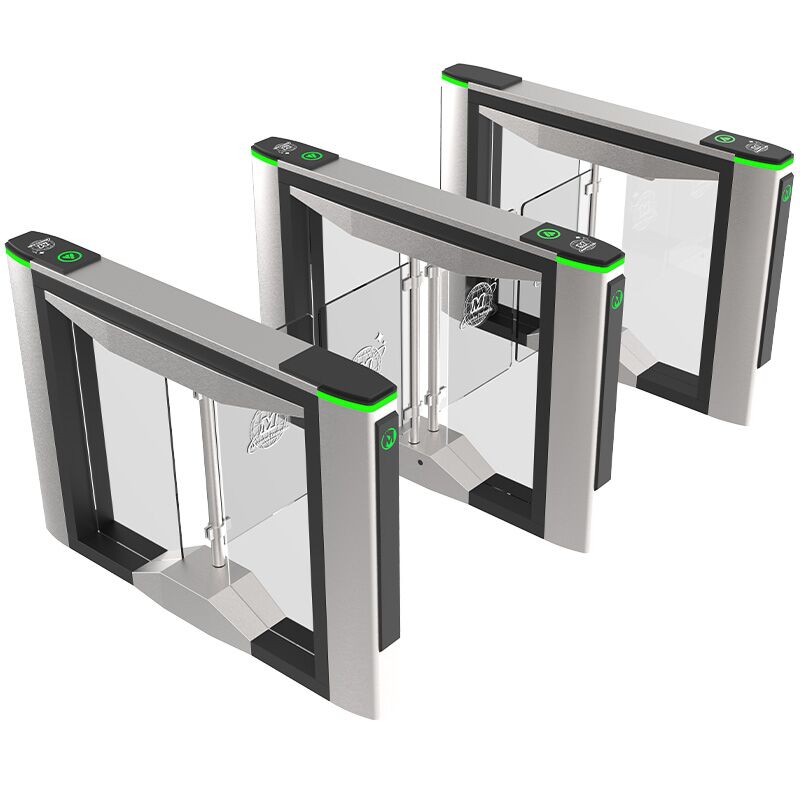

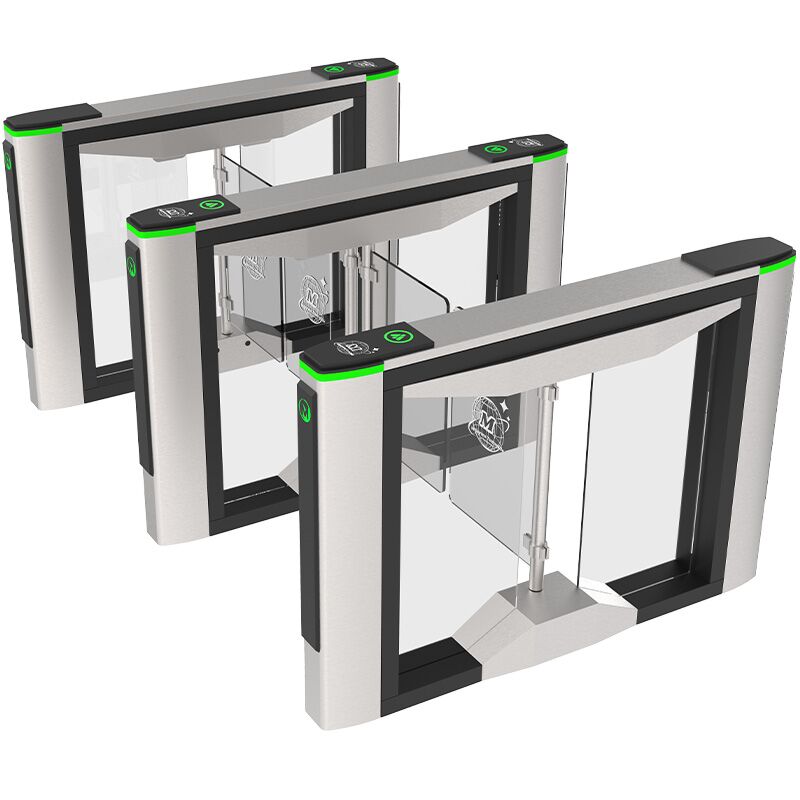

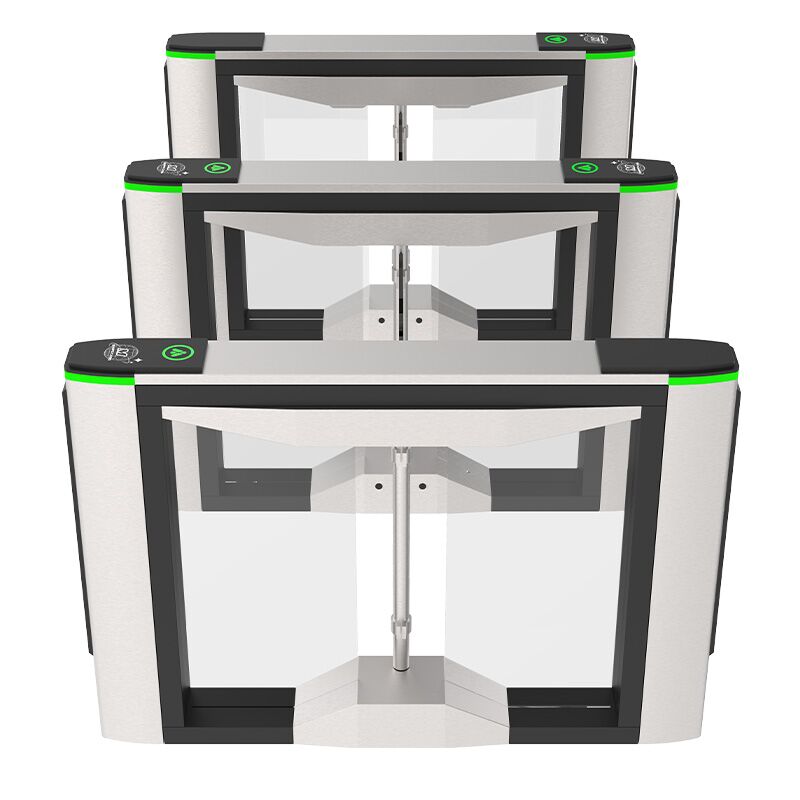

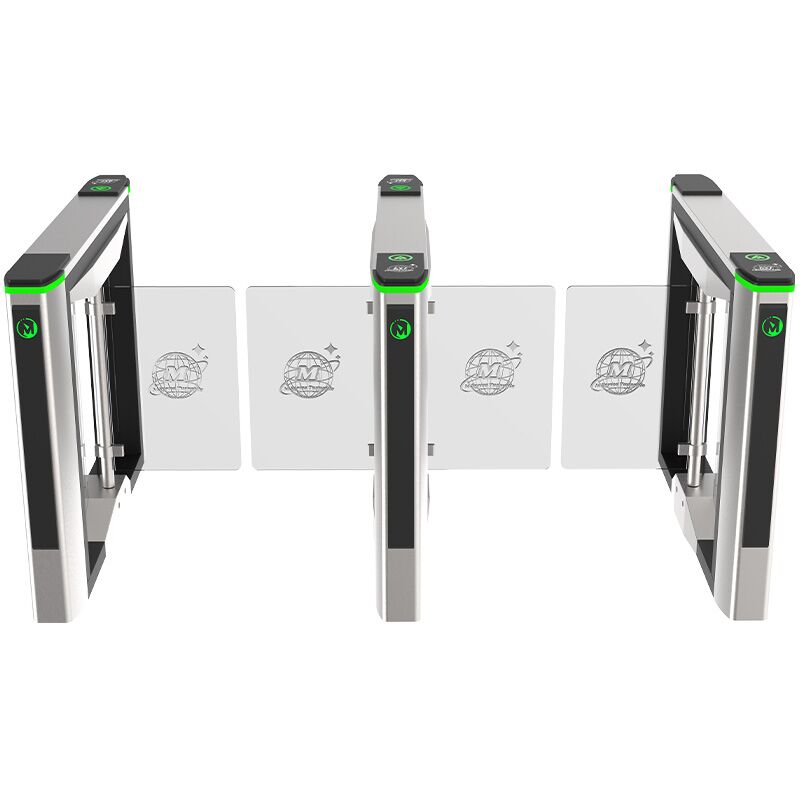

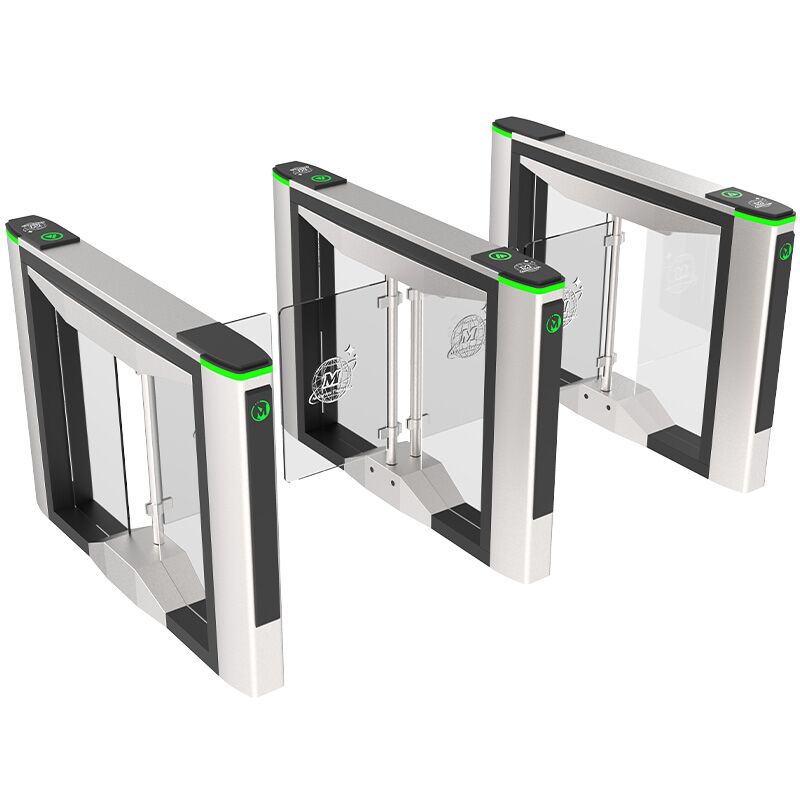

M series swing turnstile MS100

1. Size: 1420*180*990 mm (can be customized)

2. Lane Width: 600 mm (Standard)  900 mm( Handicapped)

3. Arms material: Acrylic

4. Passing speed: 40 person/min

5. Power supply: 110 V/220 V 50/60 Hz

6. Brushless motor

7. Gate Open Signal: Dry Contact/ Relay

8. Glass turnstile Driving Motor: 24 V

9. Size and material thickness can be customized

CE Certificated, ISO9001 Certificated.

Last updated on: December 5th, 2023 10:44 am

M series swing turnstile MS100 carry a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on the full height turnstile gate or have any questions, please contact us

This M series swing turnstile MS100 is a slim swing turnstile gate. The standard relay and RS485 interface make it is compatible with all access control systems, such as the RFID card system, Face recognition, temperature checker system, Coin operated system, Bar code System, and ESD Tester Access Control. Swing turnstile gate is a compact and cost-effective entrance solution.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

m series swing turnstile 8 m series swing turnstile 9

All models of swing optical turnstiles, speed gates can be customized according to your actual requirements. Some models of swing turnstile gate and sliding gate turnstile can be 900mm passage width also. Access Control Pedestrian Security Turnstile Gates M series swing turnstile MS100.

  • In case of emergency, cut off the power, the Slim swing glass turnstiles will open automatically to allow free passage which complies with fire safety requirements. But it has to come with a battery. As for export, the battery is sensitive, we can use the capacitor to replace
  • M series swing turnstile MS100 is suitable for luxury and high-end entrance solutions.
  • The whole system runs smoothly, with low noise, and high speed.
  • Alarm function, if there is an illegal intrusion or reverse intrusion, the gate will alarm and the door will lock.
  • There is a total of 5 pairs of infrared sensors The middle sensor is to prevent pinch pedestrians.
  • Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
  • LED indicator. Red cross and green arrow. There are also LED indicators on the front post.  The LED light can be added to the arms.
  • Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency.
  • Automatic reset function. If the people did not pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically
  • Anti-bump, Anti clamp, The optical turnstiles come with a brushless motor. During operation, if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians especially children from bumping, clipping, striking, etc.

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
