This high-quality Servo Motor Security Speed Gates Turnstile MT-A304 carries a 2 years warranty and durable maintenance and repair support.
Mairs can customize speed gate turnstile and security speed turnstiles according to your requirements.
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

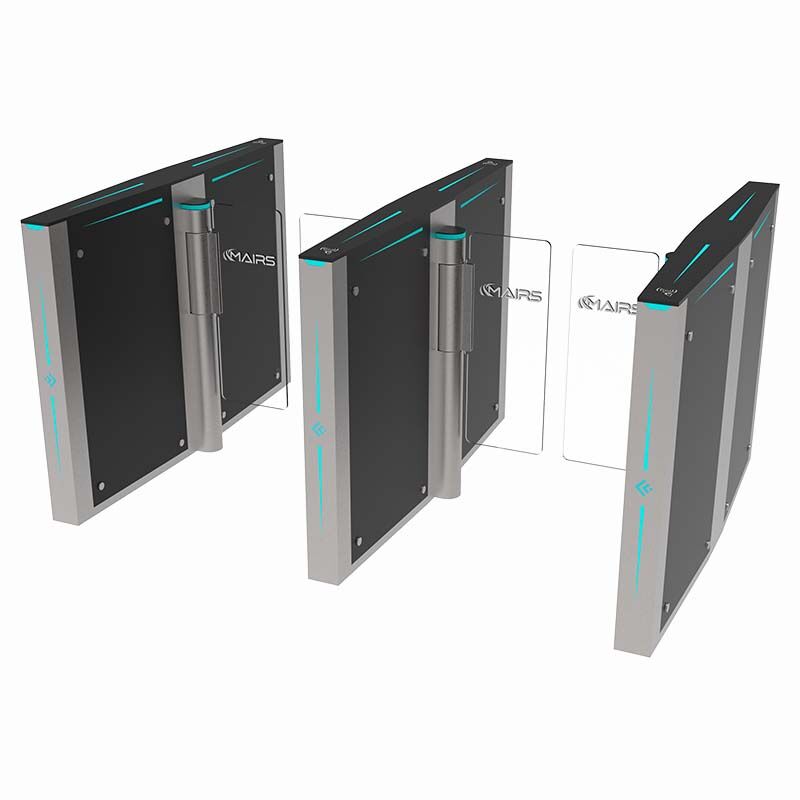

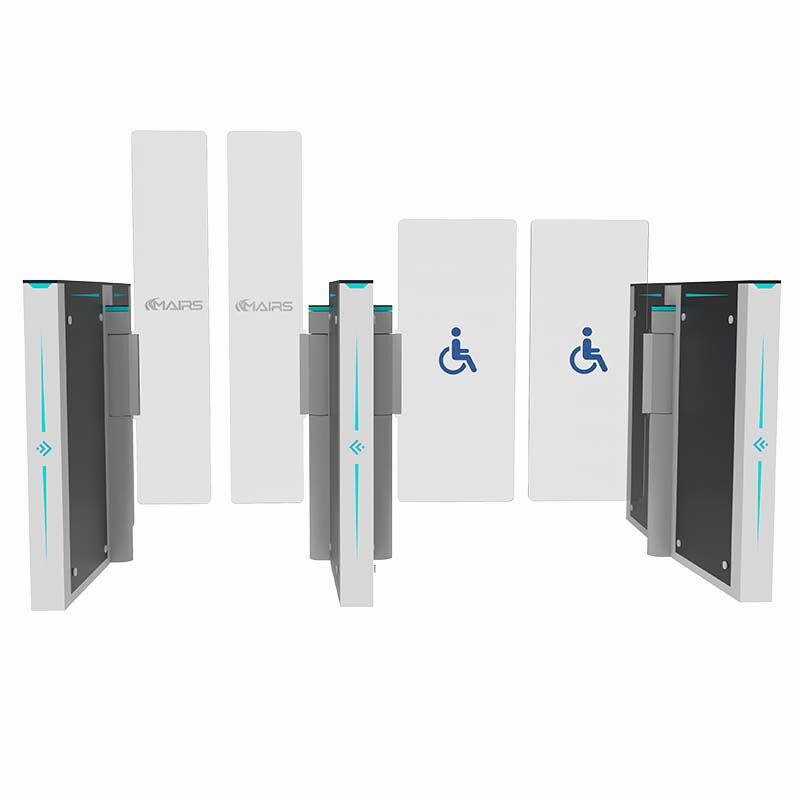

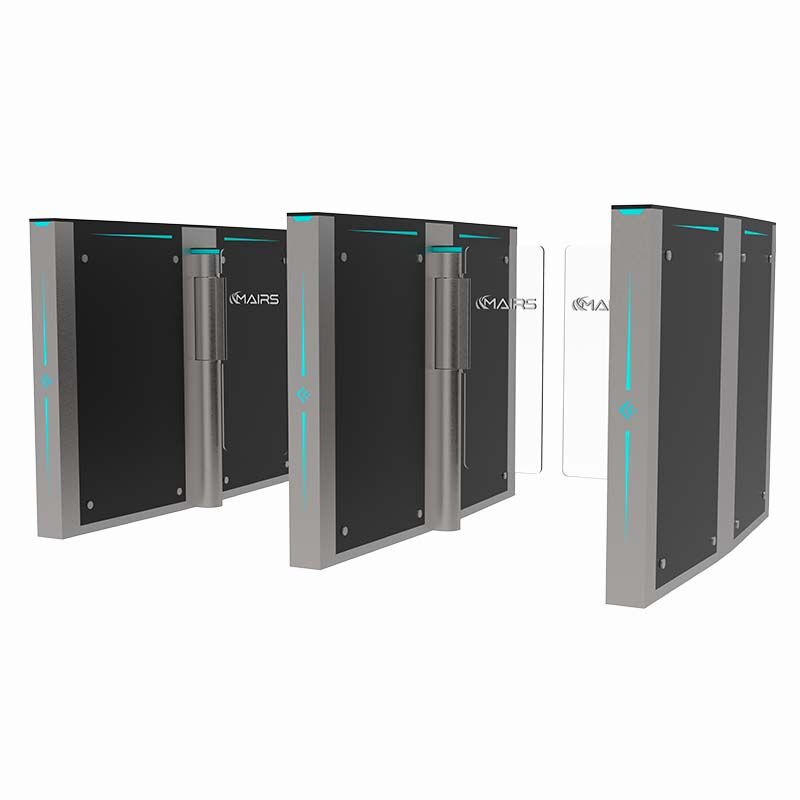

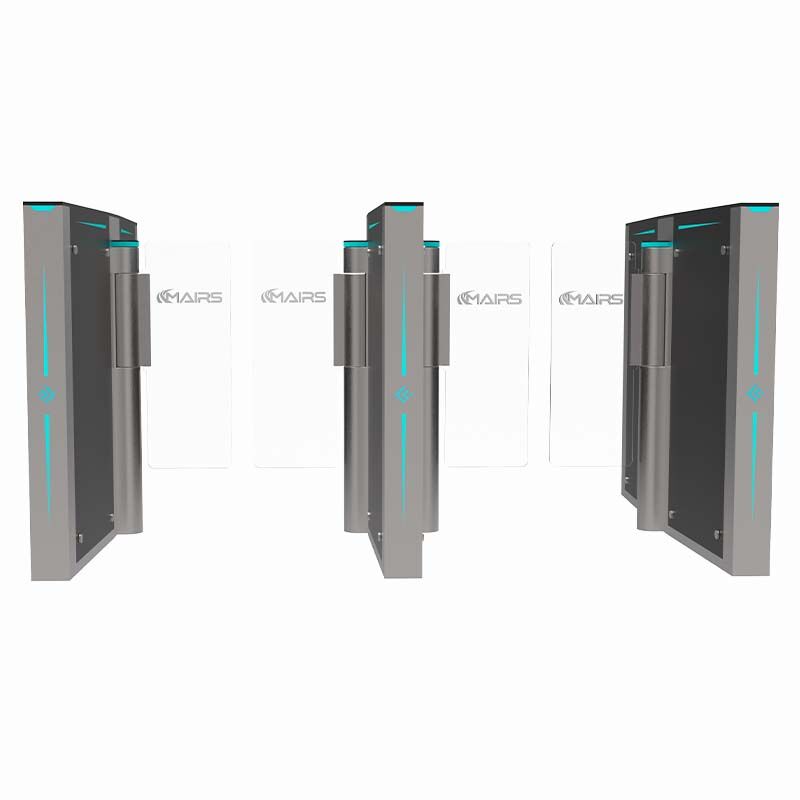

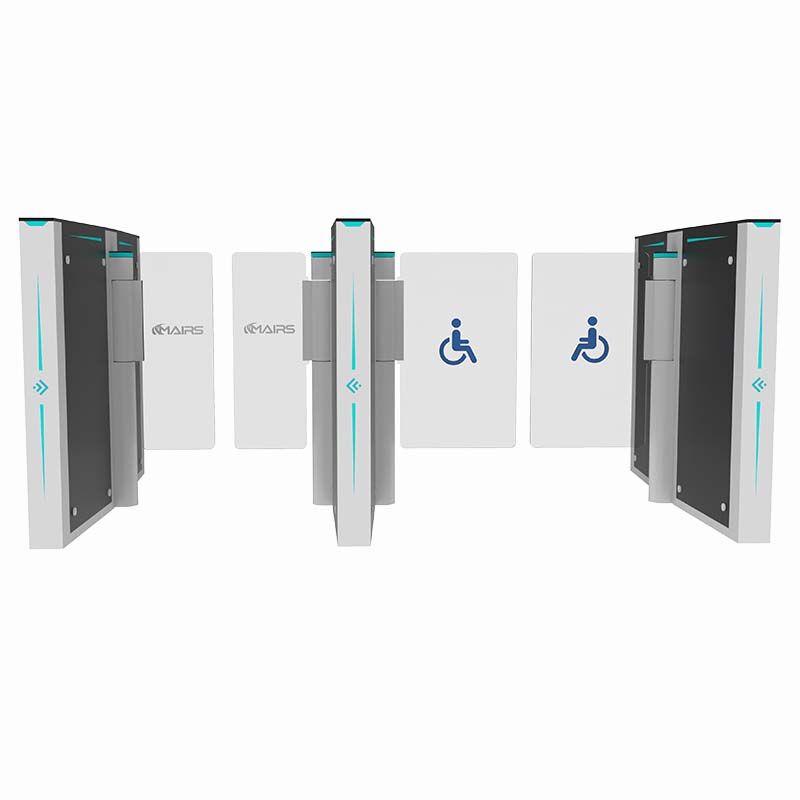

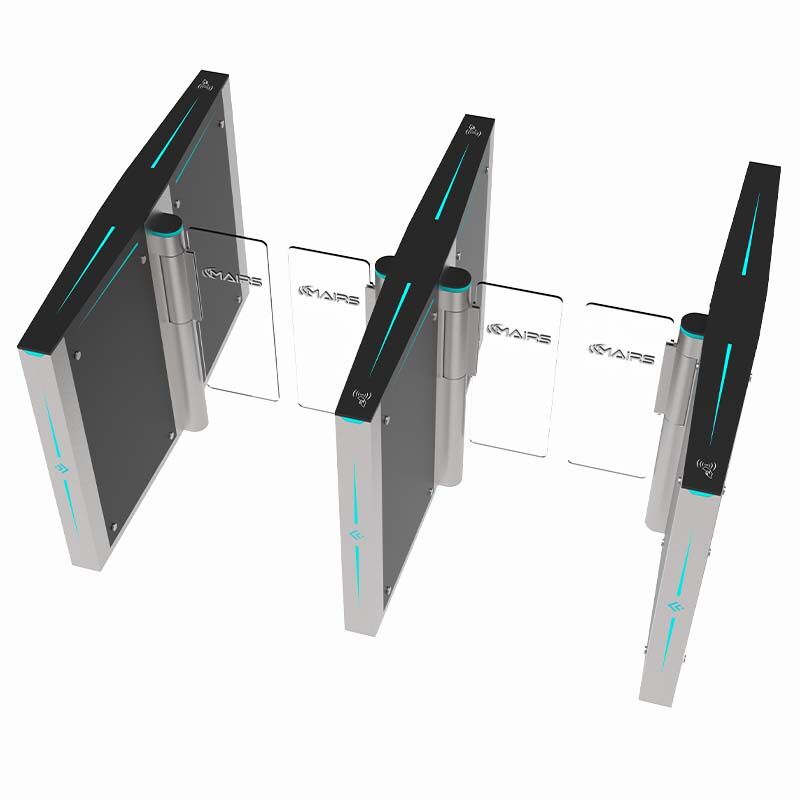

Servo Motor Security Speed Gates Turnstile Automatic Slim Swing barrier gate, Servo Motor Security Speed Gates Turnstile for lobbies.
Security Speed Gates Turnstile is a high-end intelligent swing turnstile security speed gates product from Mairs, which can fully detect the passing situation of the human body. This speed gates body material is 304 stainless steel which is anti-rust and durable and highly resistant.
We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.
These Servo Motor Security Speed Gates can be compatible with IC cards, ID cards, barcode cards, fingerprint card readers, face recognition cameras, and other biometric devices, providing civilized and orderly access for staff; Effectively manage the access rights of employees. It can be widely used in lobbies of buildings, stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and other places that need intelligent access control management.
Technical Parameter:
1. Size: 1500*120*980mm
2. Material: Cap1.5 mm+body 1.2mm Brushed SUS 304
3. Arm material: 10 mm Acrylic(tempered glass option)
4. Pass Width: Standard 600 mm max 1200 mm（arm hollowed out more than 900mm)
5. Arm Height: 1500 mm max(within 900 mm width)
6. Passage direction Single directional/Bi-directional
7. Pass rate: 30-35 persons/minute
8. Operating time: 0.2 seconds
9. Power input: AC100-240V,50/60HZ
10. Working voltage: 24V
11. Working humidity: 30%~95%
12. Working temperature: -40℃~+70℃
13. Working environment: Indoor
14. Input interface: RS485, Dry contact
15. Mechanism: Servo Brushless motor 120W
16. Infrared sensor: 6 pairs
17. MCBF: 5,000,000 Cycles
18. Application: Office Building, Hotels, Government Halls, etc
We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
