Sale!

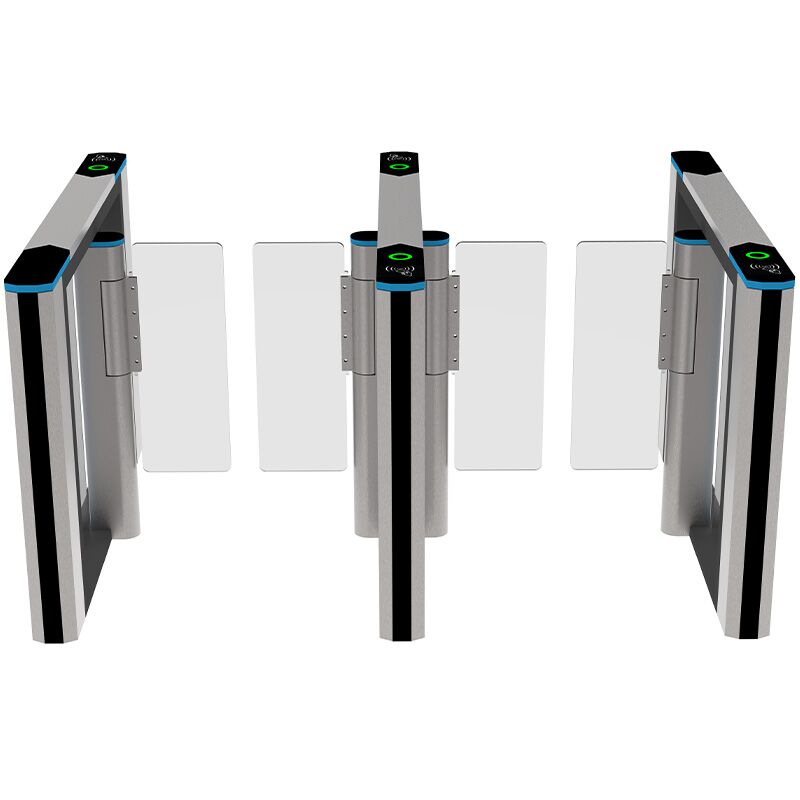

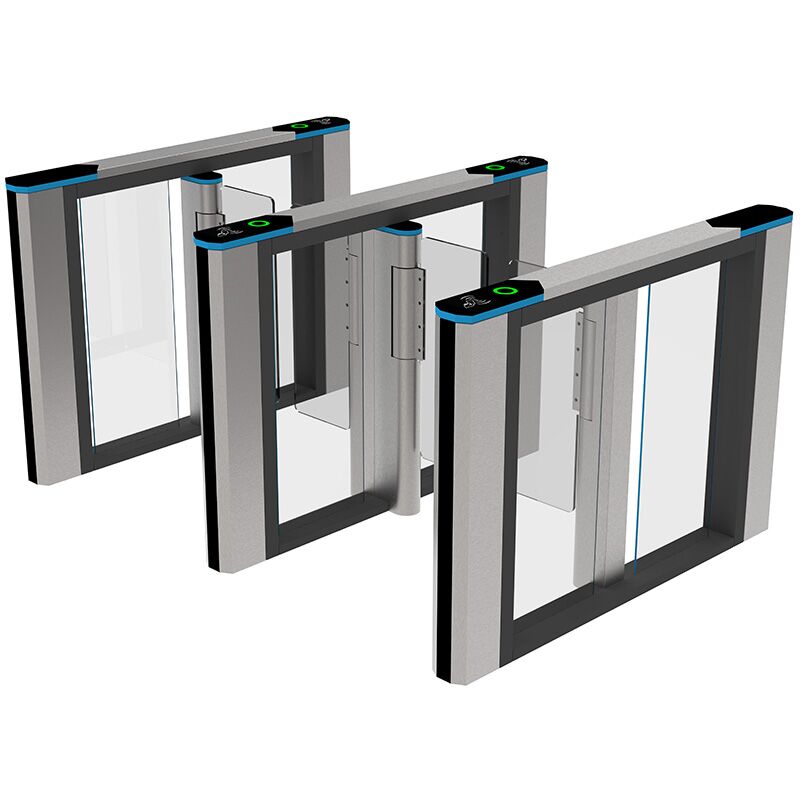

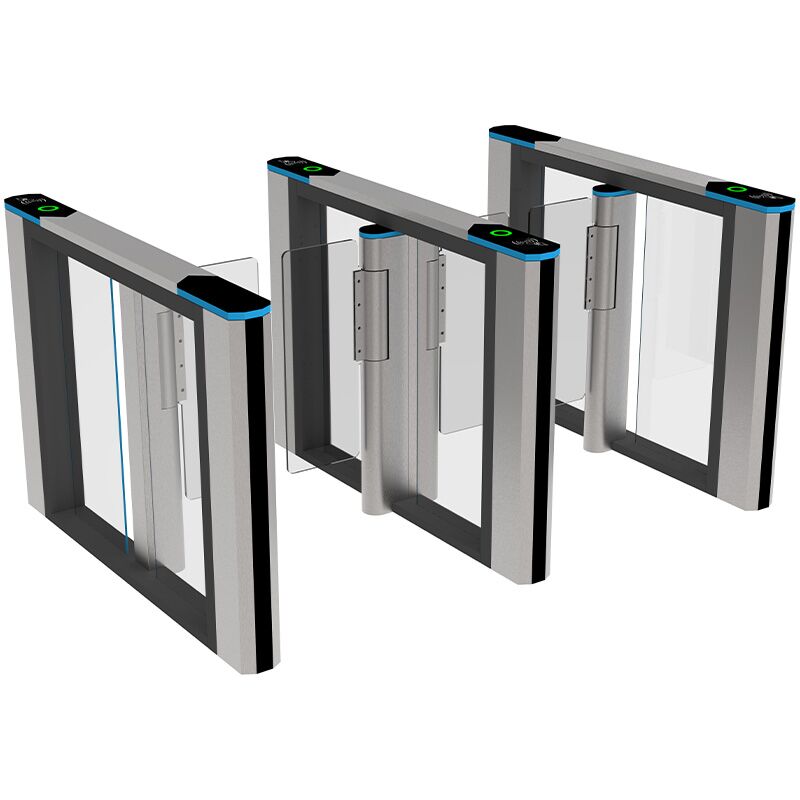

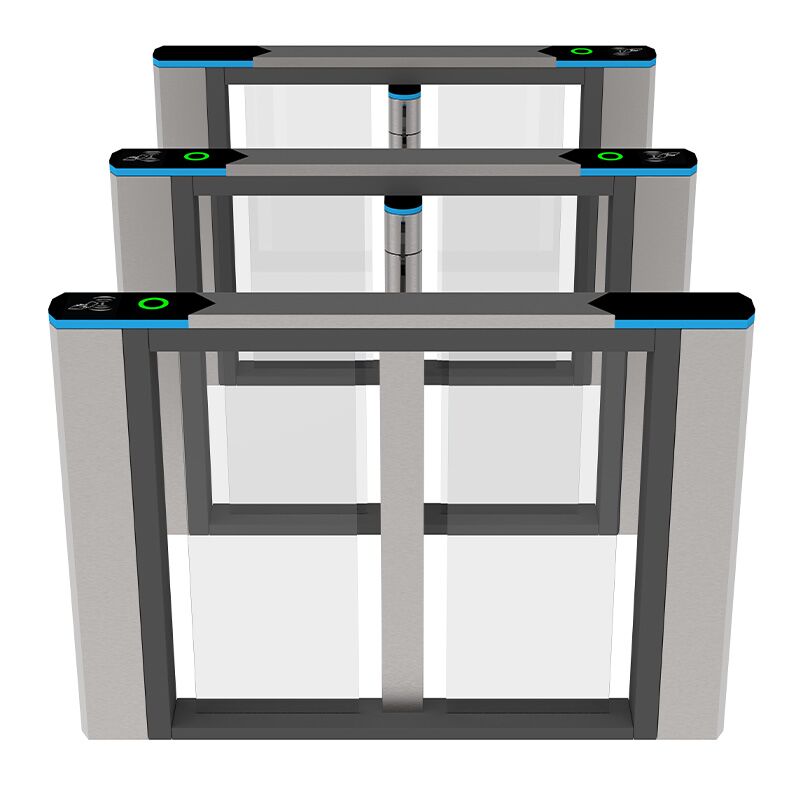

Servo Motor Security Speed Gate Turnstile MT-A309

$1,750.00

1. Size: 1500*100*980mm
2. Material: 15mm SUS 304 Hairline 400#+Top Cover black marble
3. Arm material: 10mm Acrylic
4. Pass Width: Standard 600mm max 1300mm(arm hollowed out)
5. Arm Height: 1500mm max(900mm access width)
6. Passage direction  Single directional/Bi-directional
7. Pass rate: 30-35 persons/minute
8. Operating time: 0.2 seconds

Last updated on: July 14th, 2021 15:32 pm

This high-quality Servo Motor Security Speed Gate Turnstile MT-A309 carries a 2 years warranty and durable maintenance and repair support.

Mairs can customize speed gates speed lanes turnstiles according to your requirements.

Servo Motor Security Speed Gate Turnstile Automatic Slim Fast Speed Gates Swing barrier gate, speed gates  Servo Motor Security Speed Gate Turnstile for lobbies.

The Servo Motor Security Speed Gate Turnstile MT-A309 is a high-end intelligent swing turnstile security speed gates product from Mairs, which can fully detect the passing situation of the human body.

This security speed gates body material is 304 stainless steel which is anti-rust and durable and high resistance.

This Servo Motor Security Speed Gates can be compatible with IC card, ID card, barcode card, and fingerprint card reader, face recognition camera, and other biometric devices, providing civilized and orderly access for staff; Effectively manage the access rights of employees. It can be widely used in lobbies of buildings, stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, enterprises, and other places that need intelligent access control management.

Technical Parameter:

1. Size: 1500*100*980mm
2. Material: 15mm SUS 304 Hairline 400#+Top Cover black marble
3. Arm material: 10mm Acrylic
4. Pass Width: Standard 600mm max 1300mm(arm hollowed out)
5. Arm Height: 1500mm max(900mm access width)
6. Passage direction  Single directional/Bi-directional
7. Pass rate: 30-35 persons/minute
8. Operating time: 0.2 seconds
9. Power input: AC100-240V,50/60HZ
10. Working voltage: 24V
11. Working humidity: 30%~95%
12. Working temperature: -40℃~+70℃
13. Working environment: Indoor
14. Input interface: RS485, Dry contact
15. Mechanism: Servo Brushless motor 120W
16. Infrared sensor: 6 pairs
17. MCBF: 5,000,000 Cycles
18. Application: Office Building, Hotels, Government Halls, etc



Access control system with turnstile gate - Mairsturnstile

Turnstile gate packaging from Mairsturnstile
