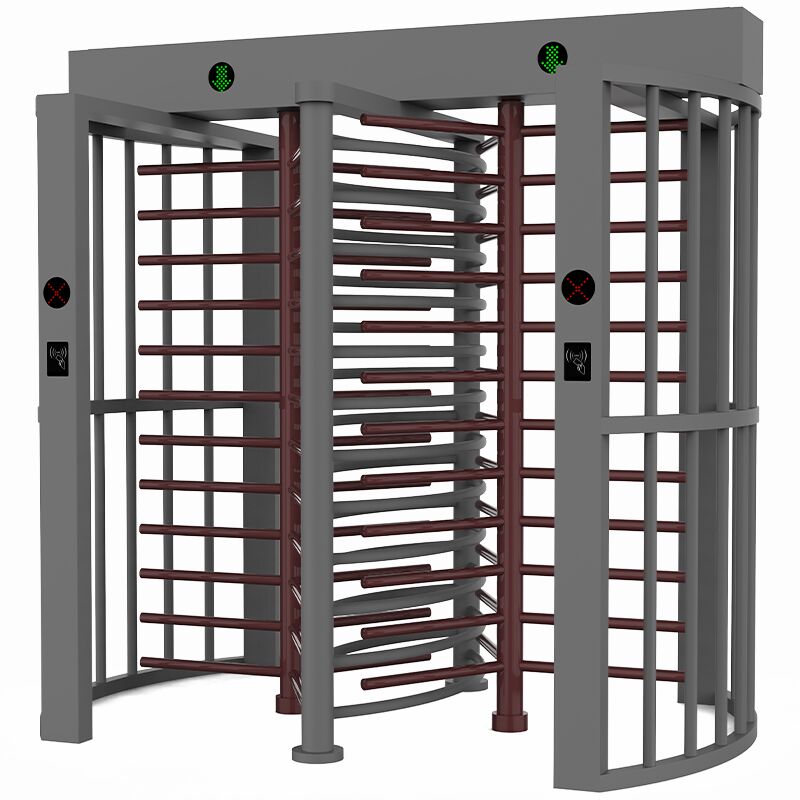

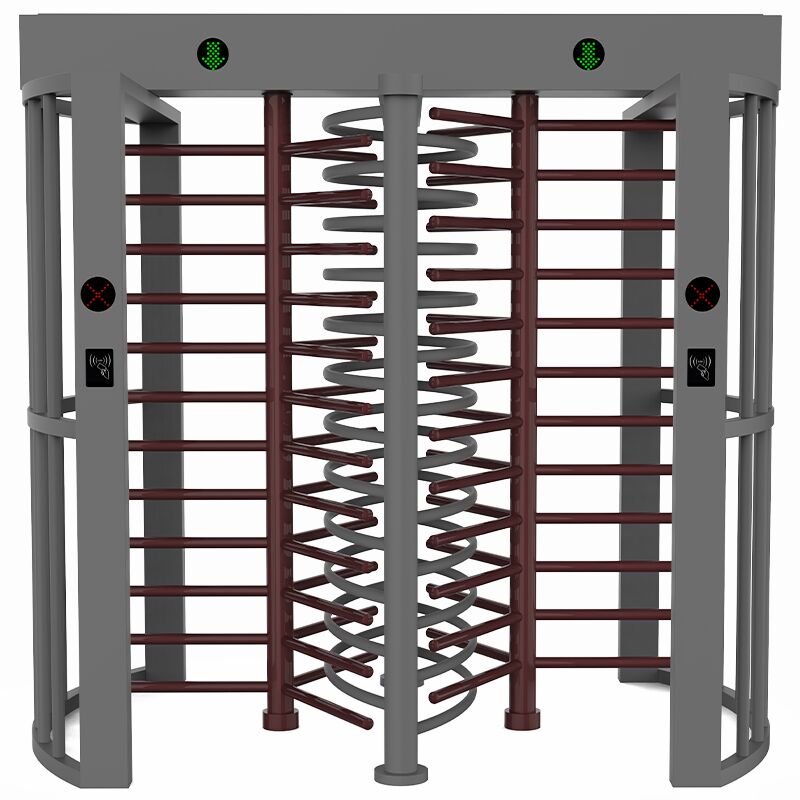

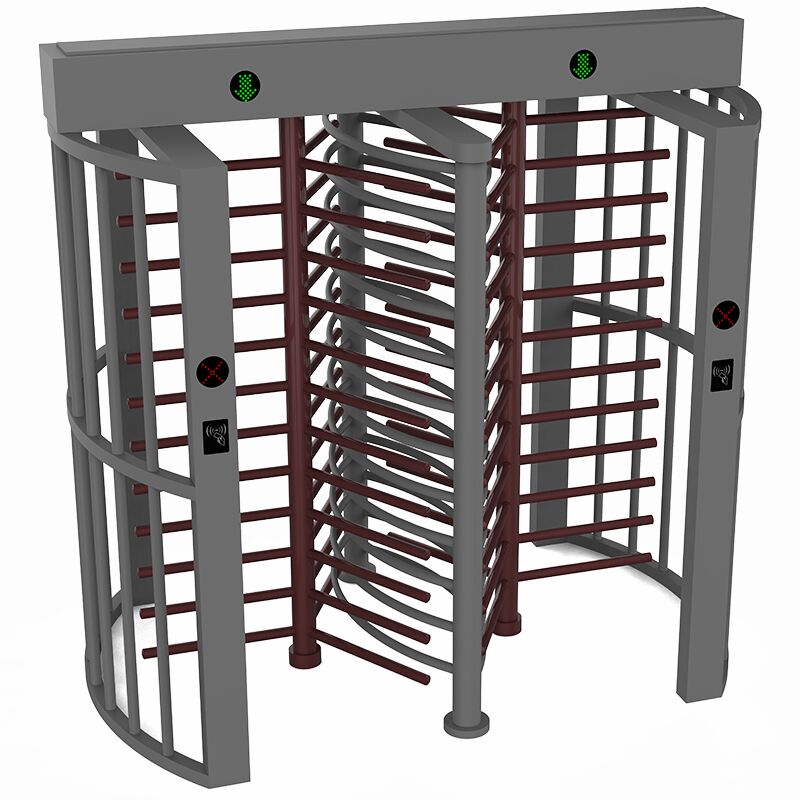

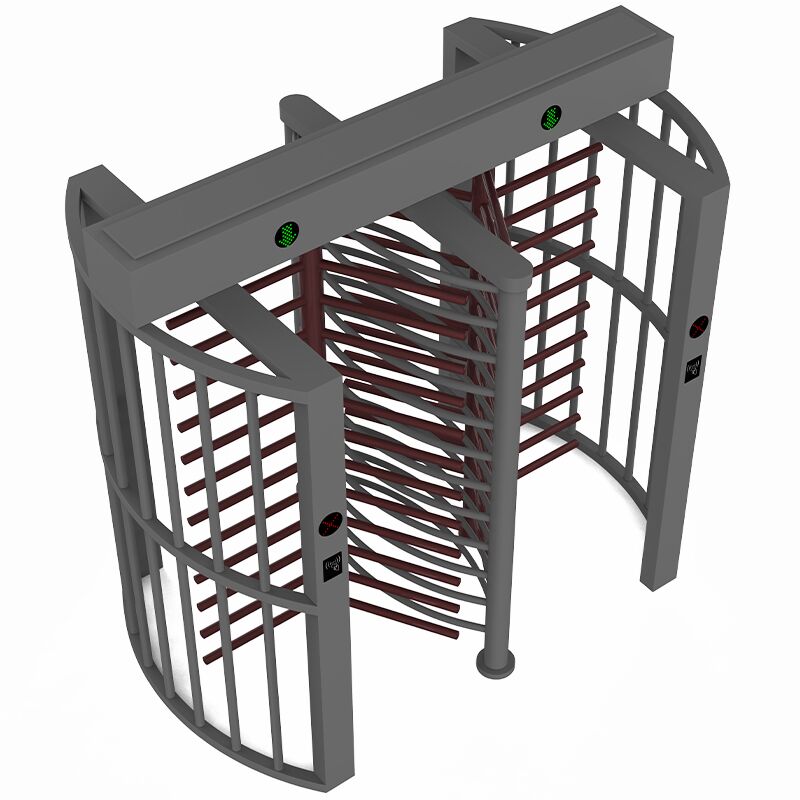

Full Height Tandem Turnstile MT402-2-X

1.Size:2400*1500*2310 mm (can be customized)

2. Lane Width: 650 mm (can be customized)

3. Material: 304 stainless steel or 316 stainless steel

4. Passing speed: 30 person/min

5. Power supply: 110V/220V 50/60Hz

6. Solenoid: DC24V

7. Gate Open Signal: Dry Contact/Relay

8. Logic Voltage: DC24V

9. Drive: Semi-automatic Operated

CE Certificated, ISO9001 Certificated.

Full Height Turnstile User & Installation Manual

Last updated on: April 27th, 2024 17:03 pm

Full Height Tandem Turnstile carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible.

Tandem turnstile is a dual lane full height turnstile composed of two channels side by side or multiple channels full height turnstiles are composed of multiple turnstile machines side by side. Tandem turnstile with the best security performance, which is much higher and wider than an ordinary turnstile gate and has obvious security advantages.

We can provide OEM and ODM services, including customization of color, style, material, size, etc. for example, for a special color, the customer only needs to provide us a Pantone number, and we will adjust the color according to the Pantone number and spray powder into the same color. If the customer has ODM needs, we can also design a style for this customer according to the customer’s appearance and size preferences, without external sales. This will be your company’s only unique style in the market.

We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on the full-height turnstile gate or have any questions, please contact us

Full-height tandem turnstile can form a closed passage space, and personnel passes orderly by swiping cards and other methods. Full-height tandem turnstile can be unattended and has high application value in some places with strict security measures. The Tandem turnstile is composed of chassis and 3 or 4 rows of rotating rods. It is developed on the basis of a tripod turnstile gate.

This is a customized full-height tandem turnstile with special treatment. The basic material is a 304 stainless steel iron plate. The surface is treated with ultra-high-temperature baking paint. The paint will not fall off after long-term use. It can be used outdoors, and the color can be customized freely. Just like the customization of this product, we can customize all other products according to your needs, including size.

Material of full-height turnstile:

Full-height tandem turnstile is made of SUS304 stainless steel. It adopts the most advanced drive control technology, which can change the design in a large range to meet the various requirements of different styles of modern buildings for intelligent pedestrian access control systems.

Performance characteristics:

  1. Full height turnstile mechanism adopts a unique mechanical structure, with a reasonable and reliable design, low noise, stable operation, and long service life.
  2. It can effectively prevent tailing and improve the traffic speed of people.
  3. After a power failure, the door will be unlocked automatically to form a mechanical mode, and personnel can enter and exit by themselves, meeting the fire protection requirements.
  4. Led prompt light indicating whether card swiping is effective.
  5. It has an automatic reset function. If the personnel does not pass the gate within the set time after obtaining the gate clearance authority, the full-height door will automatically cancel the authority and return to the initial state.
  6. Waterproof, sunscreen, cold and high temperature resistant.
  7. It has a personalized installation interface and is compatible with IC, ID cards, and other smart cards.
  8. It can be extended to an automatic identification system to realize access control, attendance, charging, and other functions.
  9. Remote control and management can be realized directly through the management computer
  10. Reliability of the mechanism: 5 million, no-fault
  11. Mechanism with hydraulic damper for shock-absorbing

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
