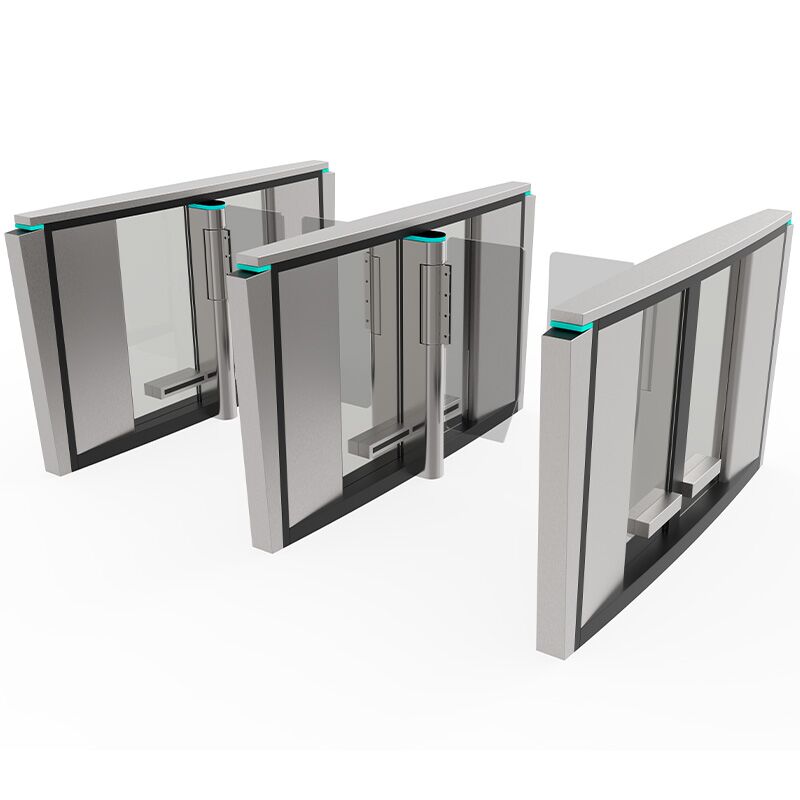

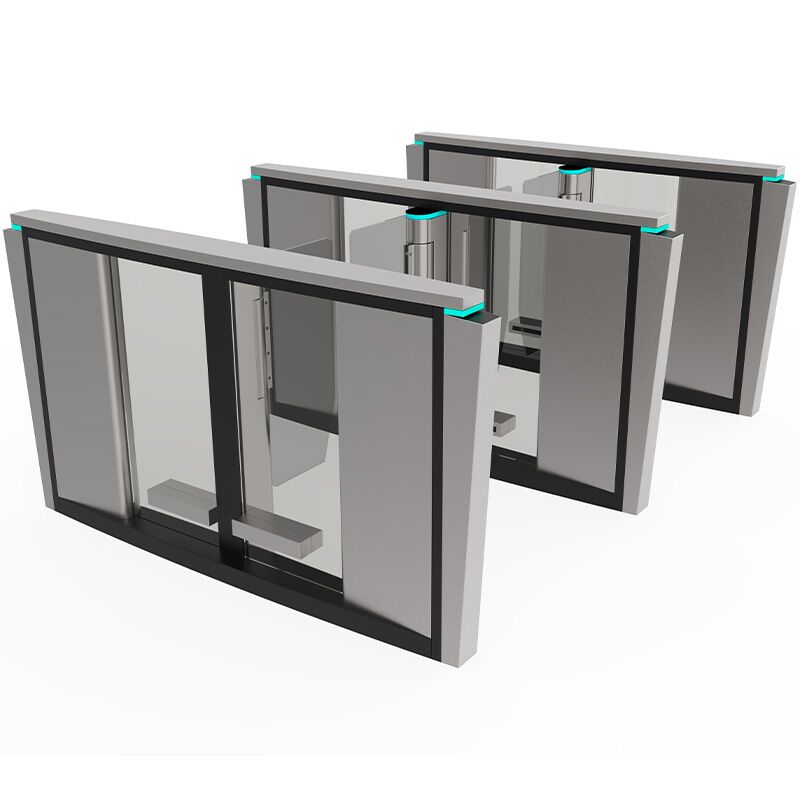

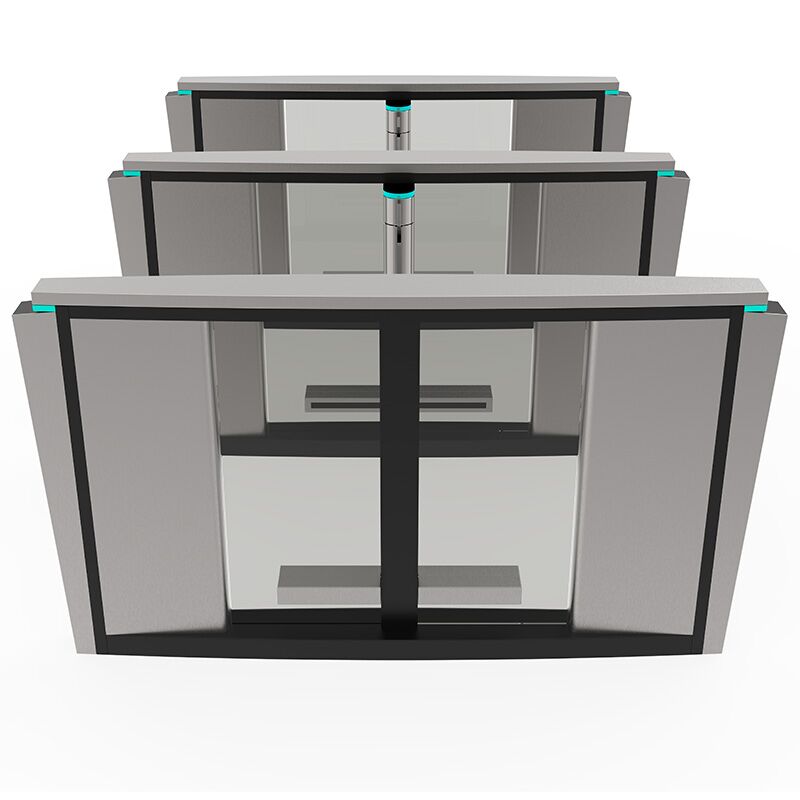

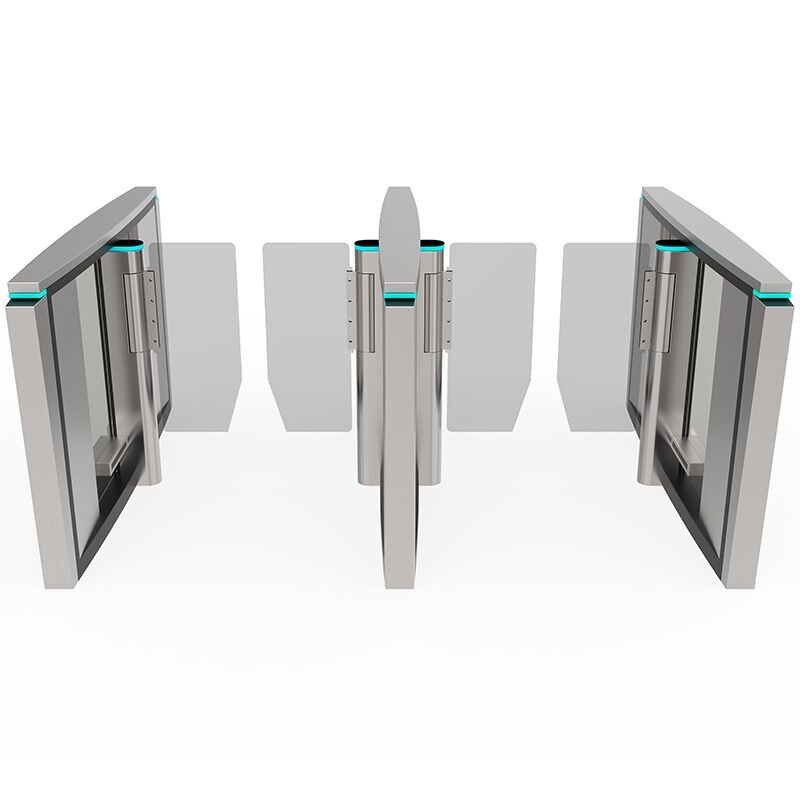

DIGITAL TURNSTILE SWING TURNSTILE GATE MT362

1. Size: 1400*150*980 mm (can be customized)

2. Lane Width: 600 mm (can be customized)

3. Arm height: 1300 mm (can be customized)

4. Passing speed: 40 person/min

5. Power supply: 110 V/220 V 50/60 Hz

6. Servo Motor

7. Gate Open Signal: Dry Contact/ Relay

8. Swing barrier turnstile Driving Motor: 24 V

9. Casing Material: 304 stainless steel

CE Certificated, ISO9001 Certificated.

MT362 Speed Digital Turnstile Brochure

Last updated on: April 27th, 2024 17:10 pm

Digital turnstile swing turnstile gate carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

Swing turnstile gate digital turnstile controls the people to enter or exit the restricted area. The arm height is 1300mm, which can prevent people from climbing over the gate. Swing barrier turnstile is high security and fast speed gate that is widely used in an office building, bank lobbies, etc.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.

digital turnstile 4 digital turnstile 5
  • Digital turnstile is a swing turnstile gate, a high-speed gate, which is usually applied in a location with high traffic flow in bi-direction running. Digital turnstile is also called electronic turnstile gates, or electronic turnstiles.
  • The chassis is made from hairline texture 304 stainless steel, which creates a seamless and elegant access point to match most indoor environments.
  • This digital turnstile swing turnstile gate comes with international standard RS485 and relays Which makes it widely compatible with all existing software in the industry and almost all the access control like RFID systems, Bar codes systems, and Face recognition systems and fingerprint systems, etc.
  • In case of emergency, cut off the power, and the Slim swing turnstile will open automatically to allow free passage which is complying with fire safety requirements. But it has to come with a battery. As for export, the battery is sensitive, we can use the capacitor to replace
  • Optical digital turnstile is suitable for luxury and high-end entrance solutions.
  • The whole system runs smoothly, with low noise, and high speed.
  • Swing arm material: Acrylic
  • Swing arm thickness: 10 mm
  • Alarm function, if there is an illegal intrusion and reverse intrusion, the gate will alarm and the door will lock.
  • There is a total of 5pairs of infrared sensors The middle sensors are to prevent pinch pedestrians.
  • Anti-tailing function, one person can pass at one time. If someone tails after the front people, the digital turnstile will alarm.
  • LED indicator. Red cross and green arrow. There are also LED indicators on the front post.  The LED light can be added to the arms.
  • Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency.
  • Automatic reset function. If the people did pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically
  • Anti-bump, Anti clamp, The gates come with brushless During operation if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians especially children from bumping, clipping, striking, etc.

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
