1. Size: 1400 * 280 * 980 mm
  2. Lane width: 550 mm
  3. Passing speed: 40 person/min
  4. Power supply: 110 V/220 V 50/60 Hz
  5. Driving Motor: 20 W
  6. Gate Open Signal: Dry Contact/ Relay
  7. Driving Motor: DC24V
  8. Flap barrier gate turnstile Weight: 70 kg/pcs

Last updated on: September 2nd, 2021 16:01 pm

Access turnstile flap barrier gates MT249 carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card reader, fingerprint scanner, QR code scanner, face recognition camera, and so on.

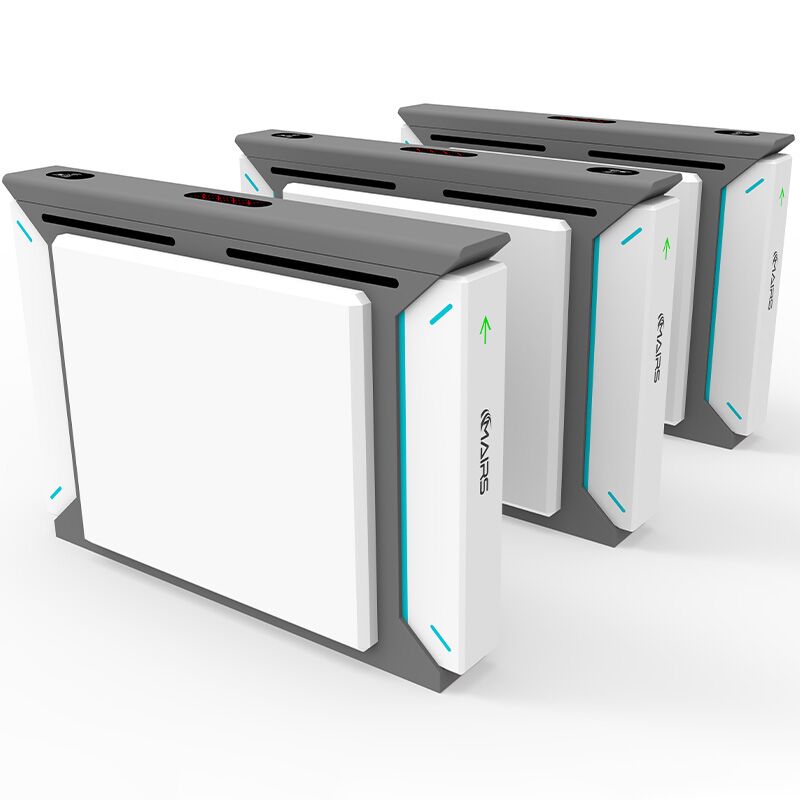

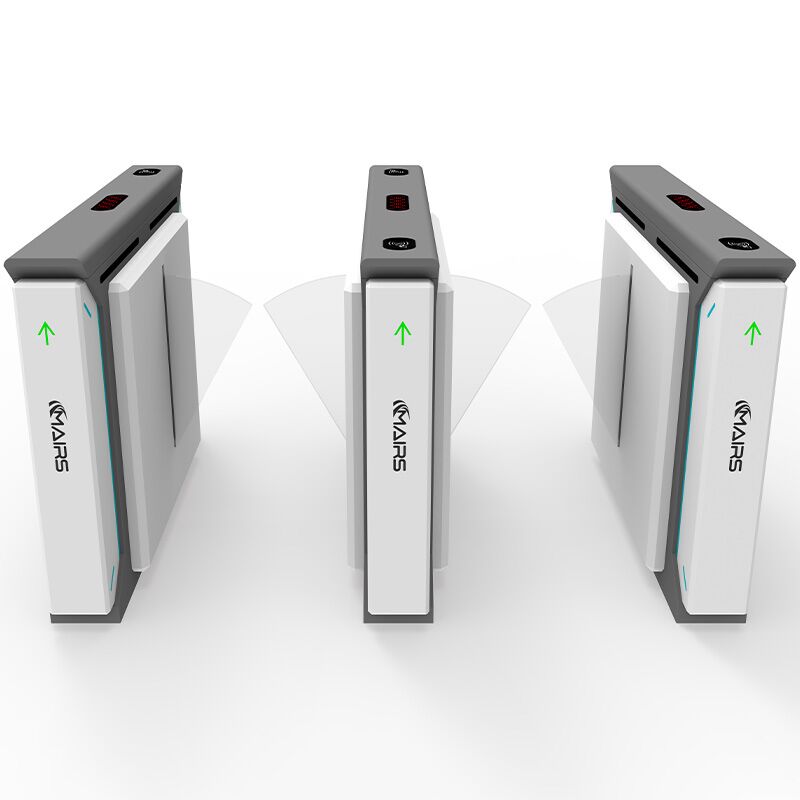

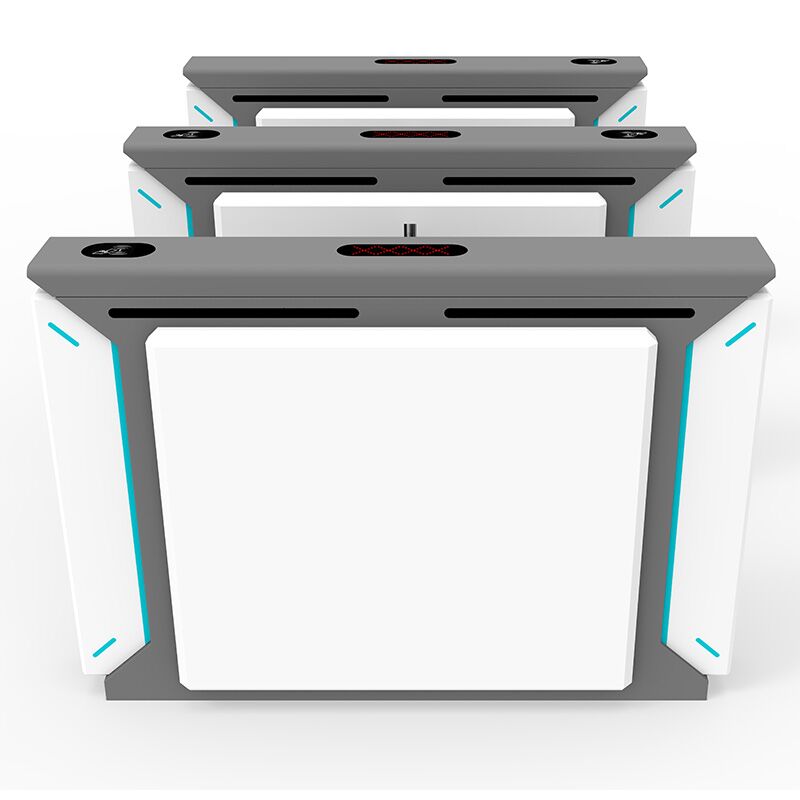

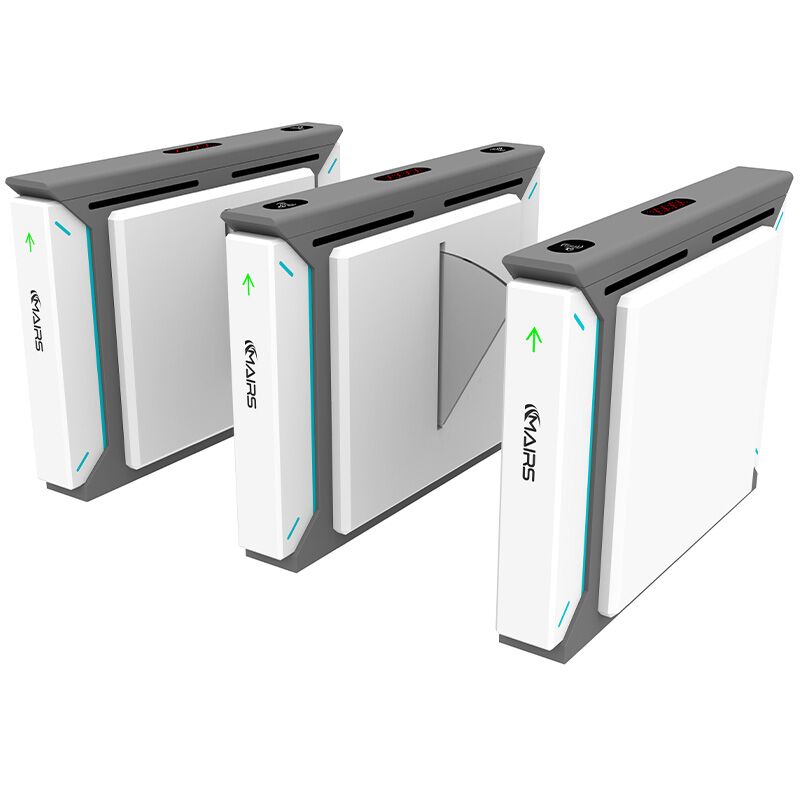

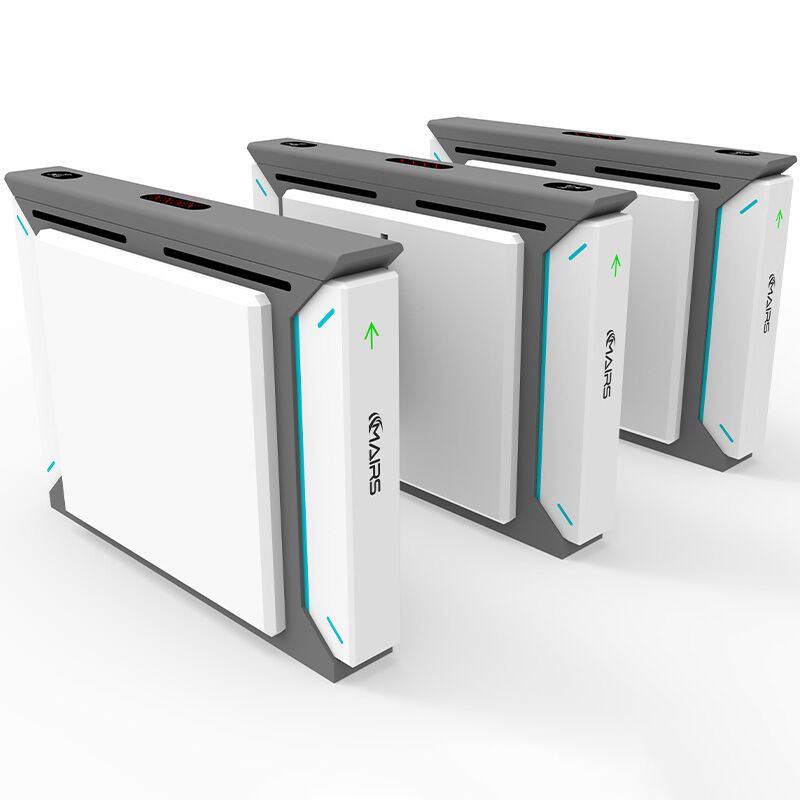

304 Stainless Steel Automatic Access Turnstile Flap Barrier Gates For Access Control System

FLAP BARRIER GATE ACCESS TURNSTILE is designed for use in applications with high volume pedestrian traffic that require rapid access. Safety is always the priority no matter in what situation. The flap barrier gate turnstile is a fully automatic gate. Personnel movement is monitored by multiple safety sensors built within the casing. The closing force on the flap is controlled by the anti-pinch sensor preventing injury to pedestrians. Mairs provides the best access turnstile flap barrier gates.

  • Flap Barrier gate access turnstile is constructed to control people entering or exiting the restricted area. It is usually used in high pedestrian traffic flow locations in both directions.
  • The flap barrier casing is made of brushed 304 stainless steel which creates a seamless and nice entrance system to blend into most indoor environments.
  • It can be integrated with all third-party access control systems (e.g.: RFID access system, Push the button, Fingerprint and face recognition with temperature check).
  • In case of emergency, the FlapTurnstile arm will open automatically connecting with the battery or capacitor to allow free passage.
  • Flap barrier gate access turnstile is suitable for luxury and elegant entrance solutions.
  • The flap barrier access turnstile features fast speed, long-life, high performance, and high operation dependability
  • Alarm function, in case of illegal intrusion and reverse intrusion.
  • The infrared sensor will alarm and the LED light will flash to prevent pinch pedestrians.
  • Automatic reset function: flap arms will close automatically within 5s in default (can be setting) if passenger delays to
  • The flap turnstile will stay in the lock if someone wants to burst in without swiping the RFID card.
  • LED directional indicator on top and front post.
  • Turnstile gate supplier in UAE.
  • Anti-reverse function, the turnstile alarms if someone wants to enter in the reverse direction.
  • Bi-direction or single direction running are options
