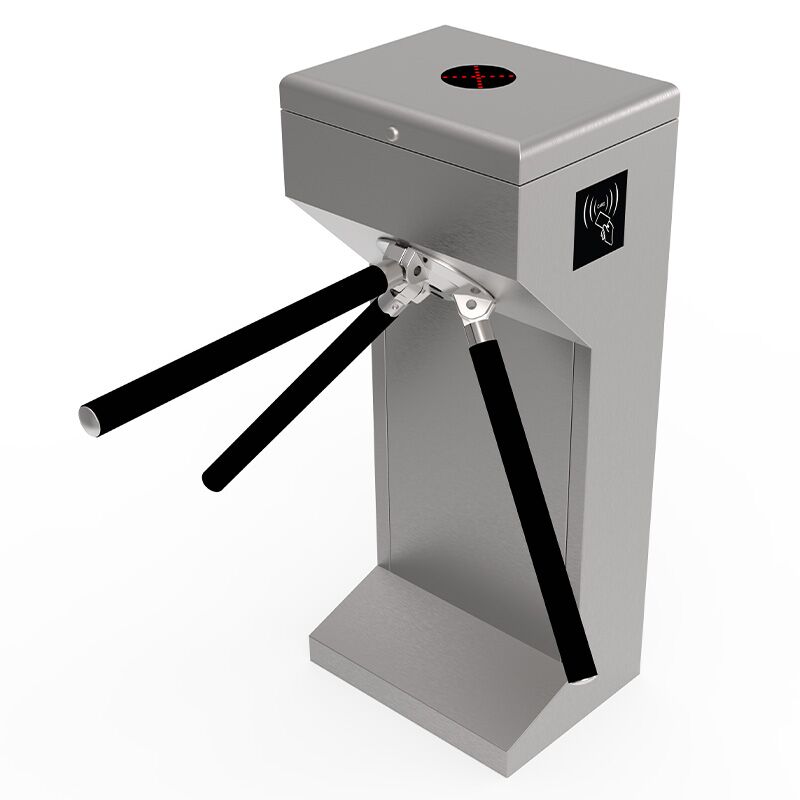

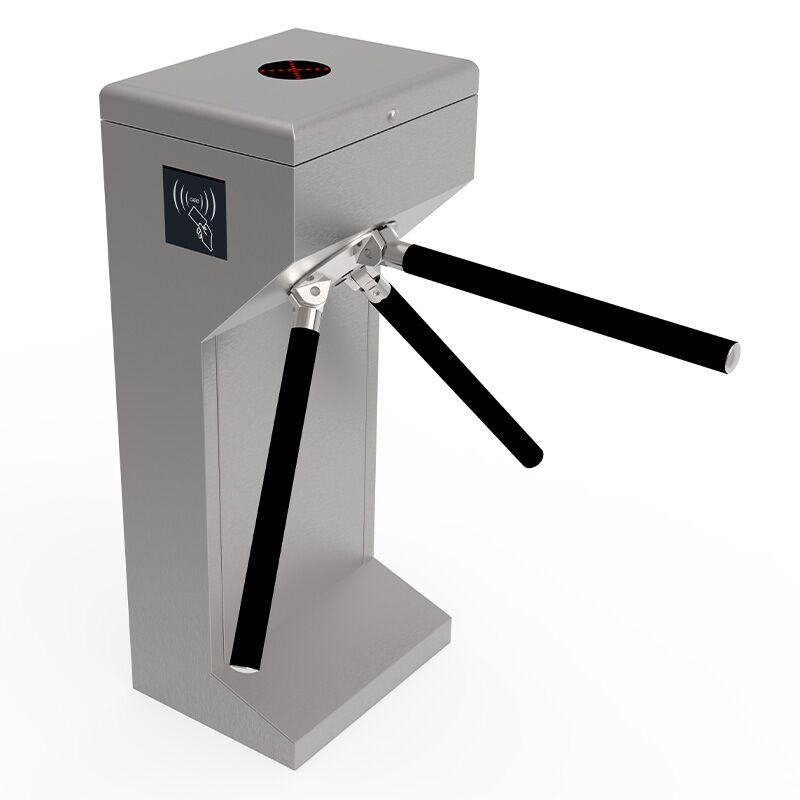

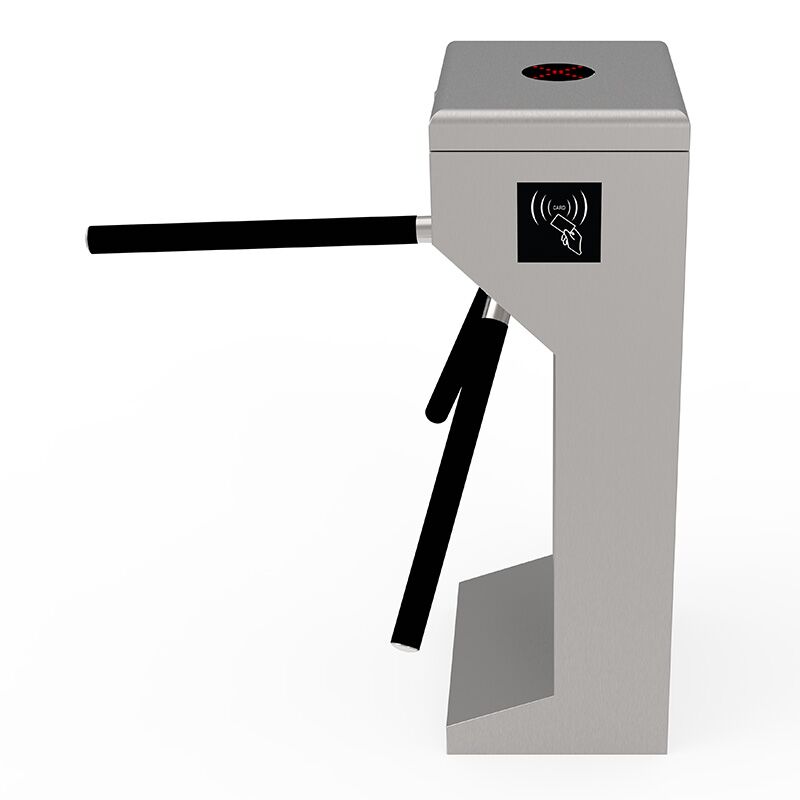

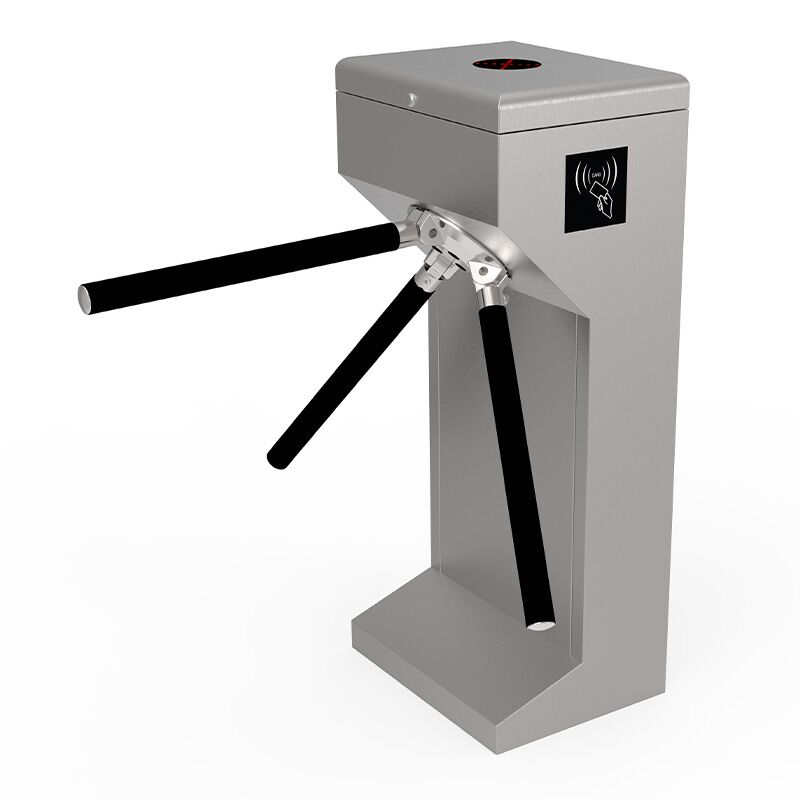

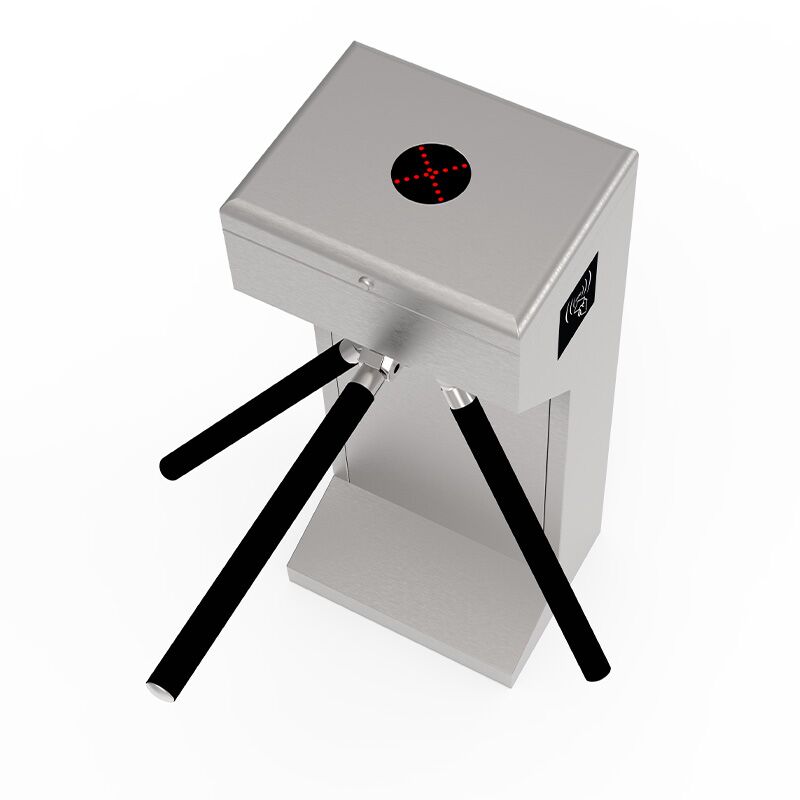

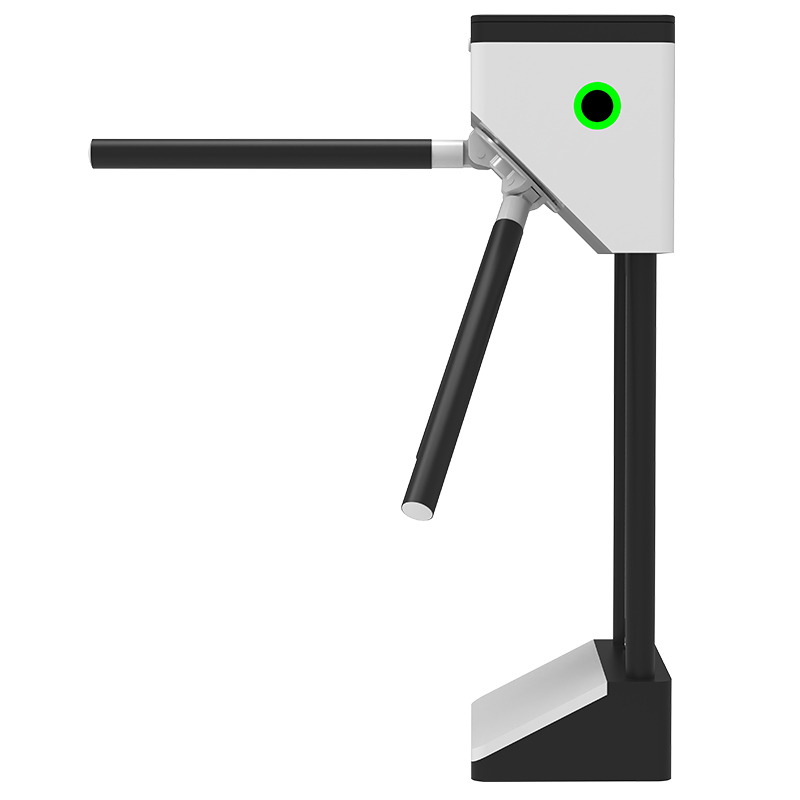

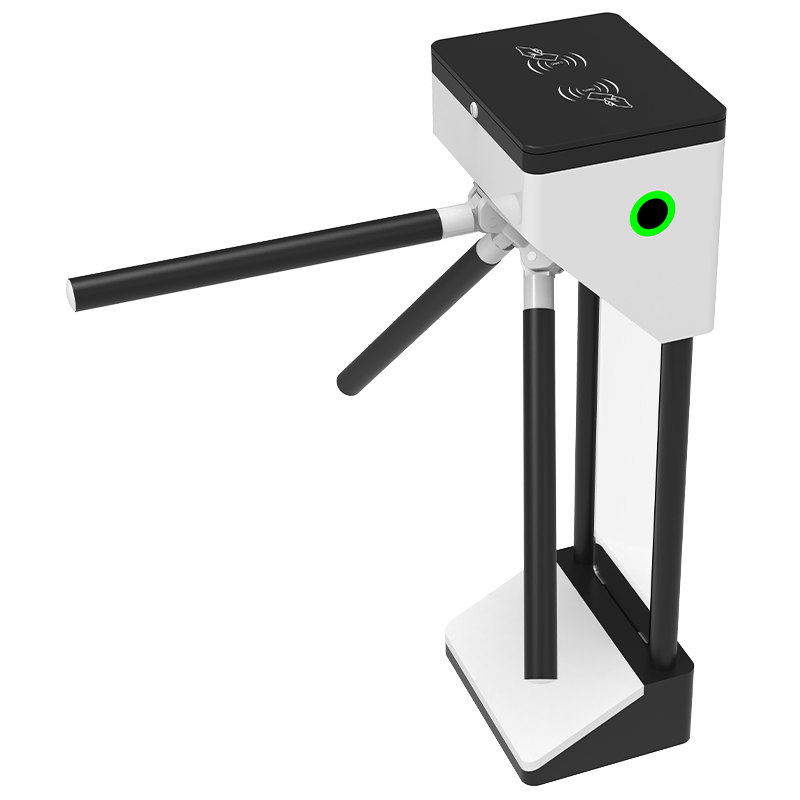

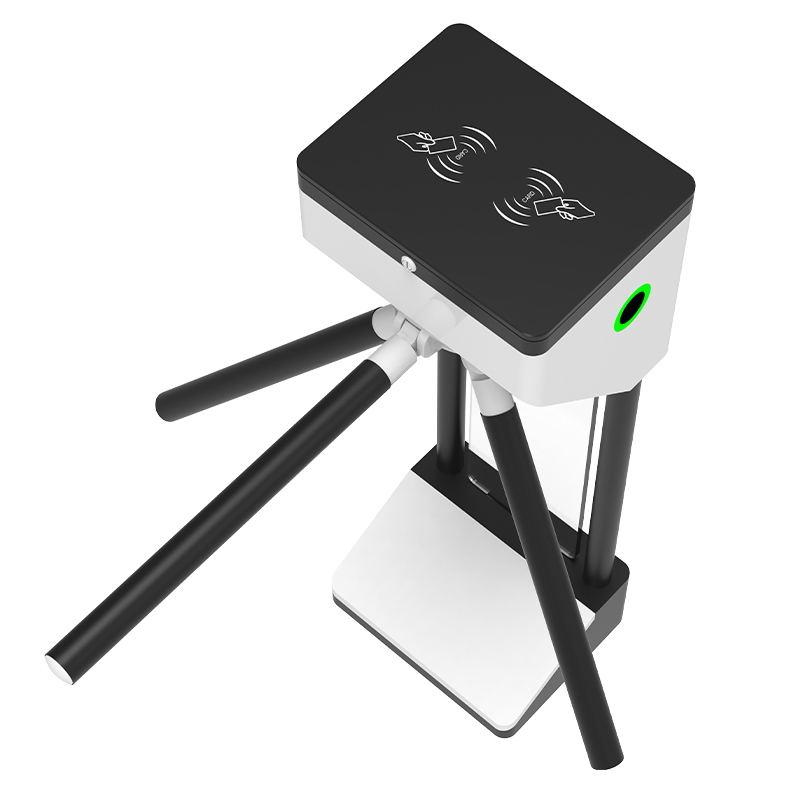

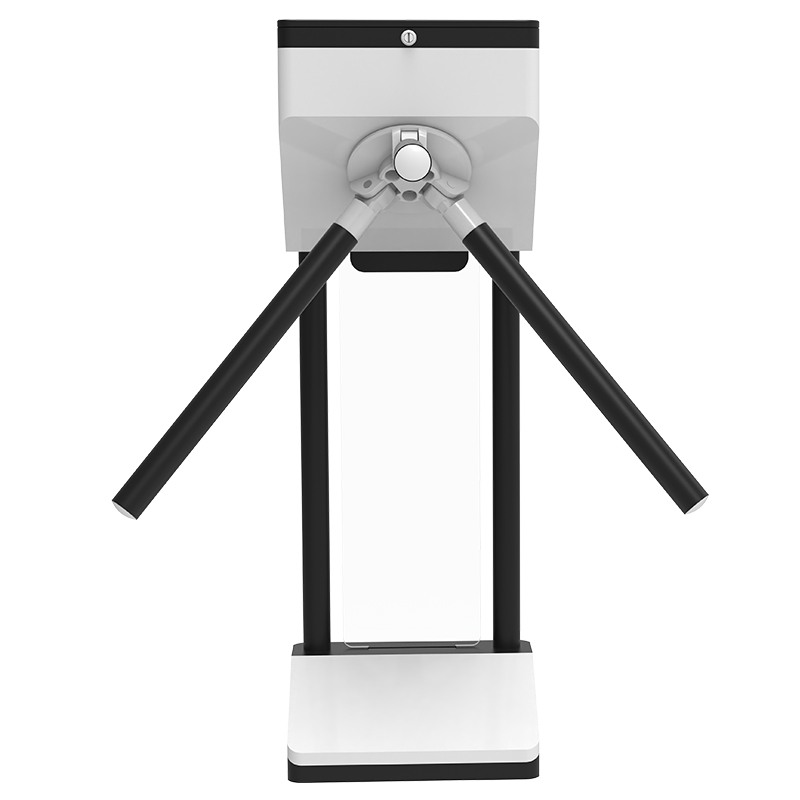

TRIPOD SECURITY GATE TRIPOD TURNSTILE MT113

1. Size: 480*280*980 mm (can be customized)

2. Lane width: 550 mm (can be customized)

3. Passing speed: 35 person/min

4. Power supply: 110V/220V 50/60Hz

5. Weight: 40 kg

6. Gate Open Signal: Dry Contact/ Relay

7. Casing Material: 304 stainless steel

8. Reliability of the mechanism: 3 million, no-fault

9. Solenoid valve: DC24V ±5%

CE Certificated, ISO9001 Certificated.

MT113 Tripod Security Gate Brochure

Last updated on: February 23rd, 2024 22:21 pm

TRIPOD SECURITY GATE carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

Tripod security gate is a three-arm turnstile gate that is used in the location where the controlled entrance and exit of crowds are needed. The tripod security gate runs smoothly and effectively by basic operation, and also prevents illegal in and out. Tripod security turnstile is a type of easy, economical crowd-organizing, and reliable, entrance gate system. Tripod turnstile is a cost-effective turnstile that is suitable for various locations.

Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism, and three blocking rods which stop or release by rotating 120° each time. Its components include chassis, mechanism, drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation.

Generally, the shape of the tripod turnstile is made of a 304 stainless steel plate, which is beautiful and generous, rustproof and durable, and can resist external force damage.

Tripod turnstile is divided into mechanical type, semi-automatic type, and full-automatic type from the mechanism control mode. From the form, it is divided into a vertical tripod turnstile and a bridge tripod turnstile. The vertical tripod turnstile gate has a small volume and is relatively easy to install; The bridge tripod turnstile gate has a longer channel and higher security.

Tripod security gate can be combined with smart card, fingerprint, bar code, and other identification system equipment to form an intelligent access control system; It is combined with a computer, access control, attendance, charge management, ticket system, and other software to form an intelligent access control management system, which can realize the functions of access control, attendance, consumption, ticket sales, current restriction and so on.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layout and drawings, as well as installation drawings.

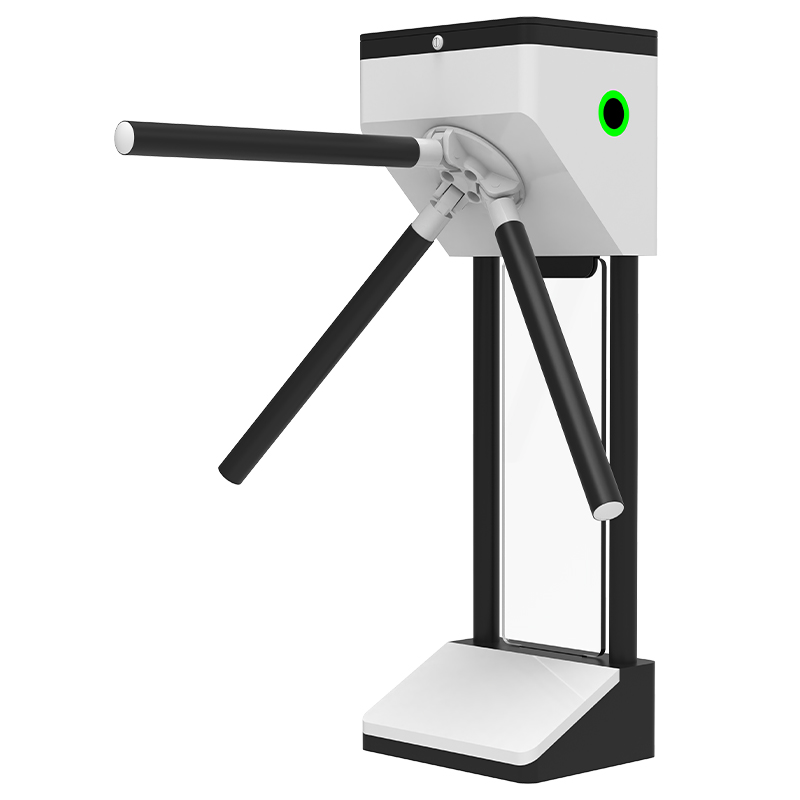

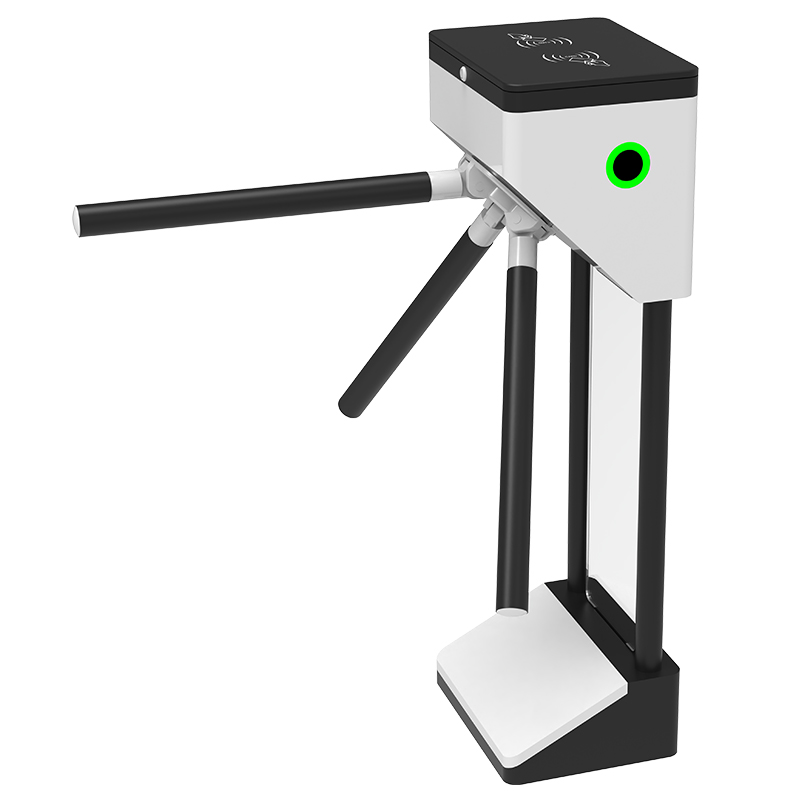

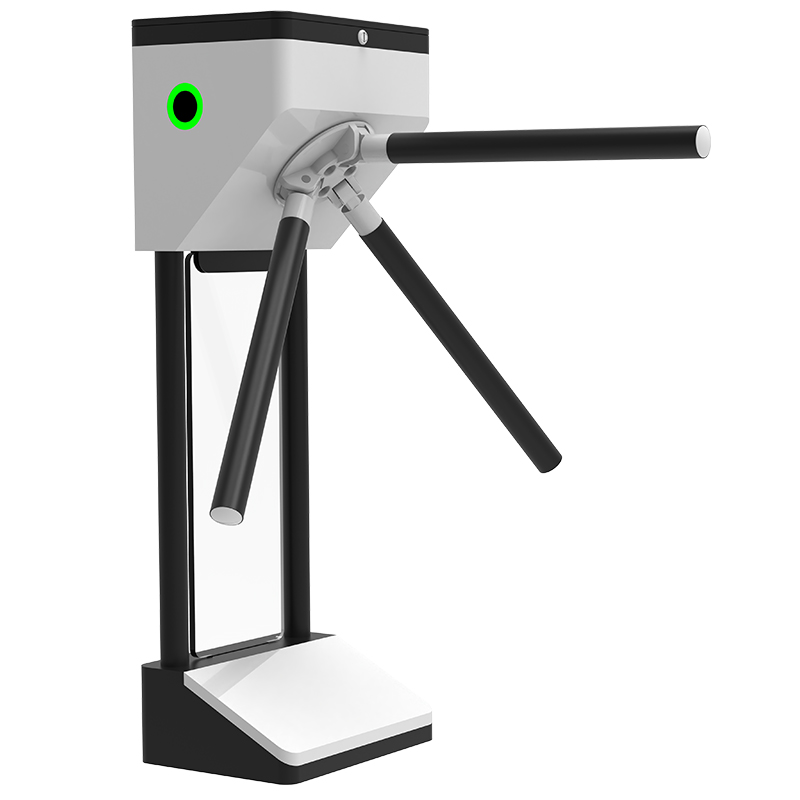

tripod security gate 5 tripod security gate 6
  • Tripod security gate is a compact and cost-effective entrance solution.
  • Tripod security gate has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, and durable.
  • Tripod security turnstile can be mounted for both indoor and outdoor locations. The IP rate is 54
  • It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face, Barcode, IR thermometer).
  • The Tripod security gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
  • The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.
  • Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life
  • The mechanism is mold design. All the components are precise.  It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.
  • The design of the tripod security turnstile makes only one person pass at one time.
  • Single-directional or Bi-directional is an option.
  • LED directional indicator light on top
  • Automatic clock function: if there is an open signal received,  but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.
  • When power is off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
