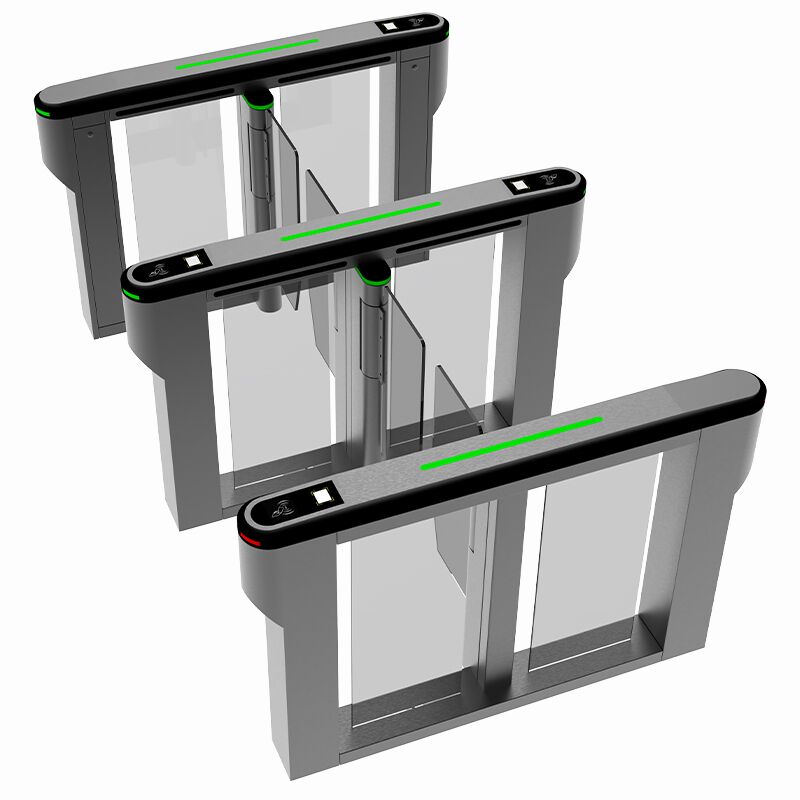

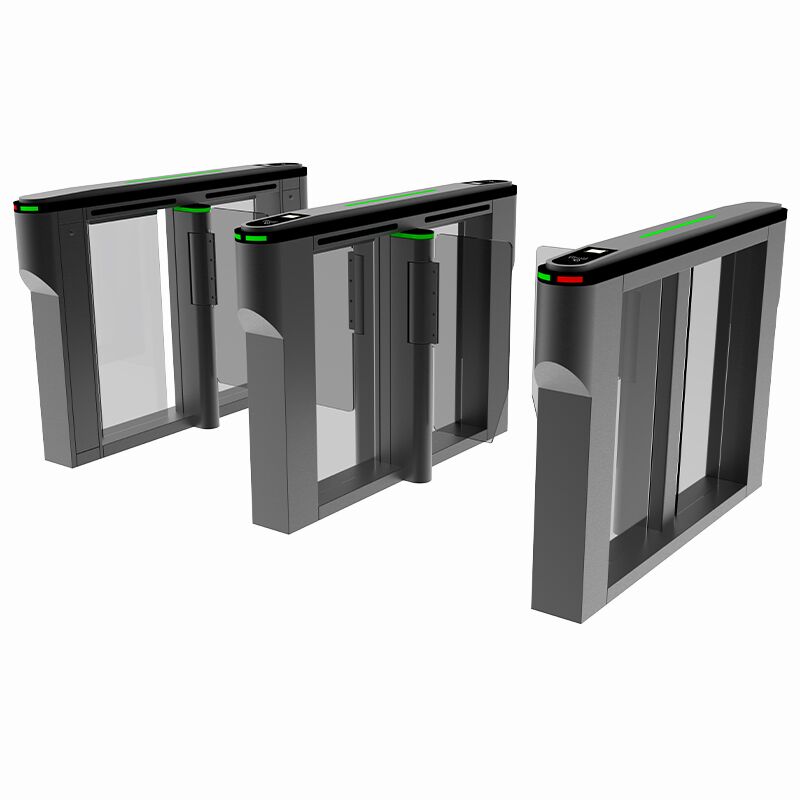

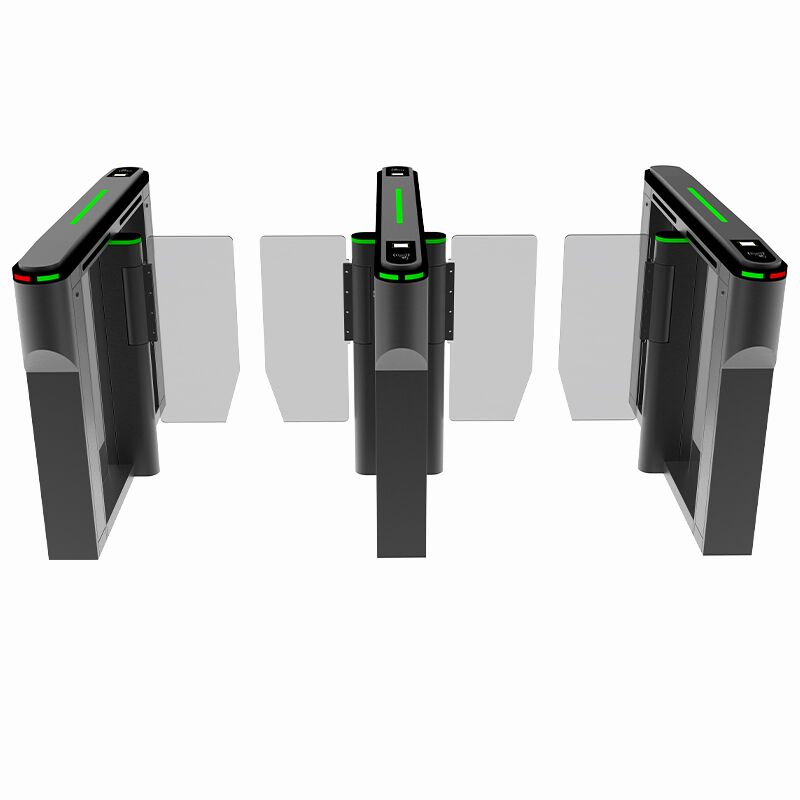

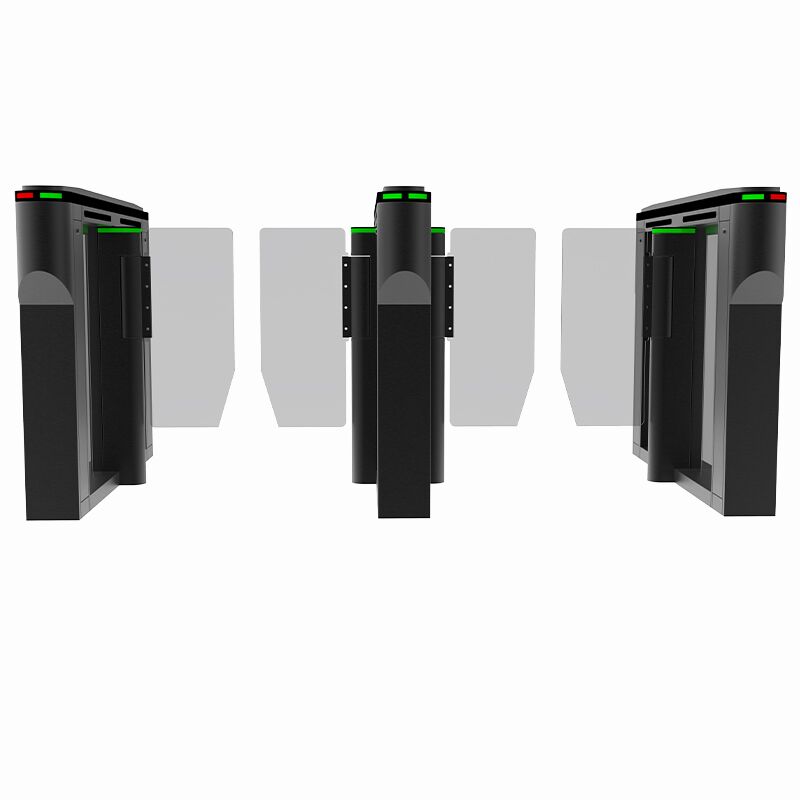

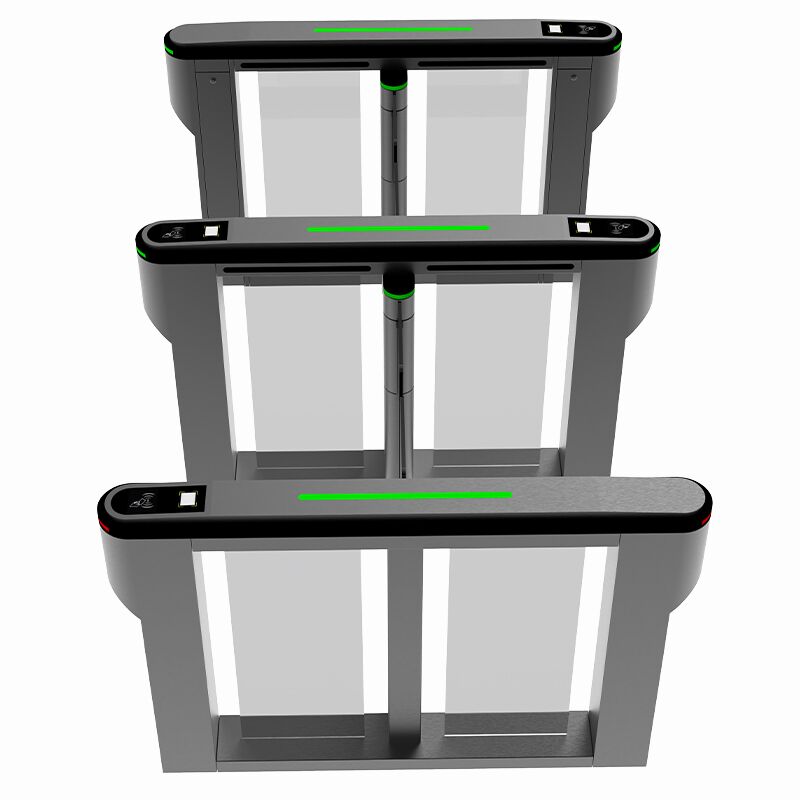

Super Slim Brushless Motor Speed Gates For Lobby MT-H318

1. Size: 1500*120*980mm (can be customized)

2. Power input: AC100-240V,50/60HZ

3. Material: 1.2mm SUS 304 with 400# hairline

4. Arm material: 10mm Acrylic

5. Pass Width: 600mm-1100mm (can be customized)

6. Passage direction: Single directional/Bi-directional

7. Pass rate: 35-40 persons/minute

8. Operating time: 0.2 seconds

9. Working environment: Indoor

10.  Input  interface: RS485  Dry contact

11.  Infrared sensor: 6 pairs

Last updated on: June 20th, 2022 18:33 pm

THIS SPEED GATES AUSTRALIA carries a 2 years warranty and durable maintenance and repair support.

Mairs can customize speed gates Australia according to your requirements. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

SPEED GATES AUSTRALIA Automatic Slim Fast Speed Gates security turnstiles, we exporting speed gates to Australia for lobbies.

THE SPEED GATES AUSTRALIA is a high-end intelligent swing barrier turnstile product from Mairs, which can fully detect the passing situation of the human body.

This speed gates body material is 304 stainless steel which is anti-rust and durable and high resistance.

Anti-tag after, anti-hit against, RS485 Communication, DC Brushless motor, This speed gates turnstile Compatible with all kinds of Access Control Systems.

These speed gates security turnstiles are widely used in the bus station, ports, subways, factories, mansions, residential areas, hotels, companies, and so on any place that requires a smart flow control.

It has the function of fault self-check and alarm prompt, which is convenient for users to maintain and use.

It can be connected with any control signal or button and can be output by any control device to realize one-way and two-way control.

The one-way and two-way free passage can be set arbitrarily.

When the equipment is powered on or restarted, it has the function of fault self-checking, which is convenient for users to maintain and use.

High-intensity traffic light status indication. If someone is following, the gate will automatically start reverse thrust locking and give an alarm. Connect the fire alarm signal.

Technical Parameter:

  1. Size: 1500120980mm
  2. Power input: AC100-240V,50/60HZ
  3. Material: 1.2mm SUS 304 with 400# hairline
  4. Arms material: 10mm Acrylic
  5. Pass Width: 600mm-1100mm
  6. Passage direction: Single directional/Bi-directional
  7. Pass rate: 35-40 persons/minute
  8. Operating time: 0.2 seconds
  9. Working voltage: 24V
  10. Working humidity: 30%~95%
  11. Working temperature: -40℃~+70℃
  12. Working environment: Indoor
  13. Input  interface: RS485  Dry contact
  14. Mechanism: DC Brushless motor
  15. Infrared sensor: 6 pairs
  16. MCBF: 5,000,000 Cycles
  17. Application: Airports, Hotels, Government Halls, etc

turnstile gate dimensions H318speed gates casesturnstile gate access control systemturnstile gate package
