1. Size: 1400 * 150 * 980 mm
  2. Lane Width: 600 mm
  3. Arm height: 1300 mm
  4. Passing speed: 40 person/min
  5. Power supply: 110 V/220 V 50/60 Hz
  6. Servo Motor
  7. Gate Open Signal: Dry Contact/ Relay
  8. Swing barrier turnstile Driving Motor: 24 V

Last updated on: May 27th, 2021 17:25 pm

TURNSTILE GATE WITH BARCODE READER carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services.

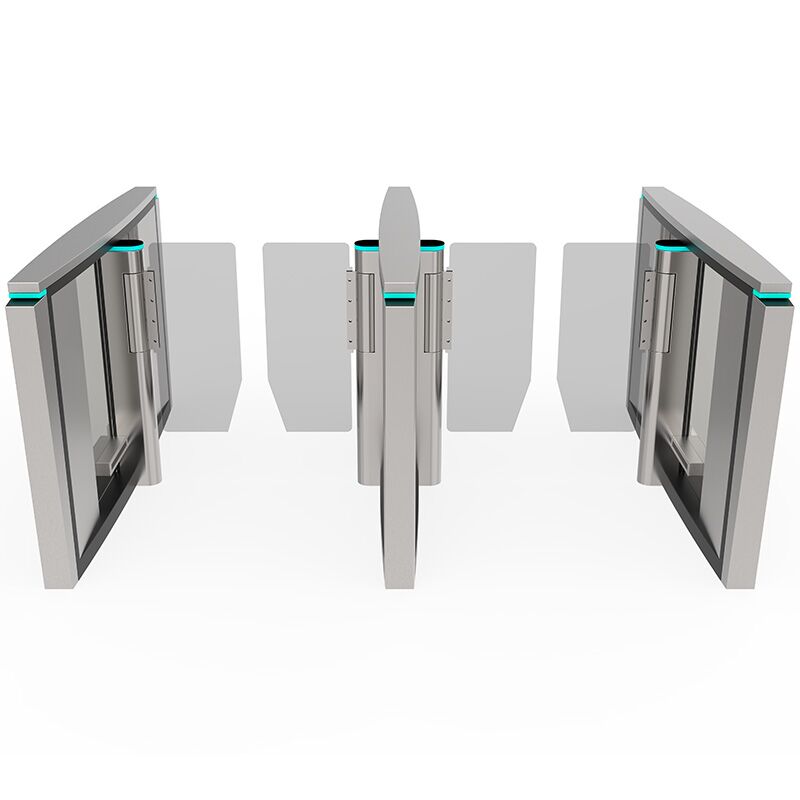

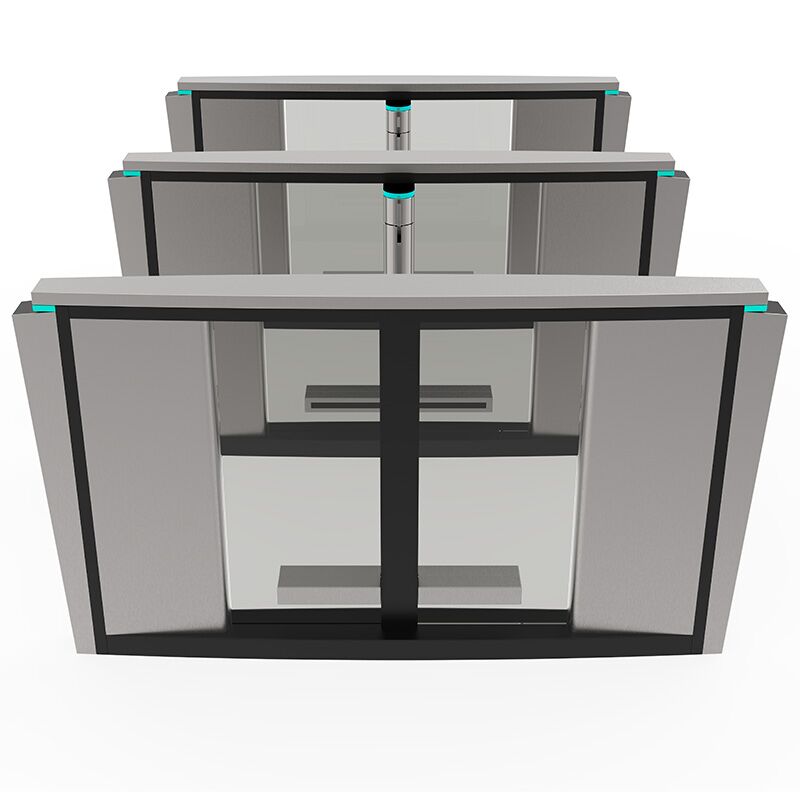

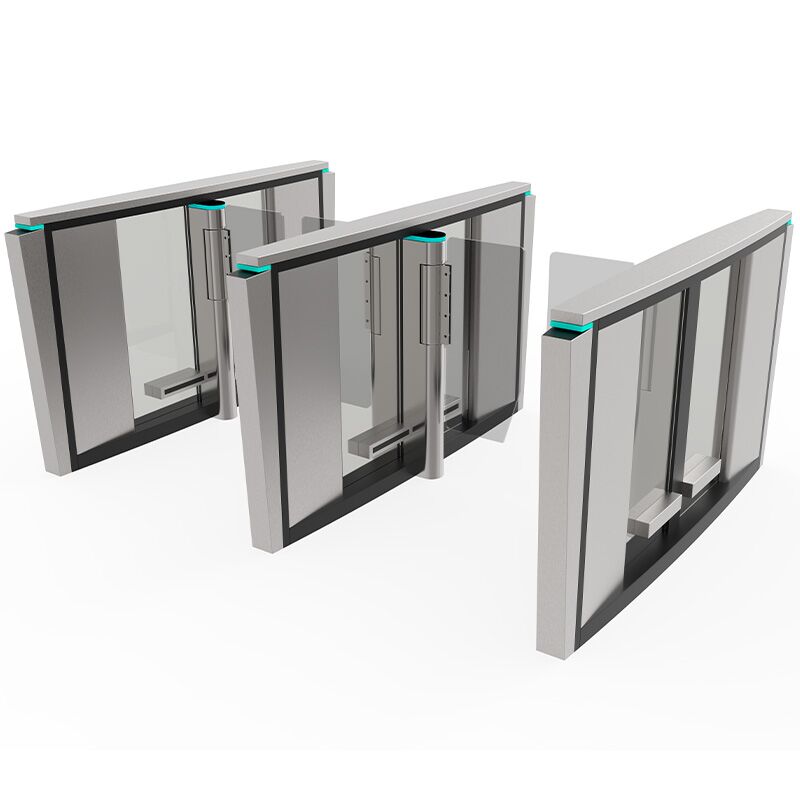

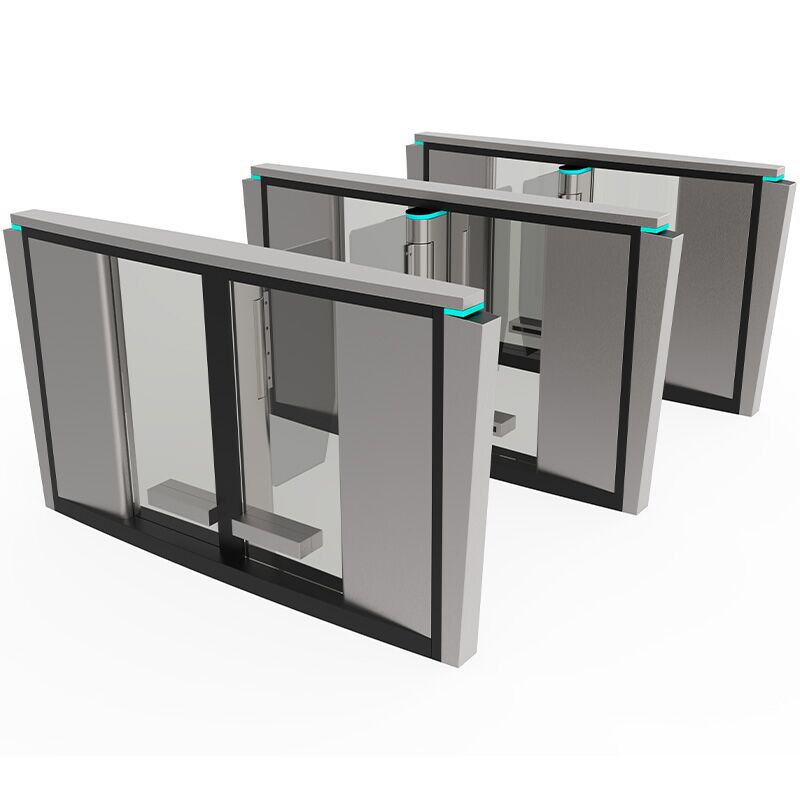

Turnstile gate with barcode reader controls the people to enter or exit the restricted area. The arm height is 1300mm, which can prevent people from climbing over the gate. Swing barrier turnstile is high security and fast speed gate that is widely used in an office building, bank lobby, etc.

  • Turnstile gate with carcode reader is a highspeed gate, which usually applied in the location with high traffic flow in bi-direction running.
  • The chassis is made from hairline texture 304 stainless steel, which creates a seamless and elegant access point to match most indoor environments.
  • This swing turnstile gate with barcode reader comes with international standard RS485 and relays Which makes it widely compatible with all existing software in the industry and almost all the access control like RFID system, Bar codes system, Face recognition system and fingerprint system, etc.
  • In case of emergency, cut off the power, the Slim swing turnstile will open automatically to allow free passage which is complying with fire safety requirements. But it has to comes with a battery. As for export, the battery is sensitive, we can use the capacitor to replace
  • Optical Turnstiles are suitable for luxury and high-end entrance solutions.
  • The whole system runs smoothly, low noise, high speed.
  • Best turnstile gate with barcode reader.
  • Alarm function, if there is an illegal intrusion and reverse intrusion, the gate will alarm and the door will lock.
  • There is a total of 5pairs of infrared sensors The middle sensors are to prevent pinch pedestrians.
  • Anti-tailing function, one person can pass at one time. If someone tails after the front people, the turnstile gate with barcode reader will alarm.
  • LED indicator. Red cross and green arrow. There are also LED indicators on the front post.  The LED light can be added to the arms.
  • Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency.
  • Automatic reset function. If the people did pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically
  • Anti-bump, Anti clamp, The gates come with brushless During operation if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians especially children from bumping, clipping, striking, etc.

Turnstile Dimension:

Swing barrier gate dimension size - Mairsturnstile


access control system turnstile gatepackaging from Mairsturnstile
