NEW DESIGN VERTICAL TRIPOD TURNSTILE MT116

1. Size: 600*250*980 mm (can be customized)

2. Lane width: 550 mm (can be customized)

3. Passing speed: 35 person/min

4. Power supply: 110V/220V 50/60Hz

5. Weight: 40 kg

6. Gate Open Signal: Dry Contact/ Relay

7.  Operation way: semi-automatic

8. Casing Material: 304 stainless steel

9. Reliability of the mechanism: 3 million, no-fault

CE Certificated, ISO9001 Certificated.

MT116 Vertical Tripod Turnstile Brochure

Last updated on: April 27th, 2024 17:08 pm

VERTICAL TRIPOD TURNSTILE carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

Vertical Tripod turnstile is used in different applications including gyms, arenas, perimeter and interior security, recreation and amusement parks, etc. Tripod turnstile can be mounted with LCD display, passage counter, card reader, token operation, and alarm system against unauthorized entries. The unique arm drop function offers a fail safety solution providing egress in case crisis evacuations is needed in case of an emergency or power failure, providing egress in case of crisis evacuations.

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.

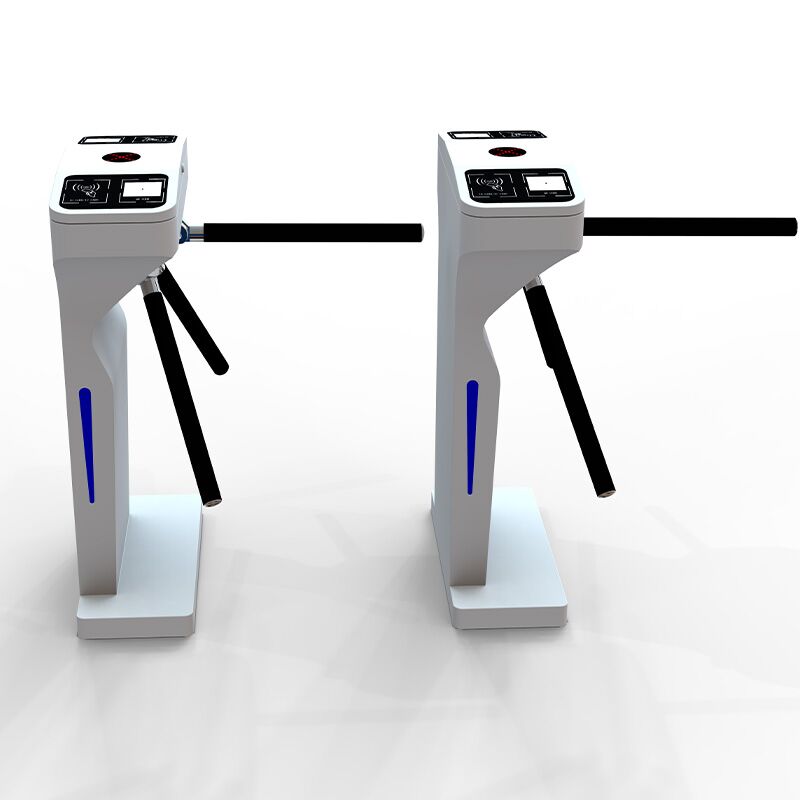

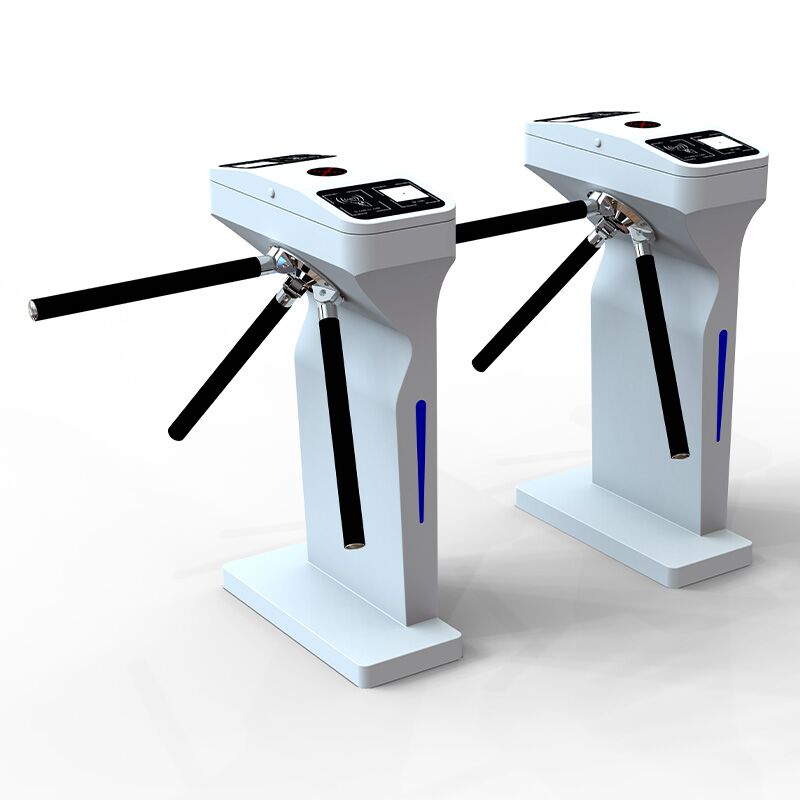

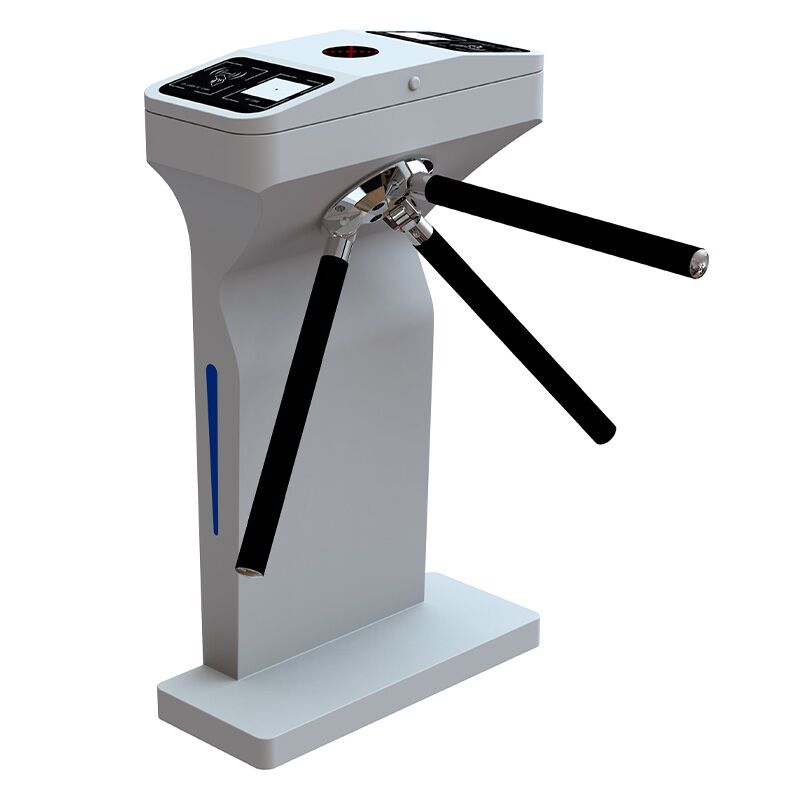

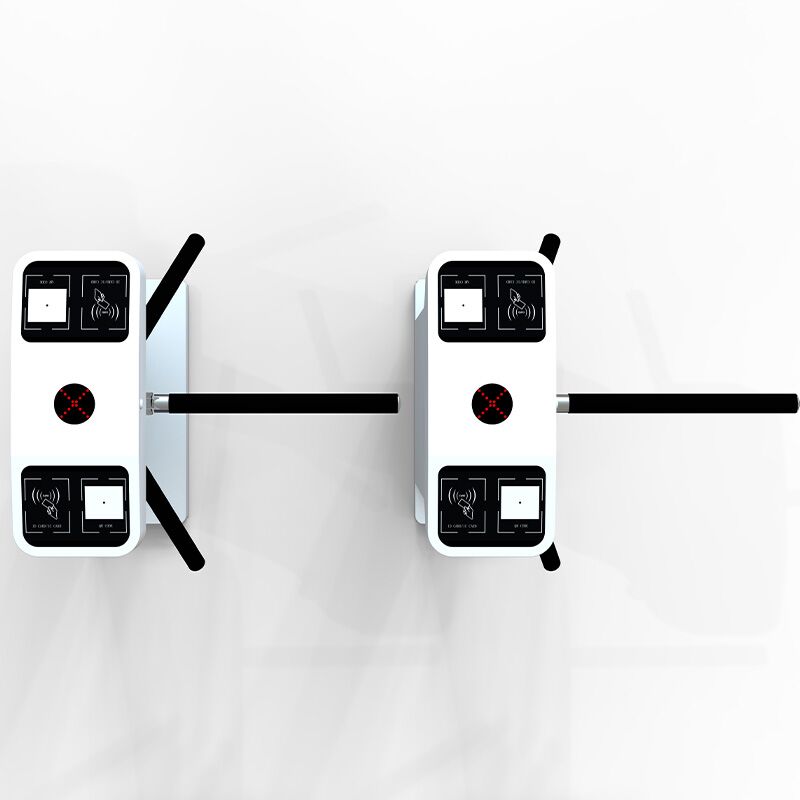

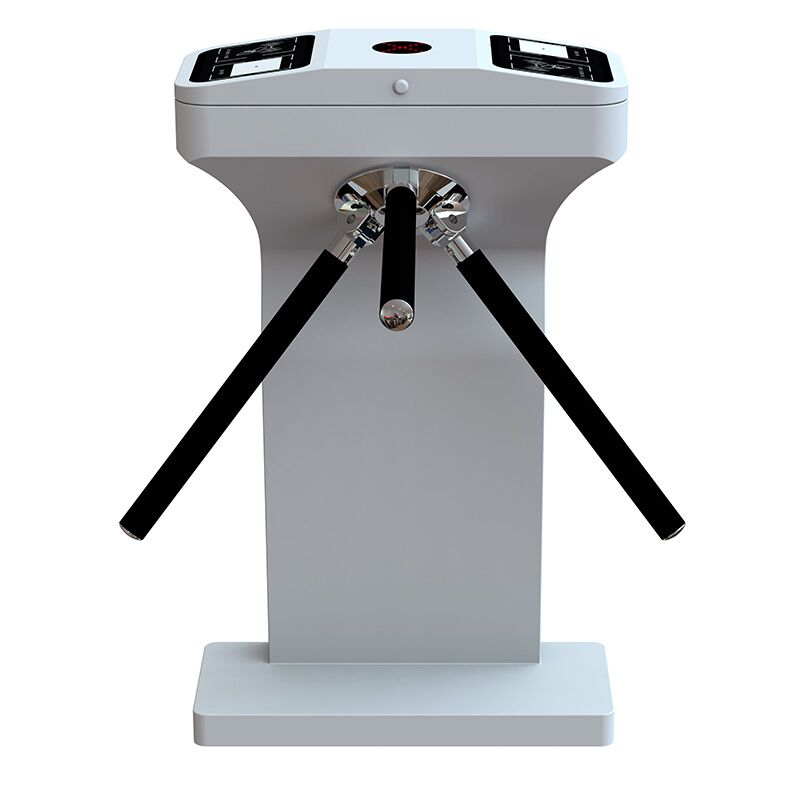

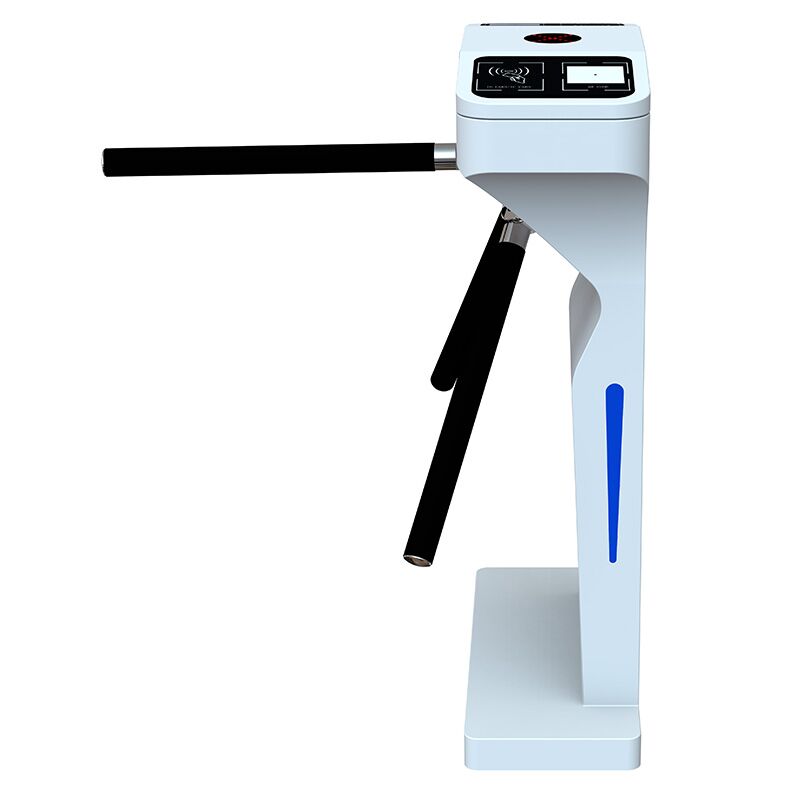

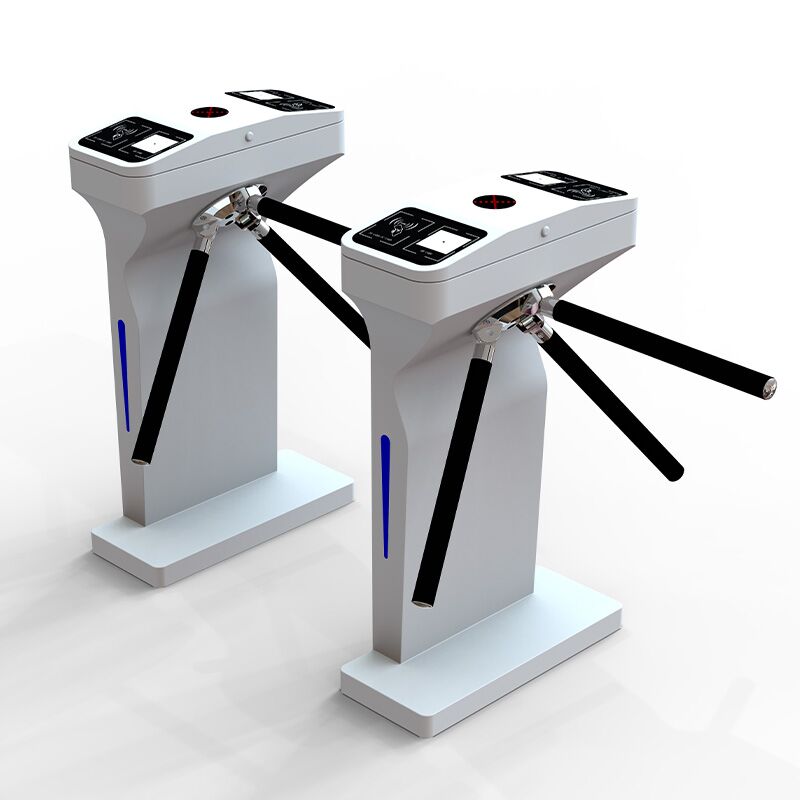

vertical tripod turnstile 5 vertical tripod turnstile
  • Vertical tripod turnstile is a compact and cost-effective entrance solution.
  • The vertical tripod turnstile has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, and durable.
  • Tripod turnstiles can be mounted for both indoor and outdoor locations. The IP rate is 54
  • It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face recognition, Barcode, IR thermometer).
  • The vertical tripod turnstile gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
  • The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.
  • Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life
  • The mechanism is mold design. All the components are precise.  It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.
  • The design of the vertical tripod turnstile makes only one person pass at one time.
  • Single-directional or Bi-directional is an option.
  • LED directional indicator light on top
  • Automatic clock function: if there is an open signal received,  but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.
  • When power is off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
