1. Size: 168*1000 mm (can be customized)

2. Arm material: 304 stainless steel

3. Passing speed: 40 person/min

4. Power supply: 110 V/220 V 50/60 Hz

5. Driving Consumption: 20 W

6. Gate Open Signal: Dry Contact/ Relay

7. Driving Motor: 24 V

8. Access turnstile Weight: 30 kg/pcs

9. Manual one is available

CE Certificated, ISO9001 Certificated.

MT311 Supermarket Swing Gate Brochure

Last updated on: April 27th, 2024 17:09 pm

SUPERMARKET SWING GATE carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

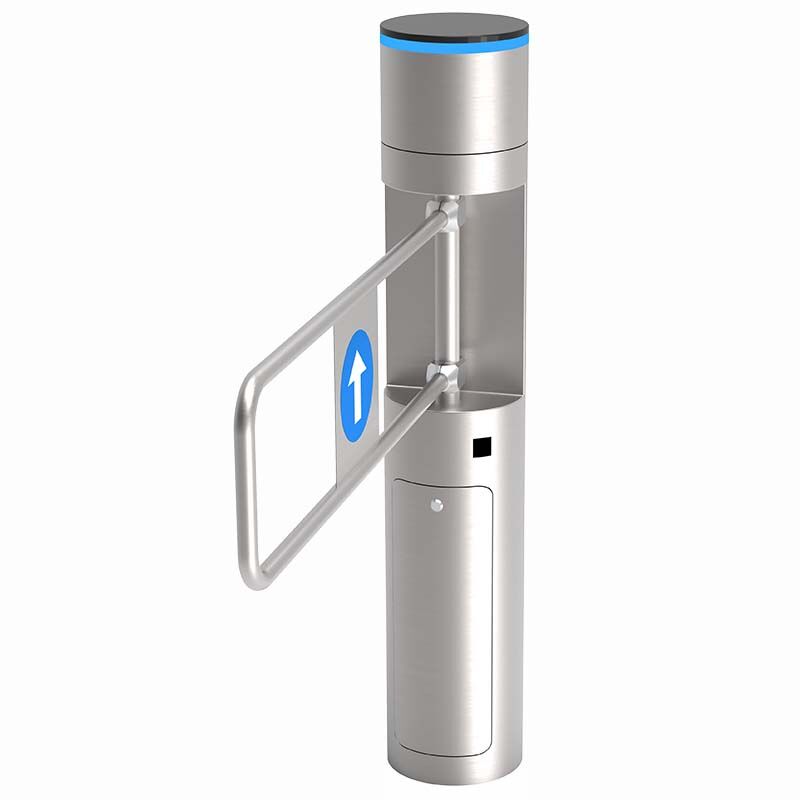

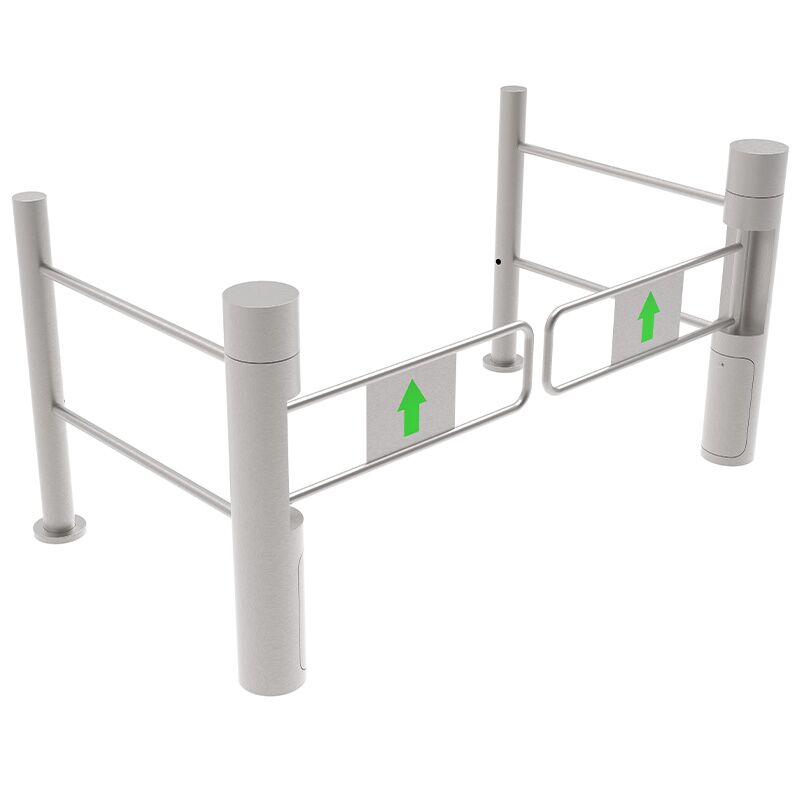

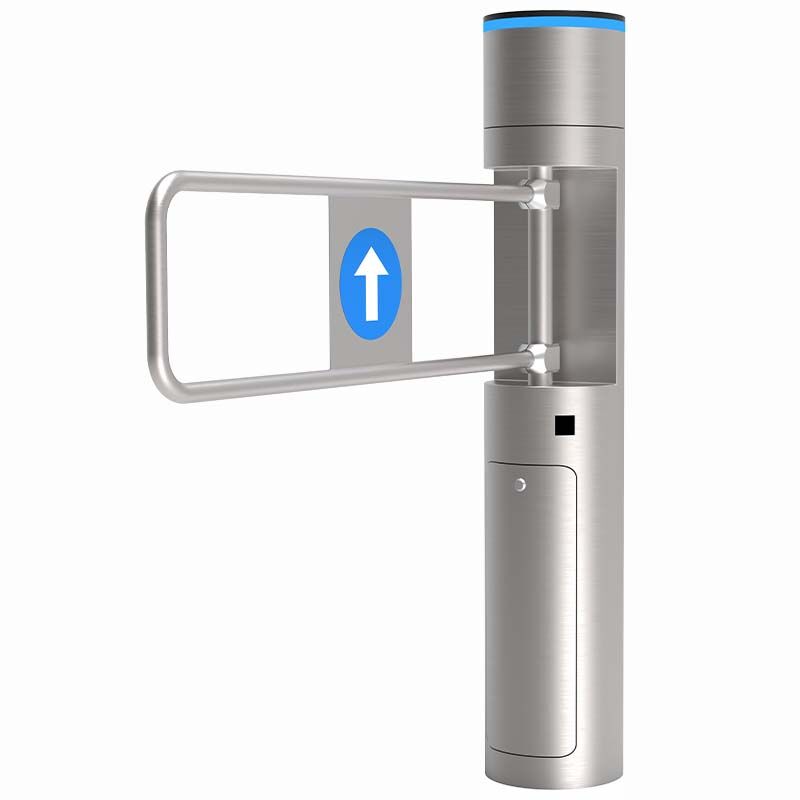

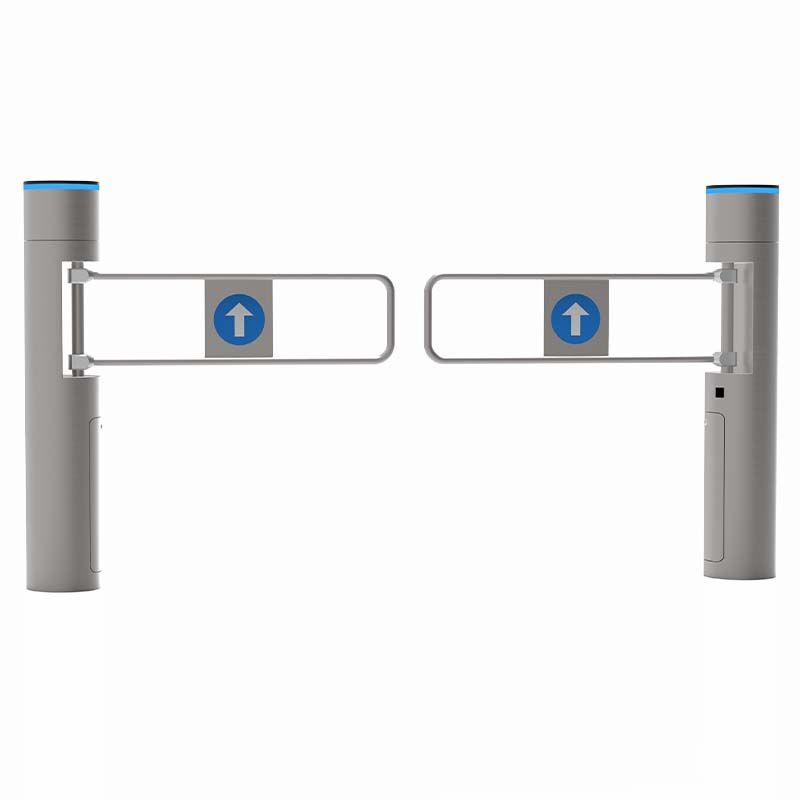

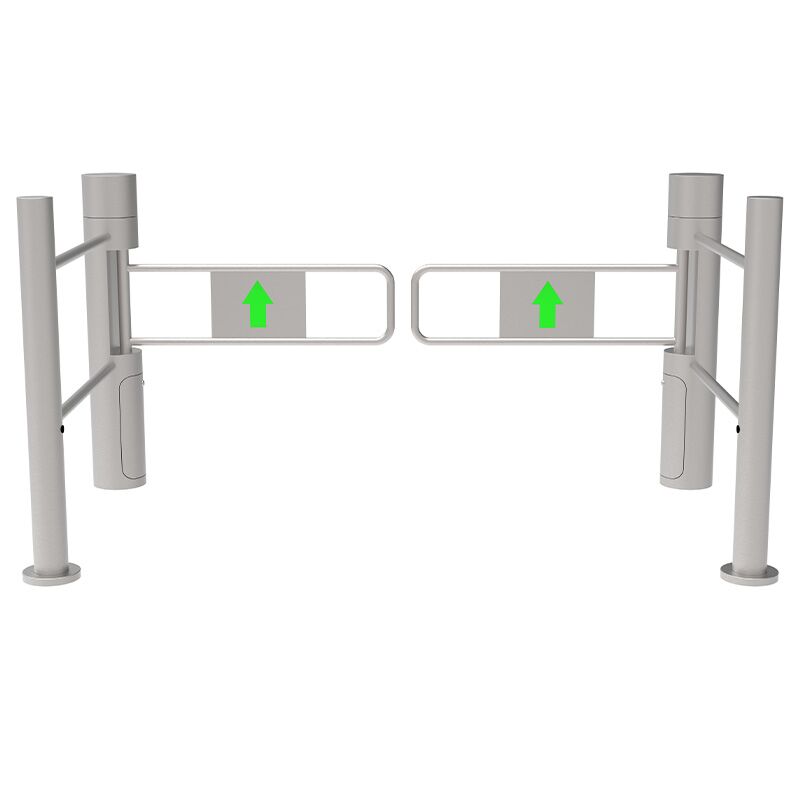

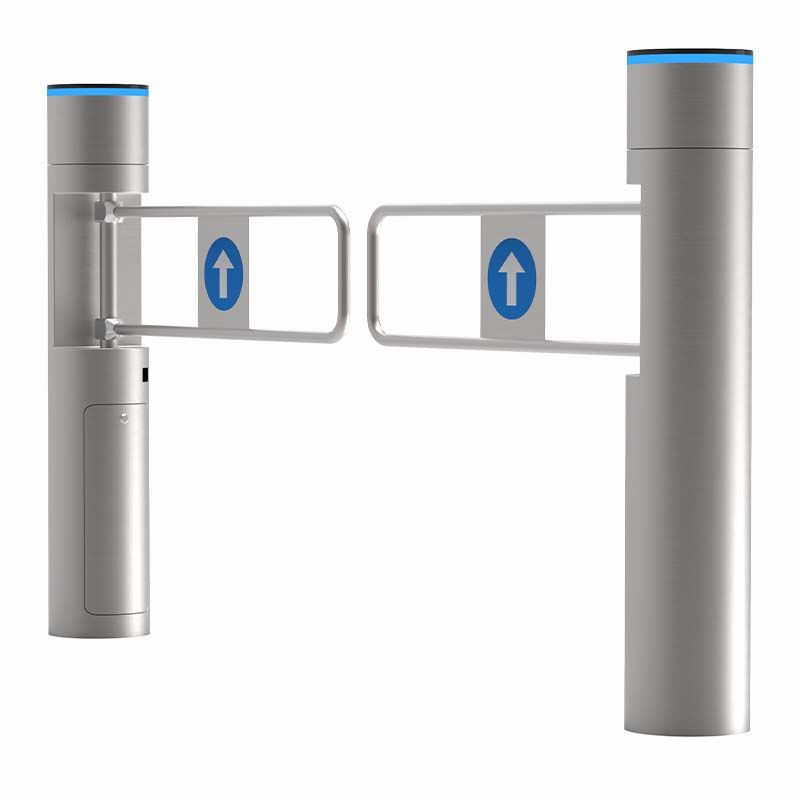

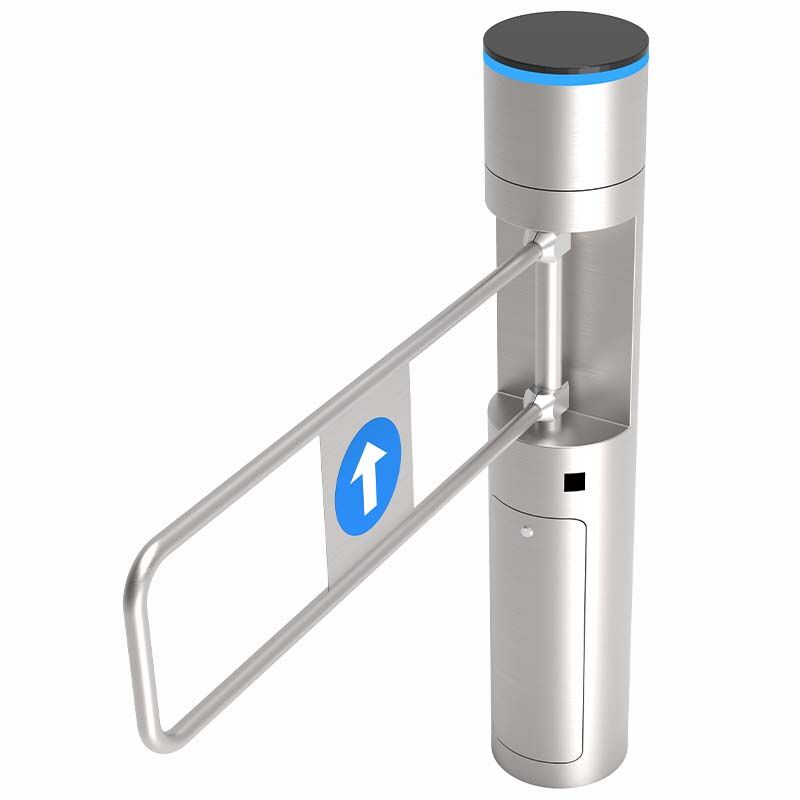

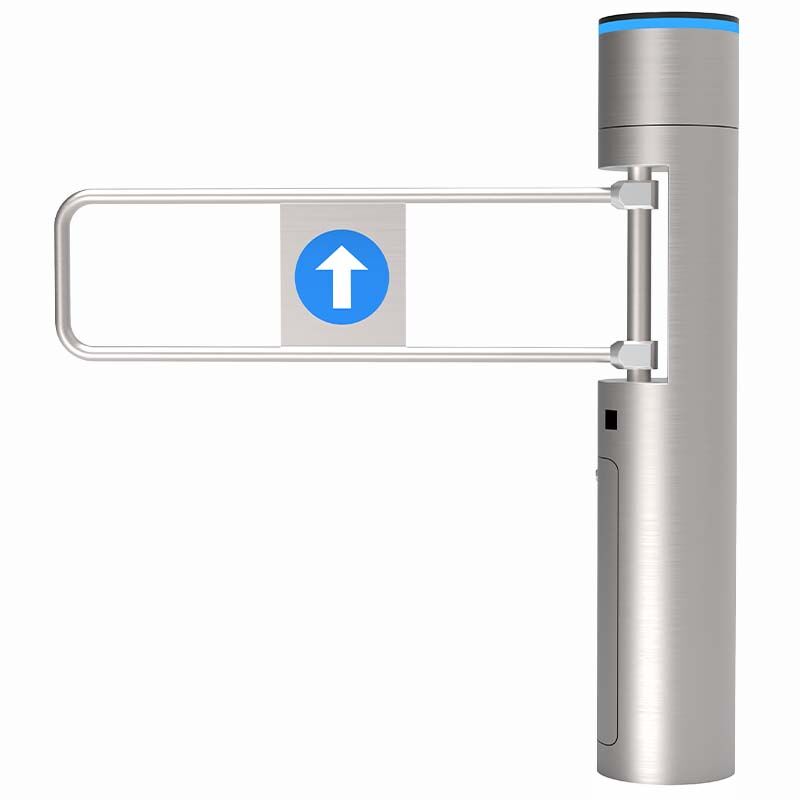

Supermarket swing gate is a kind of an infrared or radar automatic induction cylindrical swing turnstile gate, which is specially used for the entrance and exit of large supermarkets and unmanned supermarkets. The length of the wing rod of the supermarket swing turnstile can be customized according to the width of the supermarket entrance. Of course, this supermarket swing gate can also be used in warehouses, clothing stores, supermarkets, jewelry stores, shopping malls, cosmetics stores, bookstores, etc. The supermarket swing gate has the advantages of no manual detection, high efficiency, fast, safe, and good service.

The supermarket swing gate can be customized with the channel width according to your actual needs. For example, in the above video, our customers have customized supermarket swing barrier gate with ultra-wide channels. Of course, we also have another supermarket entrance turnstile swing turnstile gate that is suitable for supermarkets. If you think this supermarket swing barrier gate is not suitable for you, please check our other product: Supermarket Turnstiles

We can also create a rendering for you within a few minutes based on your actual scenario. We also provide detailed layouts and drawings, as well as installation drawings.

supermarket swing gate 8 supermarket swing gate 9

When someone enters the supermarket, the supermarket swing gate will open automatically. People will enter the supermarket in an orderly manner. They can’t go out. They can pass one way. They can also be used at the entrance door of some hospitals or warehouses. The supermarket entrance turnstile with a guardrail is suitable for controlling the flow of people entering the supermarket and maintaining standardized and orderly access to the supermarket. When no staff enters the supermarket, the supermarket swing turnstile gate will be automatically locked.

Generally, when people enter the swing turnstile door, the built-in radar or infrared sensor will detect the person, and the swing turnstile will open the door automatically. After the person passes through, the infrared or radar will also automatically sense, and then the supermarket turnstile gate will close automatically. Sometimes, in order to save costs, there are only two columns. This kind of supermarket swing barrier needs to be closed according to the set time.

The supermarket swing gate is widely used for supermarket warehouse pedestrian access control. The fence can be added on both sides to allow free access. It is in size, which can save space. It can also be used as an emergency exit. Mairsturnstile offers the best quality Swing turnstile gate at the cheapest price online. Professional turnstile manufacturer Mairs offers the cheapest supermarket swing gate turnstile barrier gate.

  • In case of an emergency, please cut off the power, Access turnstile will open automatically to allow free passage which is complying with fire safety requirements.
  • The access turnstile is suitable for supermarket access control.
  • The whole system runs smoothly, with low noise.
  • Max Arm length: 800 mm
  • Widely used for supermarket
  • Alarm function, if there is an illegal intrusion or reverse intrusion, the gate will alarm and the door will lock.
  • If it comes with a fence, the sensor can be added to realize free access. The middle sensor is to prevent pinching pedestrians.
  • Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
  • Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, and shopping stroller increasing the passing efficiency. It can also work as a single direction, which is widely seen in the Supermarket for only entrance.
  • Automatic reset function. If the people did not pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically.
  • It is a stainless steel arm. The lane width can reach 1600mm which can be used for bicycle or motorcycle access.

We can provide the entire security access control solution. If you have your own access control system, you can directly use our turnstile gate. If you don’t have one, we also provide a complete security access control solution. Please refer to the video below for details.
