1. Size: 480*280*980 mm (can be customized)

2. Lane width: 550 mm (can be customized)

3. Passing speed: 35 person/min

4. Power supply: 110V/220V

5. Weight: 60 kg

6. Input: Dry Contact

7.  Arm protective sleeve can be added

8.  Mechanism with hydraulic damper for shock-absorbing

9. Casing Material: 304 stainless steel

CE Certificated, ISO9001 Certificated.

Last updated on: April 27th, 2024 17:07 pm

TURNSTILE COUNTING SYSTEM carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

what is turnstile counting system?

Turnstile counting system is a part of turnstile access control system formed by adding a counting module on the pedestrian turnstile gate, which is mainly used to count the number of people passing through. Of course, the turnstile counting system also includes a pedestrian detection module, and an LED indication module. The counting module, pedestrian detection module, and LED indication module are embedded inside in the turnstile gate, the counting results can be displayed through the LED display screen, which can also be integrated into the turnstile gate. Through the counting module, the turnstile counting system can reset the count and set the upper limit of the count.

The turnstile counting function can be realized by matching the turnstile gate with the counting module. The counting results can be directly displayed on the display screen. Of course, this display screen can also be integrated into the pedestrian turnstile gate. Our turnstile gate can easily realize the people counting function, We can also customize special turnstile gates with people counting functions according to your actual needs.

Turnstile counting system, which is mainly used to record the number of people passing, because this function is required by many customers, and it is also one of the basic functions of the turnstile gate.

All turnstile gate mainboards are provided with a counting function. Each time they receive the opening and closing signals, they will record the number of times. However, this counting can only record the number of opening and closing gates, not the number of passes.

What is the principle of the turnstile counting system?

Principle of the turnstile counting system, Most turnstile gate mainboards have counter interfaces. The turnstile gate has a built-in counting module and pedestrian detection module to receive the gate opening signal, through the pedestrian detection module (generally infrared logic), if it is detected that the pedestrian has passed, the counting result can be displayed through the LED display screen. Only effective detection can be used as the number of passengers, which is accurate and effective.

As the most basic functional requirement of the turnstile, many customers are looking for this turnstile counting system. If you need to buy a turnstile gate with people counting function, please contact us, click the online chat in the lower-left corner, or add the QR code on the right to add my what’s app.

Basically, all our types of turnstiles can realize the people-counting function, Of course, we can also customize the turnstile gate to meet other functional requirements according to your actual needs. You only need to provide simple information, such as what functions you need to implement, how many channels do you need, one-way counting or two-way counting, etc. Our professional sales staff will provide you with appropriate turnstile security solutions.

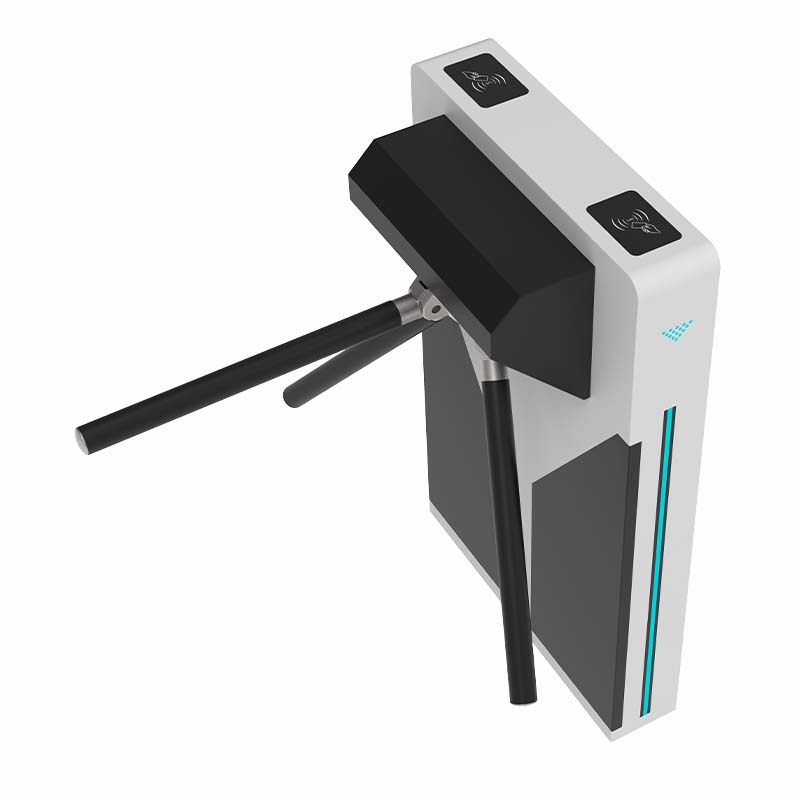

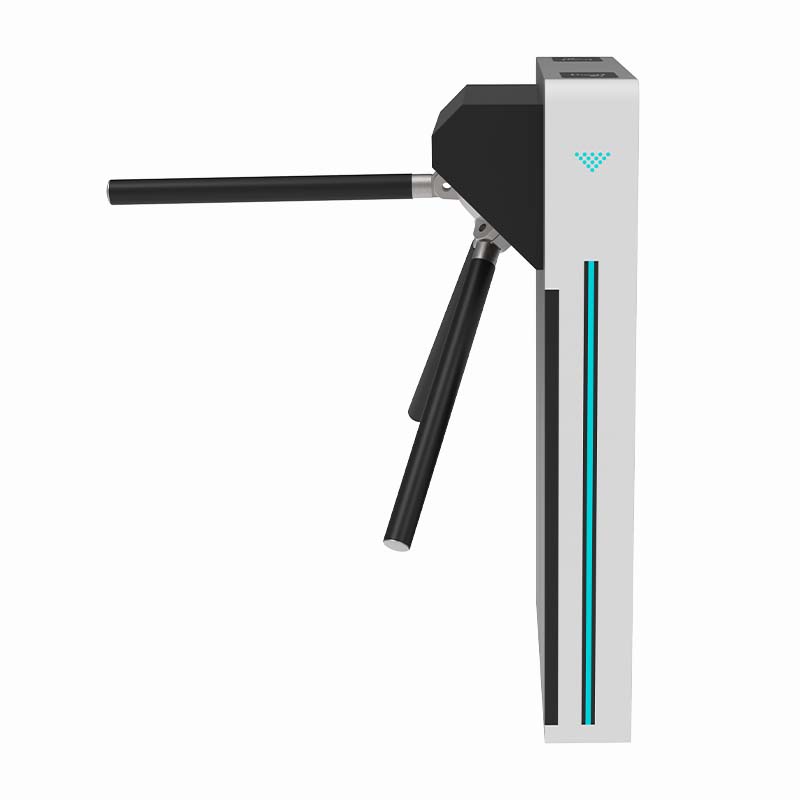

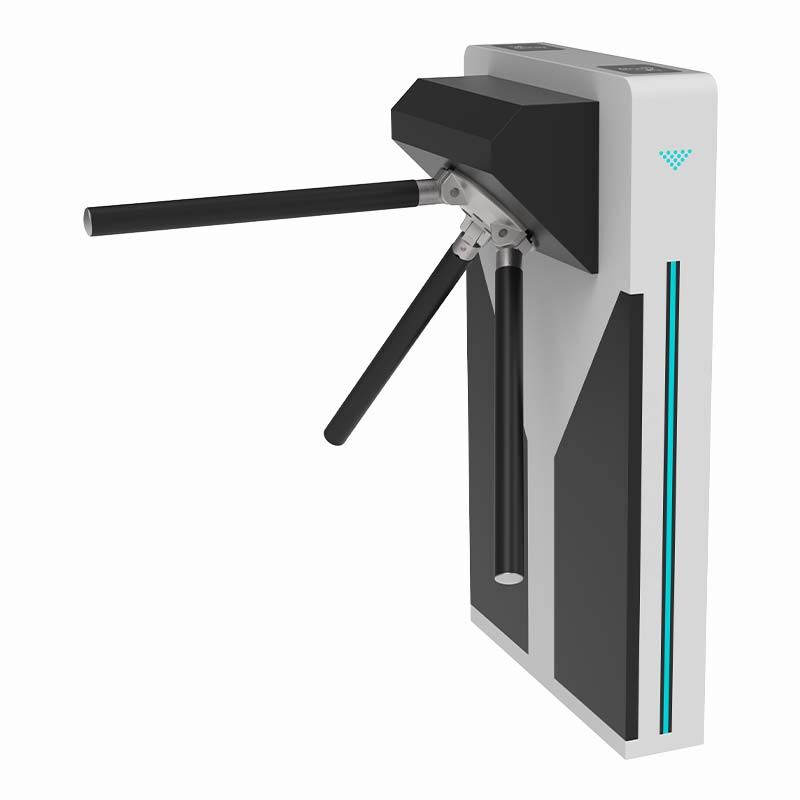

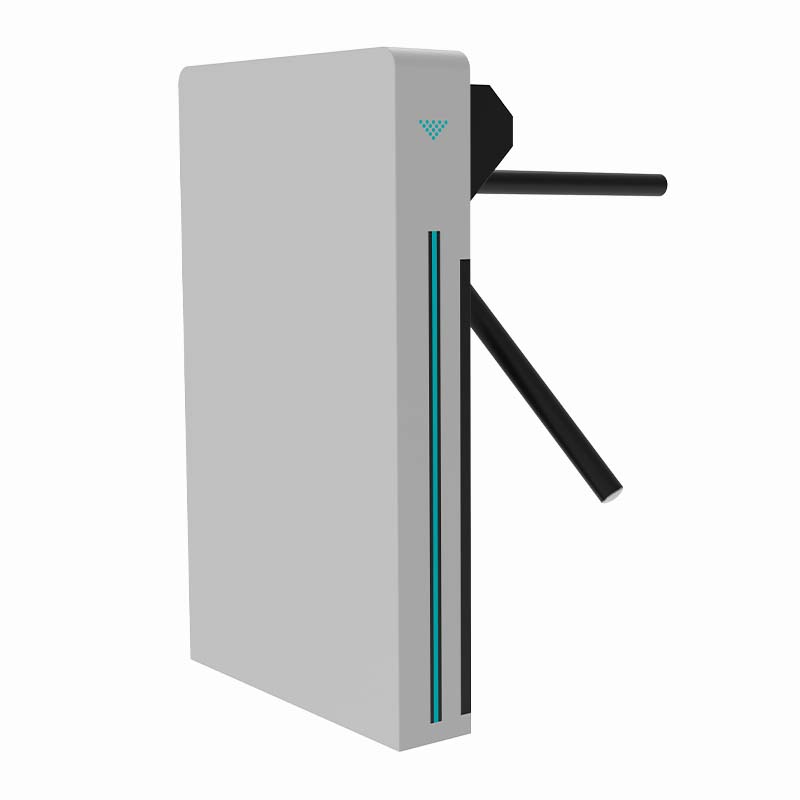

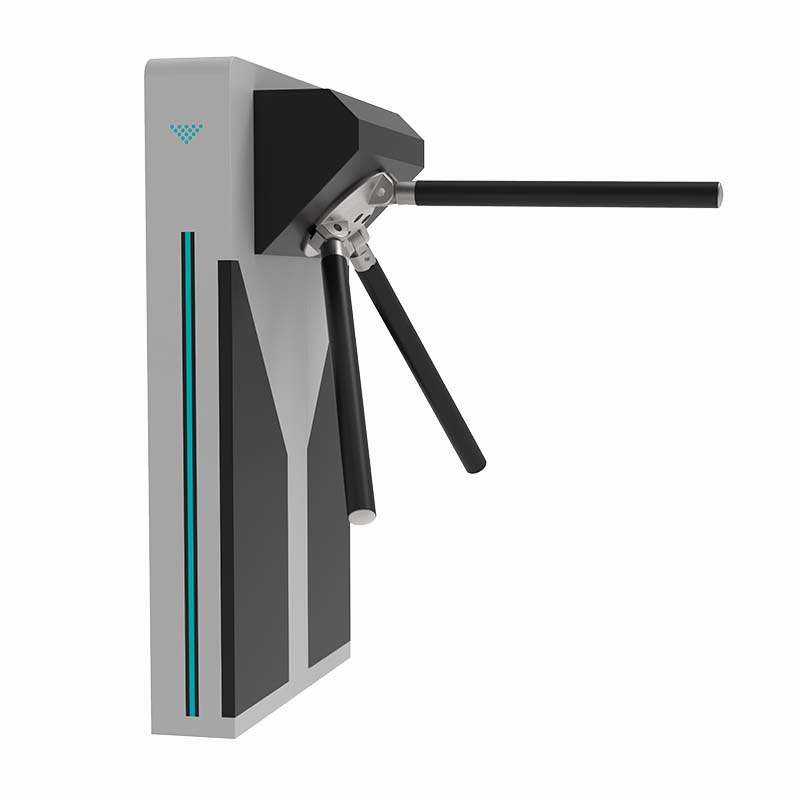

Electronic entrance access management stainless steel tripod turnstile price gate with high-grade stainless steel and hairline 400 surface treatment, this tripod turnstile is equipped with a Solenoid lock and our own designed mechanism to provide smooth and authorized management for pedestrian traffic.

  • Biometric tripod turnstiles are compact and cost-effective entrance solutions.
  • The biometric tripod turnstile has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, and durable.
  • Tripod turnstiles can be mounted for both indoor and outdoor locations. The IP rate is 54
  • It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face recognition, Barcode, IR thermometer).
  • The tripod turnstile gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
  • The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.
  • Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life.
  • The mechanism is mold design. All the components are precise.  It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.
  • The design of the tripod turnstile counting system makes only one person pass at one time.
  • Single-directional or Bi-directional is an option.
  • LED directional indicator light on top.
  • Best tripod turnstile price Philippines.
  • Automatic clock function: if there is an open signal received,  but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.
  • When power is off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.
