1. Size: 1400 * 290 * 980 mm
  2. Lane width: 550 mm
  3. Passing speed: 40 person/min
  4. Power supply: 110 V/220 V 50/60 Hz
  5. Driving Motor: 20 W
  6. Gate Open Signal: Dry Contact/ Relay
  7. Driving Motor: DC24V
  8. Flap turnstile gate Weight: 60 kg/pcs

Last updated on: September 2nd, 2021 16:16 pm

Turnstile gate Singapore carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card reader, fingerprint scanner, QR code scanner, face recognition camera, and so on.

Automation Flap Turnstile Gate Singapore with UHF RFID reader Access Control System Security for Tourism.

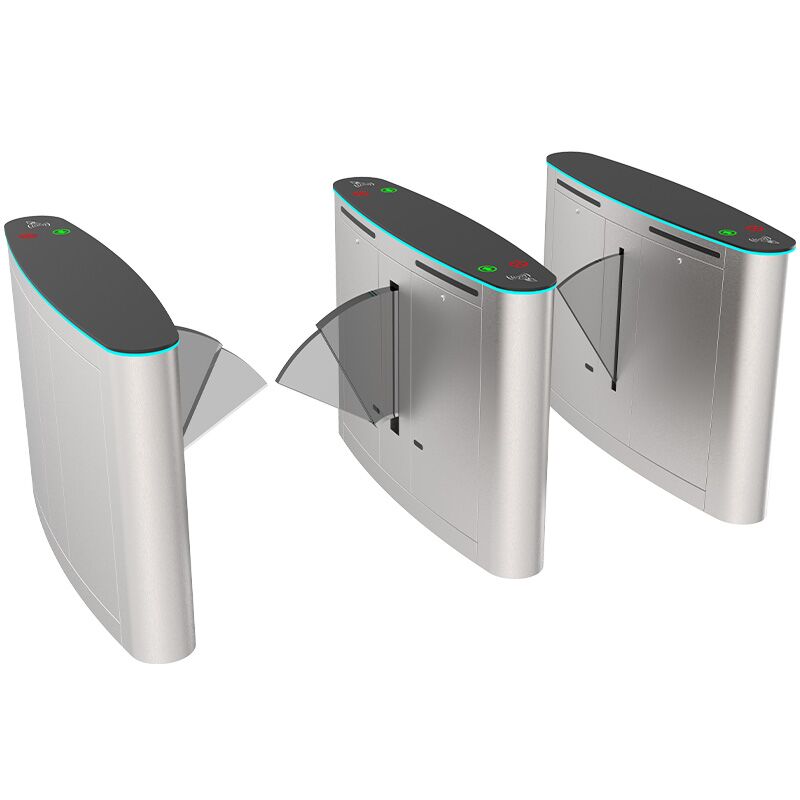

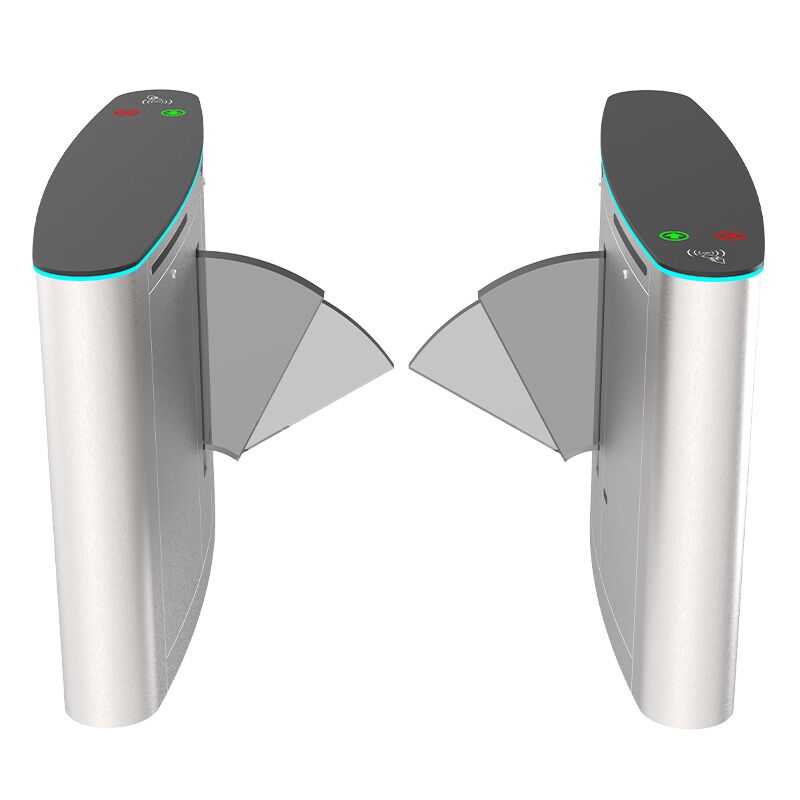

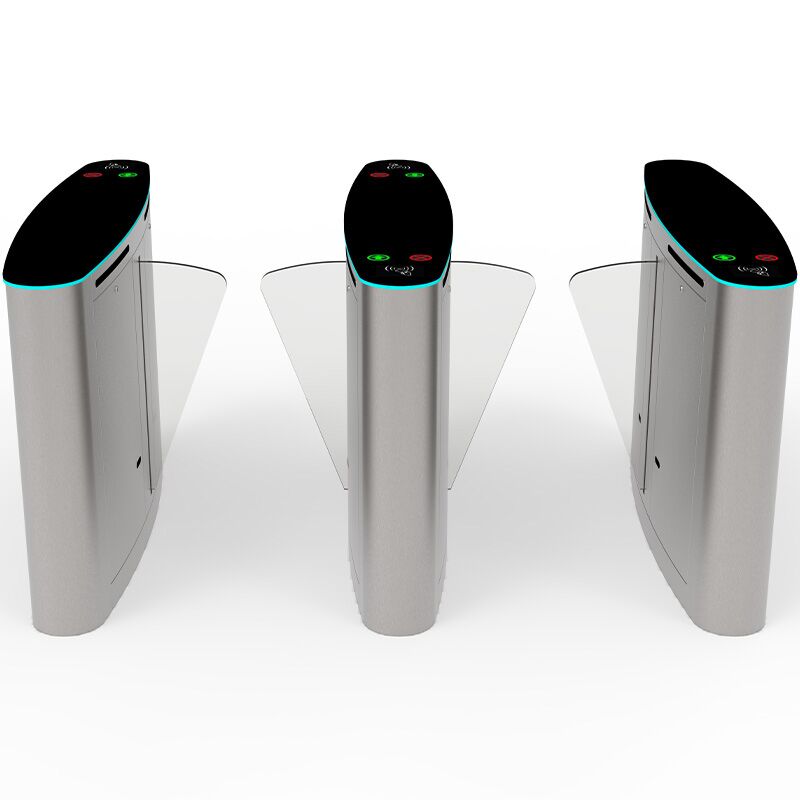

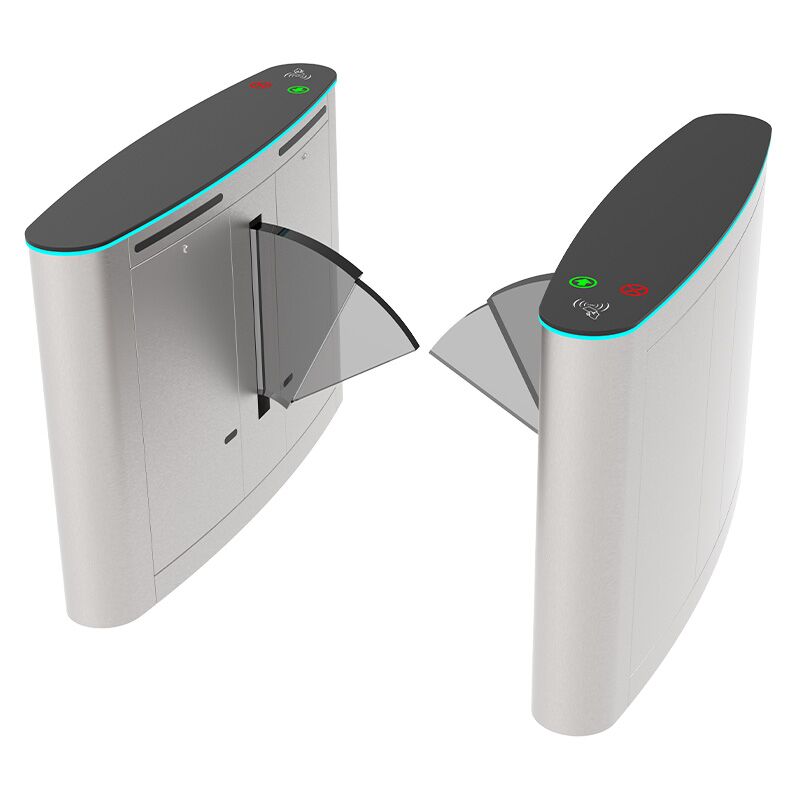

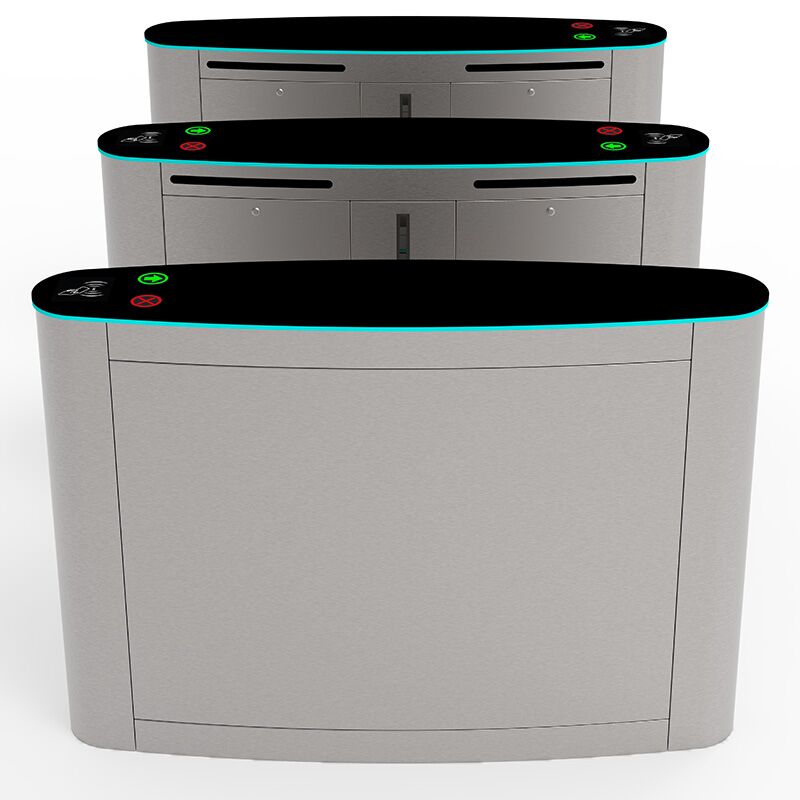

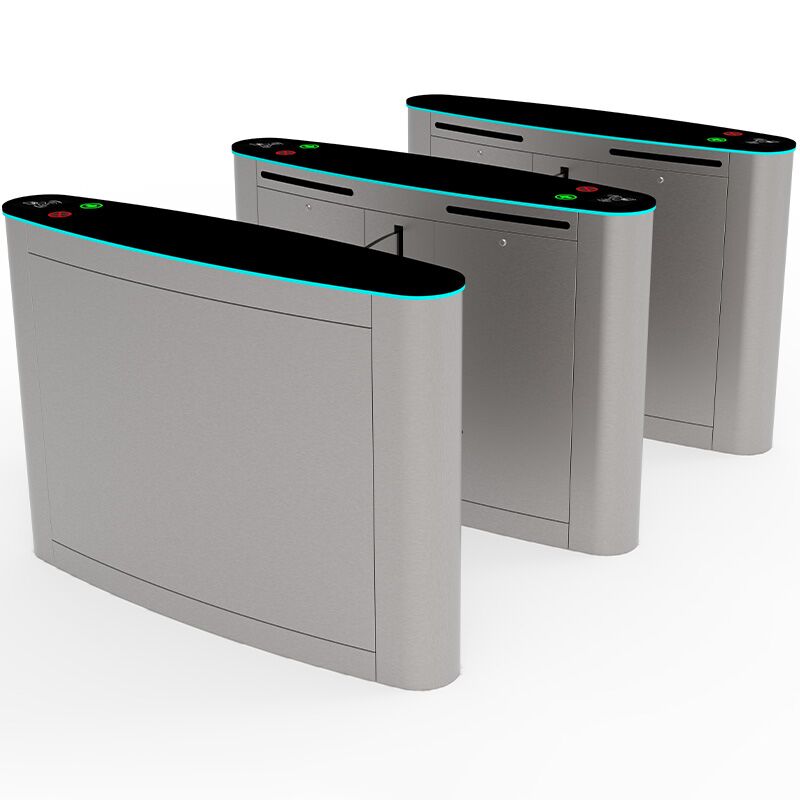

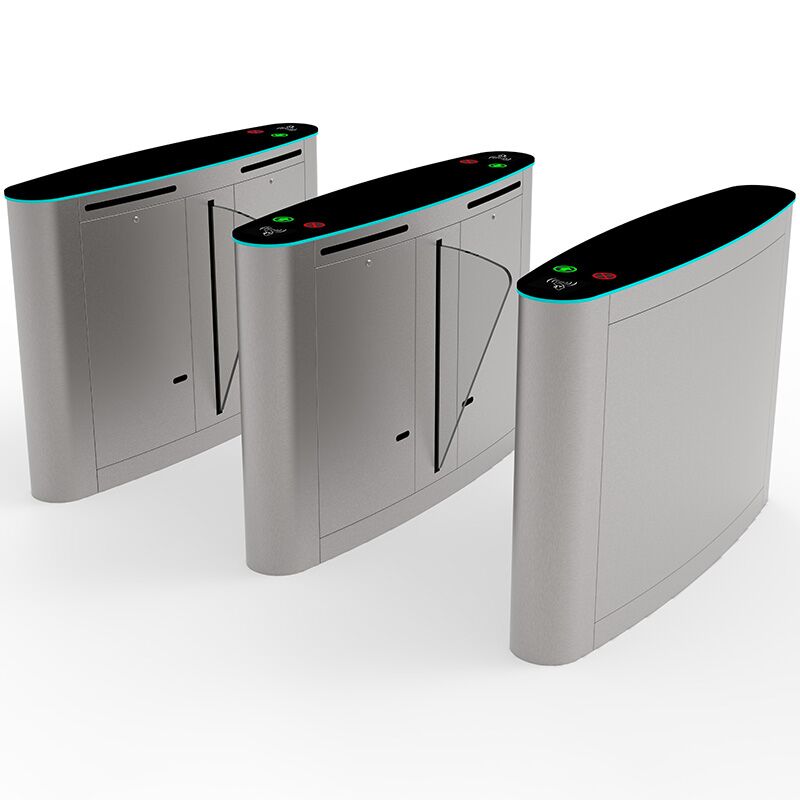

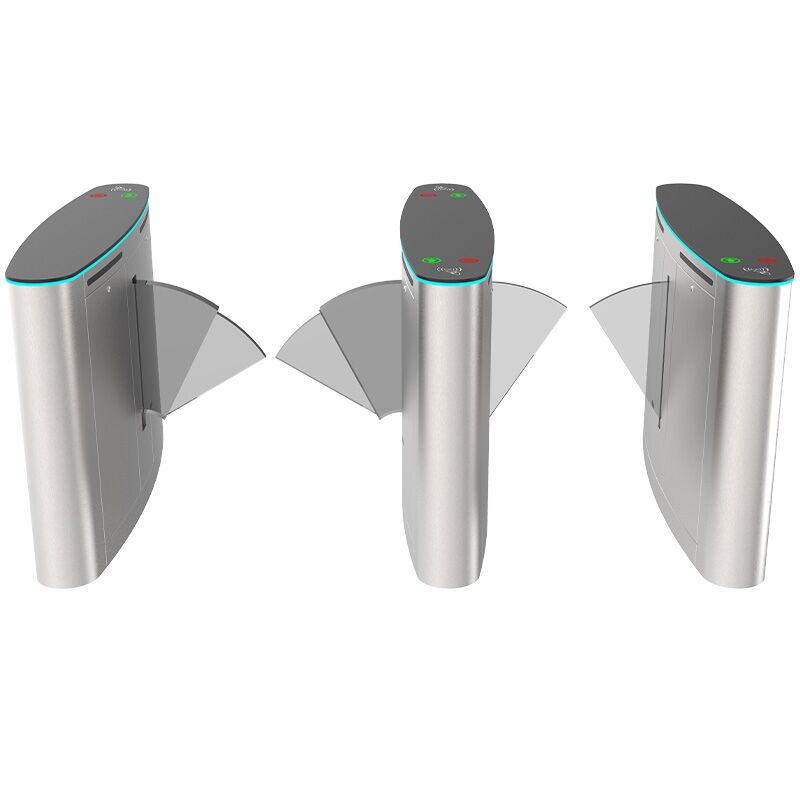

FLAP TURNSTILE GATE MT244 is a high-performance turnstile gate for pedestrian access control. The turnstile flap barrier gate is a high-tech product aimed at pedestrian access intelligent management, which is an upgraded product based on intelligent tripod turnstile, swing barrier, average wing barrier. This turnstile gate Singapore is well-processed and newly-designed with full functions, high grade, and mainly used in high-grade places such as top-grade community, intelligent mansion, hotel, subway, port, club, etc.

  • Turnstile gate Singapore is constructed to control people entering or exiting the restricted area. It is usually used in high pedestrian traffic flow locations in both directions.
  • The flap barrier turnstile gate Singapore casing is made of brushed 304 stainless steel which creates a seamless and nice entrance system to blend into most indoor environments.
  • It can be integrated with all third-party access control systems (e.g.: RFID access system, Push the button, Fingerprint and face recognition with temperature check).
  • In case of emergency, the FlapTurnstile arm will open automatically connecting with the battery or capacitor to allow free passage.
  • OpticalFlap Turnstiles are suitable for luxury and elegant entrance solutions.
  • The flap turnstile features fast speed, long-life, high performance, and high operation dependability
  • ¬†Alarm function, in case of illegal intrusion and reverse intrusion.
  • The infrared sensor will alarm and the LED light will flash to prevent pinch pedestrians.
  • Automatic reset function: flap arms will close automatically within 5s in default (can be setting) if passenger delays to
  • The flap turnstile gate Singapore will stay in the lock if someone wants to burst in without swiping the RFID card.
  • LED directional indicator on top and front post
  • Anti-reverse function, the turnstile alarms if someone wants to enter in the reverse direction.
  • Bi-direction or single direction running are options

turnstile gate dimensions MT224

turnstile gate dimensions MT224

flap barrier turnstile -

turnstile access control system -

shipping info -
