1. Size: 1400 * 185 * 1020 mm (can be customized)

2. Lane Width: 600 mm (Standard)  900mm( Handicapped)

3. Arms material: Acrylic

4. Passing speed: 40person/min

5. Power supply: 110V/220V 50/60hz

6. Brushless motor

7. Gate Open Signal: Dry Contact/ Relay

8. Swing turnstile Driving Motor: 24 V

9. LED on the sideboard is optional

CE Certificated, ISO9001 Certificated.

MT343 Outdoor Turnstile Brochure

Last updated on: March 8th, 2023 13:04 pm

This outdoor turnstile carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on.

Outdoor turnstile is a kind of pedestrian access control turnstile gate that can be used outdoors, different from an indoor turnstile, it has a waterproof and leakproof function and can be used in various harsh exterior environments. It is mainly reflected in dust-proof and waterproof, shared by people and vehicles, anti-violence, and anti-sunlight interference. Various types of turnstiles (tripod turnstile gateswing turnstile gateflap barrier gate, sliding turnstile, full height turnstiles, etc.) can be made into outdoor turnstile machines.

If you need any type of outdoor turnstile, Or you don’t know which style of turnstile gates can be made into outdoor turnstiles, please click the online chat button in the lower-left corner to talk with us directly or inquiry us

Mairs outdoor turnstiles are usually made of 304 stainless steel. Of course, if you have higher requirements for product materials, you can also ask us to customize special 316 stainless steel materials. 304 and 316 are classified as stainless steel. There is no difference in essence. They are stainless steel, but there are differences in the subdivision.

The quality of 316 is higher than that of 304. 316 steel is added with Mo element on the basis of 304, This element greatly improves the corrosion and wear resistance of stainless steel. Of course, 316 stainless steel is a little more expensive. We have customers in Dubai, UAE, and Riyadh, Saudi Arabia, who have specially customized 316 stainless steel full-height turnstiles to adapt to more extreme weather and environments.

Outdoor turnstile is mostly used at the gate of enterprise units, industrial plant areas, and high-end residential areas. There is semi-open air and full open air. How to ensure the normal use of the turnstile machine outdoors? The most important thing is to make the turnstile machine waterproof.

Outdoor turnstile often encounters rain. Therefore, outdoor turnstiles must have good water resistance. In other aspects, according to the environmental requirements of the installation site, the outdoor turnstile must have certain abilities of high-temperature resistance, cold resistance, sunlight interference resistance, condensation resistance, etc.

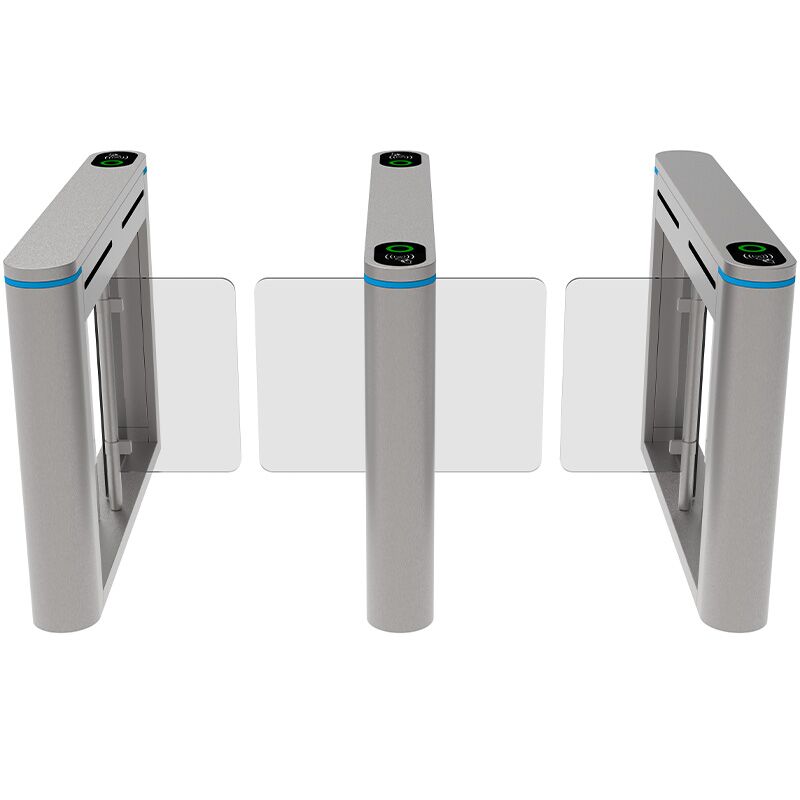

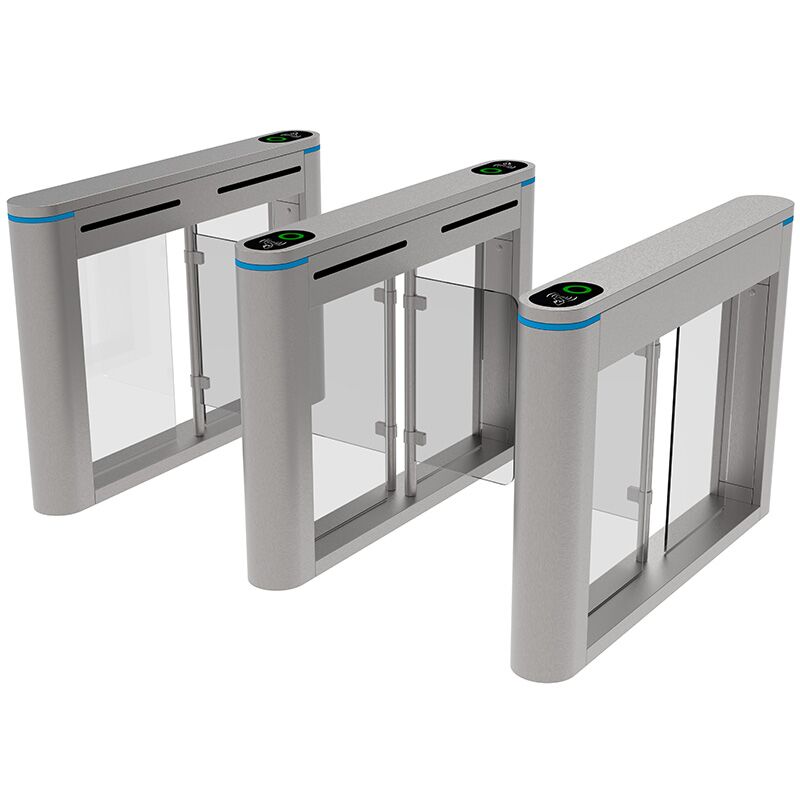

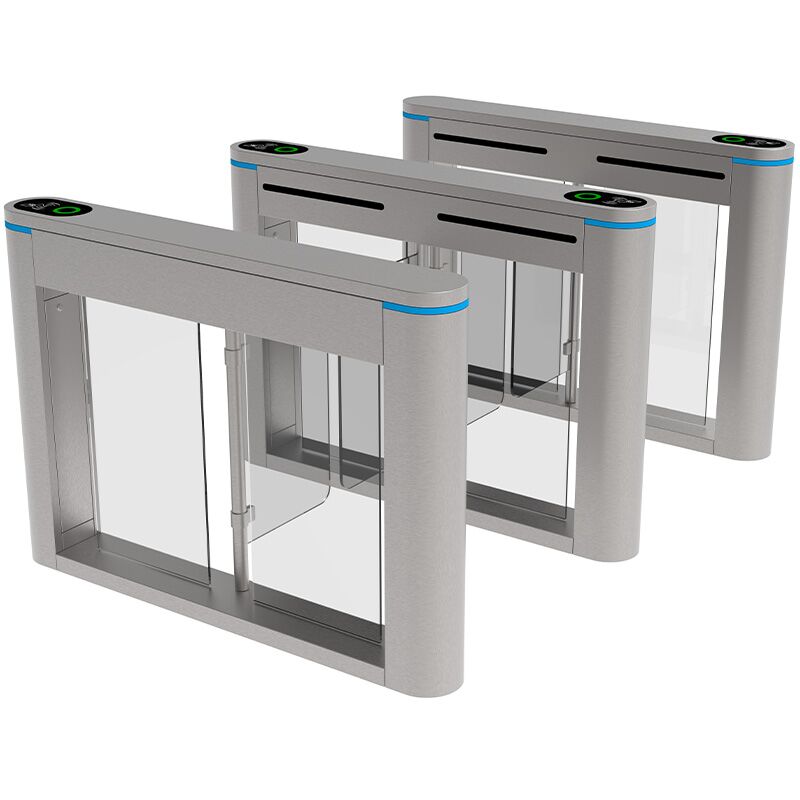

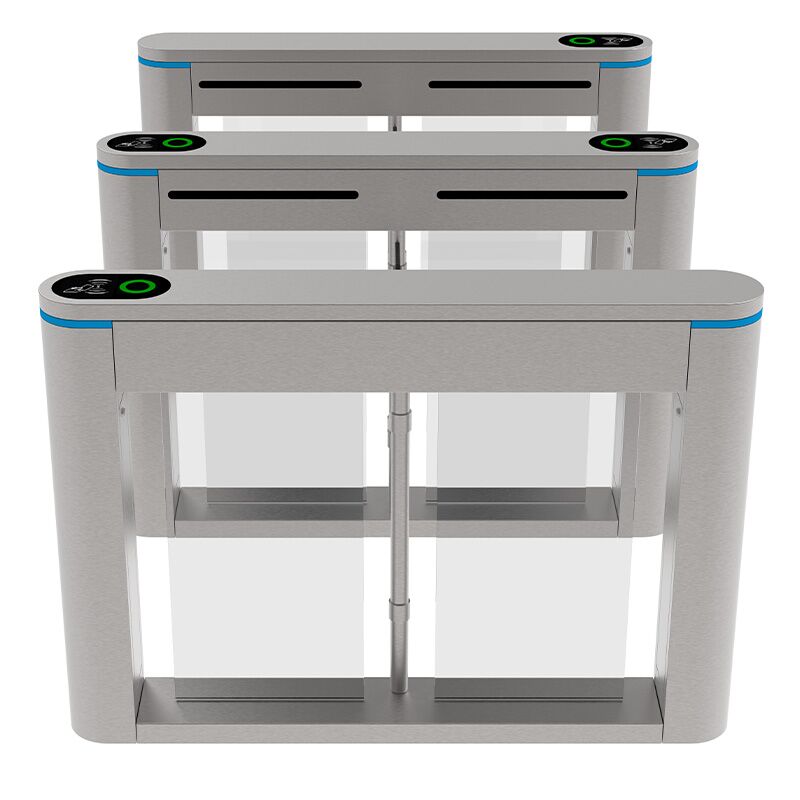

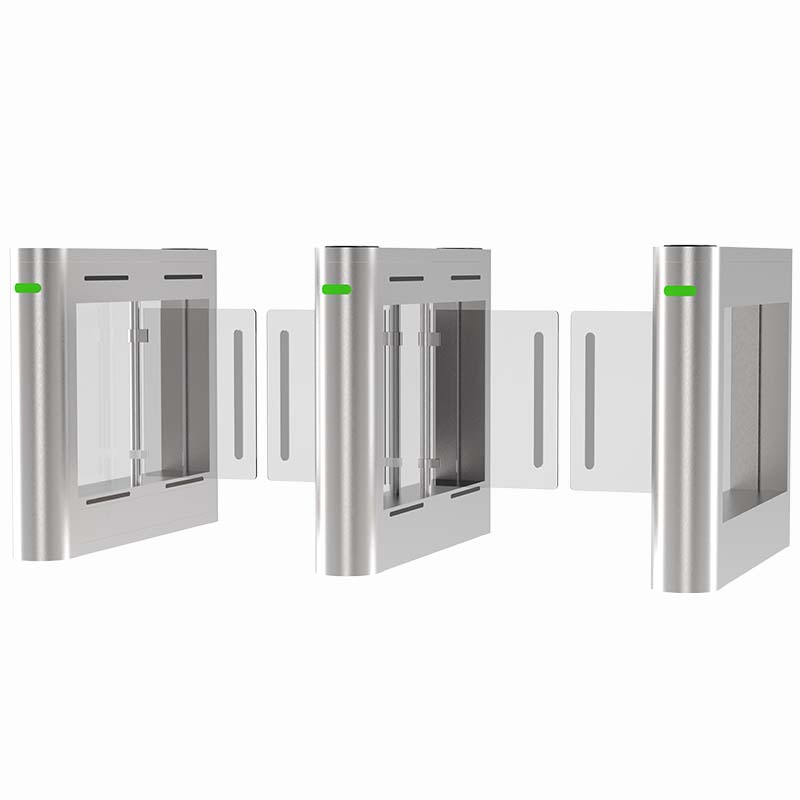

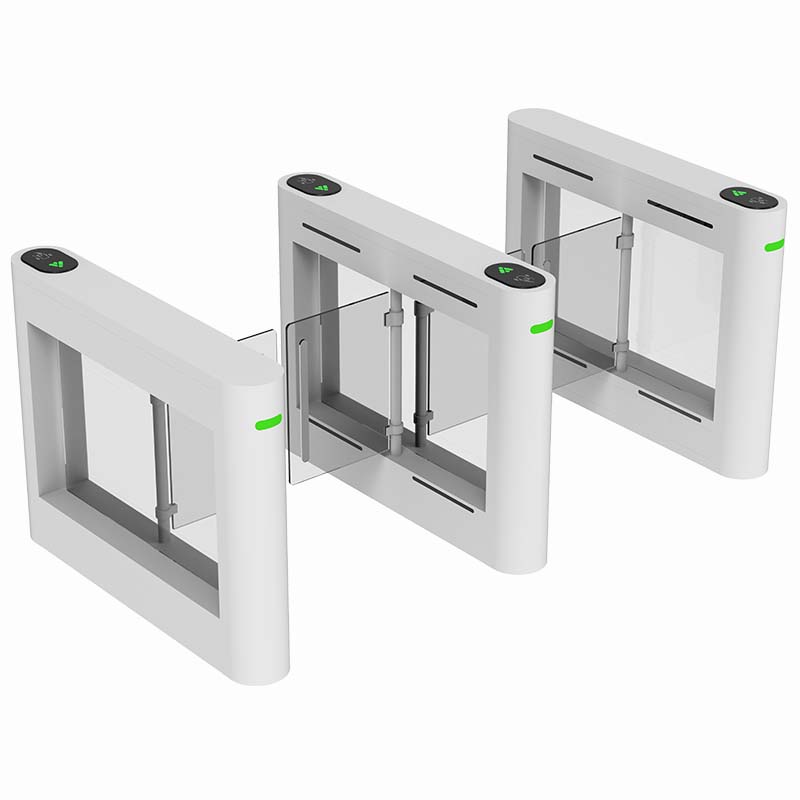

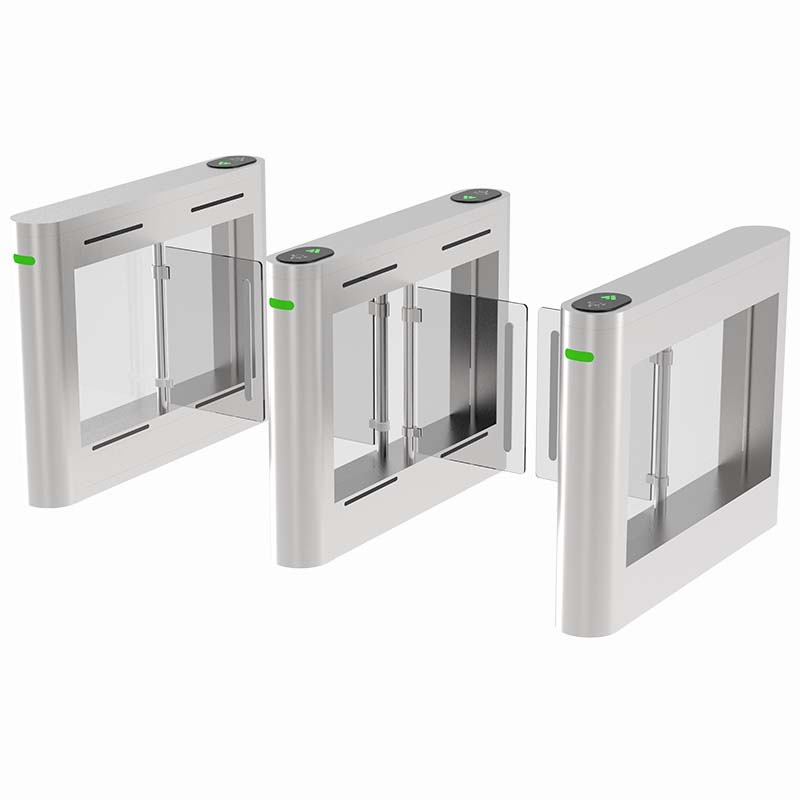

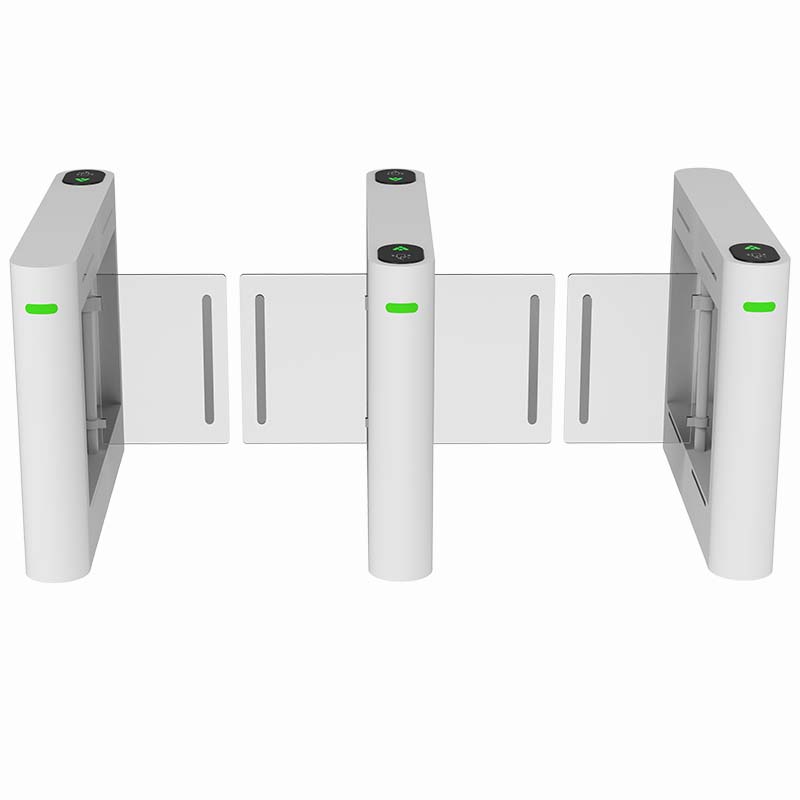

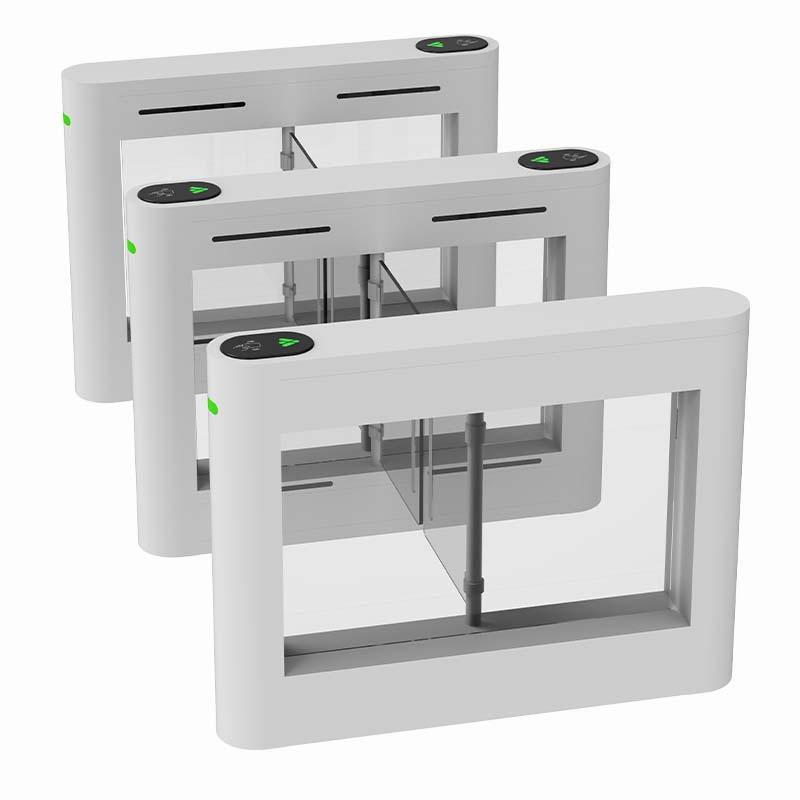

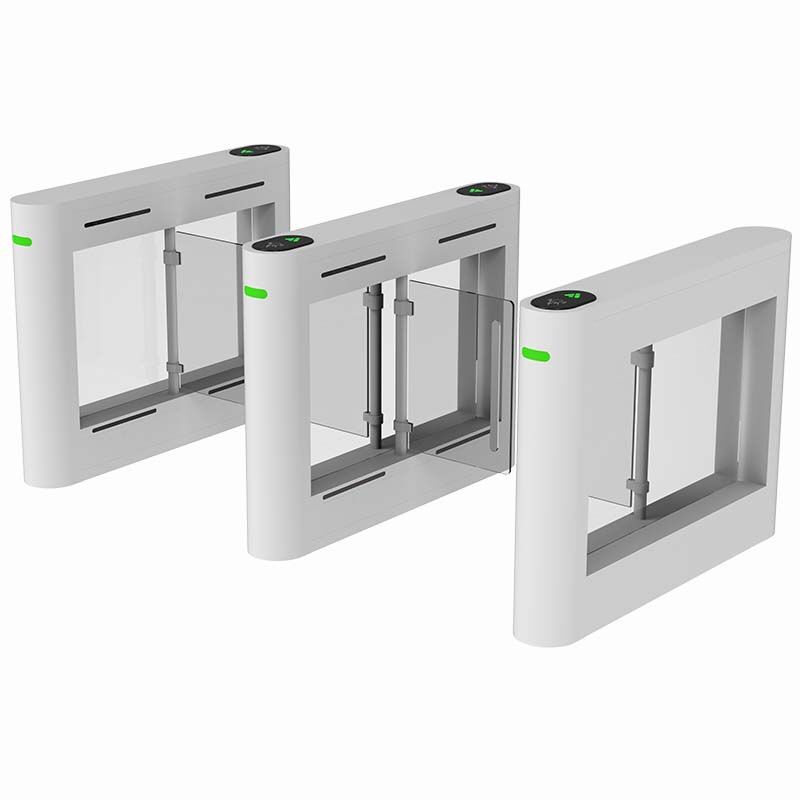

Our SUS 304 stainless steel security swing barrier turnstile provides as wide as 1100 mm lanes to accommodate bicycles, wheelchairs, motorbikes, trolleys, luggage, etc. SUS 304 stainless steel turnstile waterproof outdoor swing turnstile for apartment entrance. It is mostly used at the gate of enterprise units, industrial plant areas, and high-end residential areas.

  • Outdoor swing turnstile gate with a high traffic speed, which is usually applied in the location with high traffic flow in bi-direction running.
  • The chassis is made from hairline texture 304 stainless steel, which creates a seamless and elegant access point to match most indoor environments.

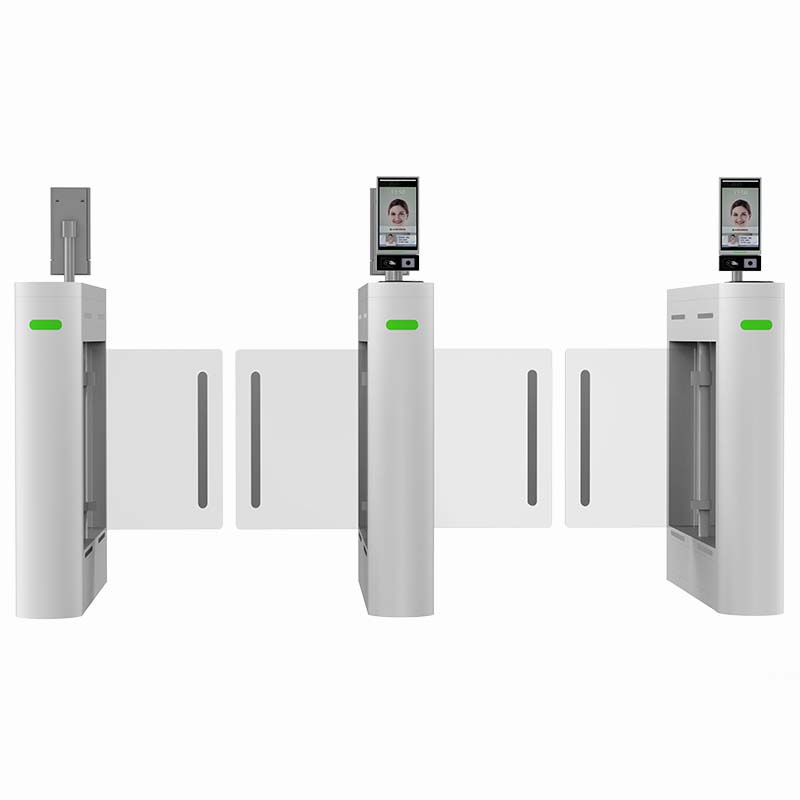

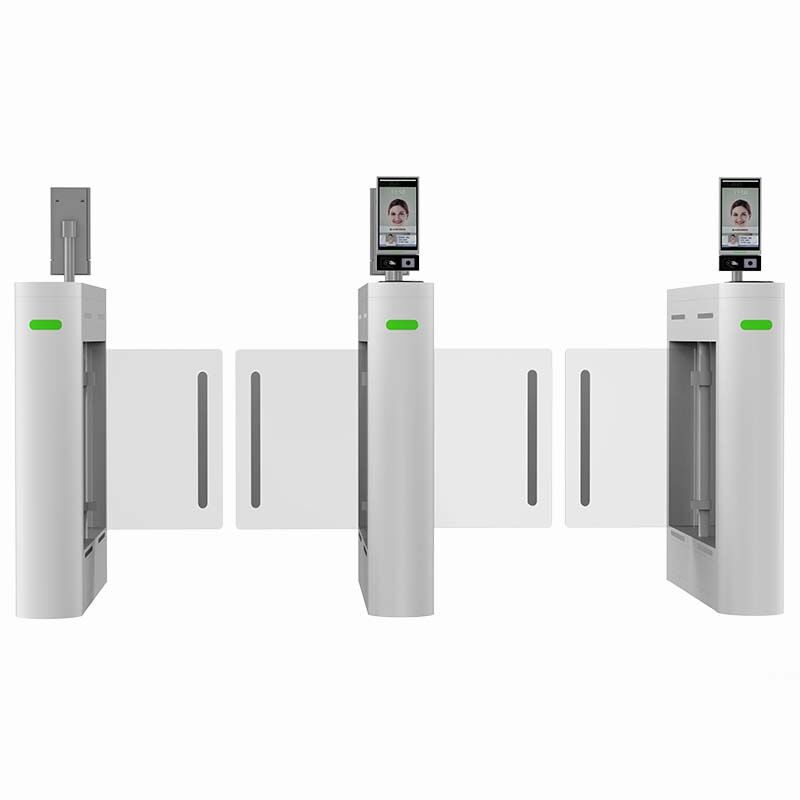

  • This exterior turnstile comes with international standard RS485 and relays Which makes it widely compatible with all existing software in the industry and almost all of the access control like RFID systems, Bar codes systems, Face recognition systems, fingerprint systems, etc.
  • In case of emergency, cut off the power, and the Slim swing turnstile gate will open automatically to allow free passage which is complying with fire safety requirements. But it has to come with a battery. As for export, the battery is sensitive, we can use the capacitor to replace
  • The exterior turnstile is suitable for luxury and high-end entrance solutions.
  • The whole system runs smoothly, with low noise, and high speed.
  • Swing arm thickness: 10 mm
  • Alarm function, if their an illegal intrusion or reverse intrusion, the gate will alarm and the door will lock.
  • There is a total of 5pairs of infrared sensors. The middle sensors are to prevent pinching pedestrians.
  • Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
  • LED indicator. Red cross and green arrow. There are also LED indicators on the front post.  The LED light can be added to the arms.
  • Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increasing the passing efficiency.
  • Automatic reset function. If the people did pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically.
  • Anti-bump, Anti clamp, the exterior turnstile gate comes with brushless during operation if someone hits the arm, the exterior turnstile gate will reset automatically. This function effectively prevents pedestrians, especially children from bumping, clipping, striking, etc.

outdoor turnstile gate dimensions MT343swing turnstile casesturnstile gate access control systemturnstile gate package
