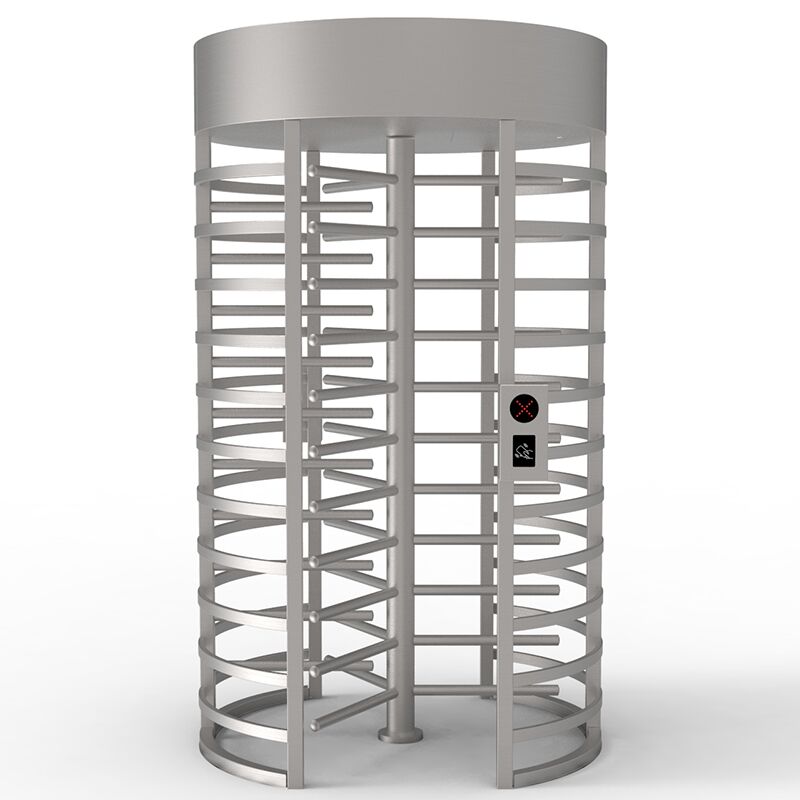

High Security Full Height Revolving Turnstile MT405


1. Size:1500*1500*2200 mm (can be customized)

2. Lane Width: About 650mm (can be customized)

3. Passing speed: 30 person/min

4. Power supply: 110V/220V 50/60Hz

5. Solenoid: DC24V

6. Gate Open Signal: Dry Contact/ Relay

7. Logic Voltage: DC24V

8. Casing Material: 304stainless steel

SKU: MT405 Category: Tag:

Last updated on: January 6th, 2022 18:05 pm

Revolving Turnstile Round type high-security full height turnstile carries a 2 years warranty and durable maintenance and repair support.

We can provide OEM and ODM services. We also provide biometric devices, such as IC/ID card reader, fingerprint scanner, QR code scanner, face recognition camera, and so on. If you need to integrate these devices on the full height turnstile gate or have any questions, please contact us

Revolving turnstile is developed from the tripod turnstile gate and draws lessons from the characteristics of the rotary door. It can be divided into full height revolving turnstile and half height revolving turnstile according to height. This revolving turnstile belongs to full height revolving turnstile. If you need a half-height revolving turnstile, please check our another product: half height turnstile

This full height turnstile is beautiful and durable as a whole. It is not easy to rust after wire drawing. Generally, 20-35 people can pass through one minute at a time, and 60 people can pass through one minute in case of evacuation. The communication interface supports RS485 / RS232; TCP / IP interface (customizable).

Compared with indoor swing turnstile gate, flap barrier gate, and other turnstile equipment, this full height revolving gate used in an outdoor environment has great advantages in appearance and function.

Full height turnstile can prevent unauthorized personnel from entering through card swiping or face recognition system, and can also prevent unauthorized personnel from drilling and climbing. In this way, it can strengthen the safety management of the residential community to ensure the safety of the community environment and personnel

Reliability of the mechanism: 5 million, no-fault
Mechanism with hydraulic damper for shock-absorbing
Drive: Semi-automatic Operated
Arm length: 600 mm
The direction of rotation: Bidirectional
Emergency situation: In the event of an emergency or isolation of the power supply the Rotating Door can be configured to Fail-Safe i.e. rotates freely or Fail-Lock
Humidity: ≤95%
Working temperature:-25℃~60℃

Optional Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
Communication distance: ≤1200 m
Communication interface: RS485
The time needed for opening: 0.2 s
Working environment: Indoors or outdoors
Anti tailgating: the turnstile will stay in the lock when open around 60degree(3arms) or 45degree(4 arms) so the gate cannot run in the reverse direction to prevent tail-gating
Application range: Community, Factory, Construction site, School, Place of the resort, etc

revolving turnstile size
