Last updated on: December 12th, 2025 21:17 pm
What is an outdoor turnstile?
Outdoor turnstiles are various types of turnstiles used outdoors, often installed in outdoor environments such as scenic area entrances, park gates, commercial areas, stations, construction sites, and other places that require personnel control.
Choosing a suitable outdoor turnstile gate can not only improve traffic efficiency and safety, but also adapt to harsh outdoor environmental conditions. We will provide diverse solutions to meet the usage needs of outdoor turnstiles. These solutions aim to meet the needs of users to the greatest extent possible and solve practical problems through optimal choices. This article will analyze the characteristics, applicable scenarios, and representative models of five mainstream outdoor turnstile gates – outdoor tripod turnstile gate, outdoor flap barrier gate, outdoor swing turnstile, outdoor speed gates, and outdoor full height turnstile gate – to help you make informed decisions.
Outdoor waterproof tripod turnstile MT113-2: a classic and reliable outdoor traffic guard
The tripod turnstile gate is one of the oldest and most widely used types of gate machines in outdoor environments. Its structure is sturdy and has strong impact resistance, especially suitable for places with high pedestrian flow and strict management requirements. For customers seeking cost-effectiveness and requiring outdoor use, they prioritize both budget and performance. In this case, we recommend the outdoor tripod turnstile gate MT113-2.
This outdoor tripod turnstile gate MT113-2 is made of 304 or 316 stainless steel, with a surface treated with wire drawing, sandblasting, and anti-fingerprint treatment, or fluorocarbon spraying, which can resist salt spray, acid rain, and ultraviolet radiation for a long time. Its structural design is small and exquisite, occupying a smaller area, making it very suitable for corrosive outdoor environments such as swimming pools, residential areas, construction sites, beaches, and chemical areas.
This outdoor tripod turnstile gate has already considered waterproofing in its structural design. The top cover of the gate adopts a concave design, and the lower gate case is embedded into the upper cover, so rainwater will not enter the case from the top. Secondly, if facial recognition social security is installed on top, the connection between the upper facial recognition machine and the gate will be connected in a similar way to “twisting the bottle cap” to prevent rainwater from seeping in.
Product Features:
All stainless steel structure, surface rust prevention treatment, can resist sun and rain exposure;
Mechanical anti-reverse design effectively prevents tailgating and forced collisions.
Low power motor, supports automatic pole dropping in case of power failure, ensuring channel safety.
Wide temperature range operation (-30 ℃ to 70 ℃), suitable for extreme climates.
Applicable scenarios:
Construction sites, factory entrances and exits, scenic spot ticket inspection areas, school gates, and other places that require high durability and basic anti-tailgating measures.
Core advantages:
High cost-effectiveness, simple maintenance, and long service life make it the preferred choice for outdoor basic pedestrian passage control.

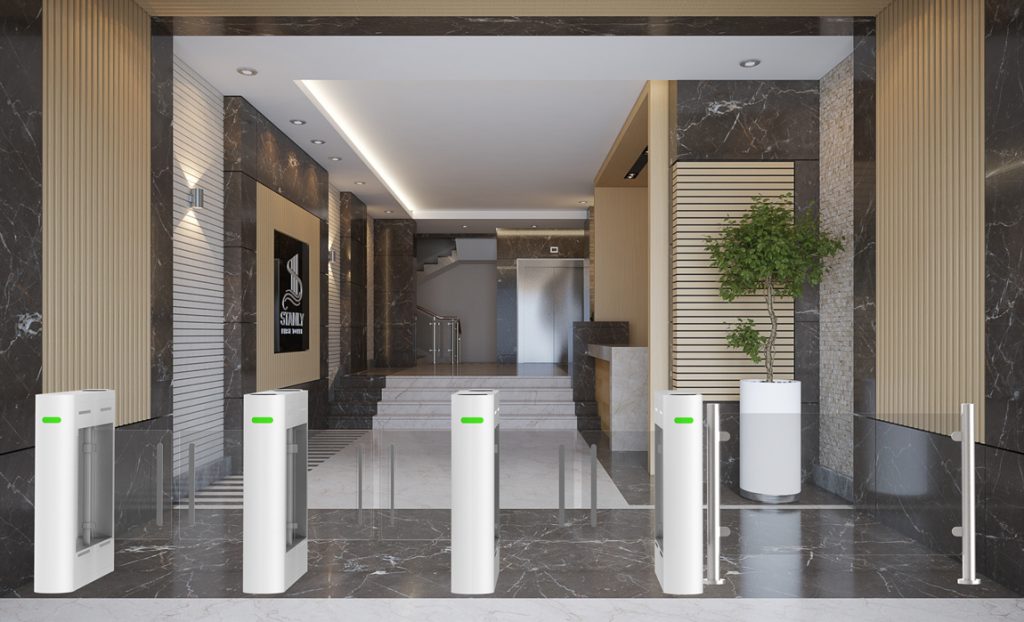

Outdoor Flap Barrier Turnsitle MT253: An Elegant Choice for Fast Access in Outdoor Environments
Flap barrier turnstile is commonly used in outdoor situations where speed and aesthetics are required due to their smooth traffic experience and high traffic efficiency. In order to meet the needs of users who pursue both aesthetics and speed, we continuously conduct technological research and development, and have launched the outdoor flap barrier gate style MT253 to flexibly respond to various user needs.
This outdoor flap barrier turnstile MT253 has a beautiful appearance and waterproof performance. The waterproof function is fully considered in the design of the exterior structure. The top of the gate adopts a tilted arc-shaped structure, which not only looks beautiful but also maximizes the avoidance of water accumulation, so that rainwater will not enter the chassis from the top. By equipping multiple pairs of infrared light curtains for precise detection, it can effectively identify trailing and illegal intrusion behaviors and provide real-time alarms.
Secondly, the bonding area of the card swiping panel is treated with sealing and waterproofing. The surface of the card-swiping panel is coated with a hydrophobic layer, and the interface uses IP68-rated cable sealing joints. Prevent rainwater from seeping in. As a high-end waterproof flap barrier gate, the interior of the chassis adopts a double-layer nested treatment, with components isolated separately and assisted by a diversion and drainage design. Even if the chassis is flooded, the core components will not be damaged.
Product Features:
Fan-shaped flap door design, opening and closing quietly and quickly, providing a good driving experience.
IP54 protection level, core components are waterproof and dustproof, and can withstand wind and rain weather;
Infrared multiple anti-pinch to ensure pedestrian safety;
Support multiple verification methods: card swiping, facial recognition, QR code, etc. Seamless integration of various recognition terminals such as facial recognition, QR code scanners, ID card readers, ticketing machines, etc
Applicable scenarios:
Office parks, smart communities, outdoor passages in stations, sports venues, and other places that require a balance between safety and traffic efficiency.
Core advantages:
Fast travel speed, modern appearance, and good anti-tailgating performance, suitable for mid to high-end outdoor environments.
Outdoor swing turnstile MT343: a flexible and wide channel outdoor adaptability powerhouse
The width of the outdoor swing turnstile channel is flexible, and the outdoor swing turnstile channel is wider. The width of a single standard chassis channel can reach over 600mm. Through multiple combinations or special designs, it can easily handle the passage of luggage, suitcases, strollers, wheelchairs, and even non-motorized vehicles, with higher anti-pinch safety and stronger environmental tolerance (such as wind resistance and collision resistance). It is an ideal choice for outdoor scenic spots, stations, and venue entrances. It can be designed for one-way or two-way traffic, even allowing bicycles and small carts to pass through, making it highly flexible in outdoor scenes.
The outdoor swing turnstile MT343 not only has a higher cost-effectiveness, but also can paint the external chassis, which can better adapt to outdoor environments. The swing arm material is sturdy and the connecting components are reliable. Equipped with an anti-collision buffer device, it can automatically reset or enter the repair mode in case of accidental impact, reducing damage.
This outdoor swing turnstile MT343 has a protection level of IP65 or above. The case is fully sealed with professional waterproof adhesive tape, waterproof vent valve and rainproof roof cover, which can effectively prevent the invasion of rain, dust and sand, and adapt to rainstorm, sandstorm and other adverse weather. The interior of the chassis adopts a double-layer nesting process, with components isolated separately and assisted by a flow guiding and drainage design, so that even if the chassis is flooded with water, the core components will not be damaged. The internal interface also uses IP68-rated cable sealing joints.
Product Features:
Adjustable swing arm, with a channel width of over 1.2 meters, suitable for various traffic needs;
High torque motor, strong wind resistance and high stability;
The resistance rebound function, the swing arm automatically retracts when encountering obstacles, ensuring good safety.
Customizable length and material to adapt to different installation environments.
Applicable scenarios:
Places that require both personnel and non-motorized vehicle access, such as scenic area entrances and exits, campus passages, rider passages, and exhibition centers.
Core advantages:
High channel flexibility, able to pass through large objects, widely applicable in various scenarios.
Outdoor Speed Gate MT359W: The King of Traffic Efficiency in High-Flow Outdoor Places
The outdoor speed gate MT359 is a high-end product in the field of outdoor turnstiles, designed specifically for places that require extremely high traffic efficiency and safety in harsh outdoor environments. The streamlined modern design has a simple and atmospheric appearance, with a strong sense of technology and modernity, which can enhance the overall image of the installation site.
The chassis adopts a fully sealed design, using automotive-grade sealing strips and waterproof breathable valves. Can withstand high-pressure water gun flushing and a strong dust environment. The main body is made of 316 stainless steel or high-strength aviation aluminum alloy, and the surface treatment process (such as multi-layer fluorocarbon spraying) far exceeds that of ordinary turnstiles. It can resist ultraviolet rays, salt spray, acid rain, and extreme temperature differences for a long time (the working temperature range can reach -40 ℃~70 ℃).
Its core feature is the combination of “ultimate speed, top-level protection, and intelligent precision”. This outdoor speed gate MT359W is known for its extremely high traffic speed and frequency. Its movement speed is extremely fast, and the opening/closing time is usually between 0.2-0.8 seconds, which is more than 2-3 times that of ordinary swing turnstile or flap barrier gate, greatly reducing pedestrian waiting time and avoiding entrance congestion.
Commonly used in outdoor transportation hubs or large event venues with high pedestrian traffic.
Outdoor speed gates are the culmination of technology and materials, achieving a fast and smooth passage experience comparable to barrier-free channels while ensuring top-level physical protection. At the same time, millisecond-level safety judgment is achieved through precision sensing. It is not only a gate that can be used outdoors, but also a precision system designed for efficient outdoor traffic.
It uses servo motors and the motion curve has been optimized. The start and stop are very smooth, quiet, and without any impact, avoiding the jerky feeling of “mechanical hard collision” and enhancing the experience in high-end venues. The standard channel width can reach 550mm-900mm, providing ample space for pedestrians to pass quickly without the need to deliberately adjust their posture.
Product Features:
Millisecond-level response speed, capable of passing over 45 people per minute;
Multi-sensor linkage, precise identification of traffic logic, high anti-tailgating level;
Heavy-duty aluminum alloy structure, surface anodized, strong corrosion resistance;
Intelligent scheduling algorithm, supporting interval adjustment during peak hours and emergency fully open mode.
Applicable scenarios:
Places that require maximum traffic efficiency, such as outdoor entrances to subway stations, high-speed rail station plazas, ticket inspection areas for large-scale events, and cross-border ports.
Core advantages:
With extremely fast travel speed, high level of intelligence, and strong durability, it is an ideal choice for high traffic outdoor places. Seamless integration of various verification terminals such as facial recognition (supporting liveness detection), palm vein, QR code reader, ID card reader, ticketing system, etc., to achieve seamless passage.
Outdoor full height turnstile PT400: the highest safety level of outdoor enclosed control
This outdoor full height turnstile PT400 is a carefully designed and developed outdoor full-height gate by MairsTurnstile over many years. It has a very stylish baked paint appearance, a simple and sturdy structure, and excellent durability. Through absolute physical barriers, achieve mandatory traffic management with “one person, one gate, no tailgating, and no loopholes”. Of course, we also have another full height turnstile gate designed specifically for outdoor use, with a canopy for you to choose from.
The protection level of this outdoor full height turnstile gate PT400 is IP65. The entire chassis, top cover, and rotating rod are all made of 304/316 stainless steel, with extremely high requirements for welding and sealing processes, which can resist long-term exposure to sunlight, rain, and salt spray corrosion. The main structure is exceptionally sturdy, using heavy-duty steel and industrial-grade motors, capable of withstanding huge malicious impacts.
Even in a power-off state, the mechanical locking device can remain locked and cannot be manually pushed. The key bearings and transmission components are designed with special lubrication and sealing to adapt to a wide temperature range of -30 ℃ to 70 ℃. The motor has overheat protection and can operate stably under high-frequency use.
Outdoor full height turnstile is the most mandatory, enclosed, and anti-climbing and anti-tailgating type of turnstile in outdoor channel management. It achieves complete physical isolation of the traffic path through a closed guardrail structure that is over 2 meters high. The outdoor full height turnstile forms a fully enclosed passage, achieving the highest level of personnel control and eliminating the possibility of climbing or crossing, making it suitable for outdoor areas with extremely high safety requirements. Its core goal is not “efficiency” or “comfort”, but “foolproof safety and control”. Compatible with multiple identification methods, it can integrate all mainstream biometric and card recognition modules to achieve high security level identity verification.
Product Features:
Full height rotating fence (usually over 2 meters high), completely enclosed passage;
Heavy machinery structure with strong resistance to impact and damage;
Dual-channel redundant control ensures safe evacuation of personnel in case of power failure or malfunction.
Anti-climbing spike design (optional) to enhance deterrence.
Applicable scenarios:
High security outdoor areas such as prisons, power plants, chemical plants, military bases, and airport restricted zones.
Core advantages:
The highest security level, impeccable anti-tailgating and anti-climbing performance, is the solution for top security needs.
How to choose the suitable outdoor turnstile for you?
Clear security level requirements: Tripod turnstiles are selected for basic anti-tailgating, and full height turnstile gates are selected for high security closed control.
Evaluate pedestrian flow and traffic efficiency: Priority should be given to high-speed gates in high traffic areas, while flap barrier gates or swing turnstile gates can be selected based on experience for ordinary traffic.
Considering the target audience: Only pedestrians can choose flap barrier gates/tripod turnstile gates; If non motorized vehicles or large items need to be used, swing turnstiles should be selected.
Match environmental conditions: Ensure that the gate protection level (recommended IP65 or above) and material can adapt to the local climate.
Integration verification method: Select intelligent turnstile gates that support card swiping, facial recognition, QR code and other technologies according to management requirements.
The selection of outdoor turnstiles is not a one-size-fits-all approach, but requires comprehensive consideration of safety, efficiency, environment, and cost. From the classic and durable tripod turnstile gate, to the efficient and elegant flap barrier gate, from the flexible and spacious swing turnstile gate, to the traffic king speed gate turnstile, and to the top-level safe full height gate, each product plays a unique role in outdoor personnel control ecology. It is recommended to conduct on-site evaluation or consult professional security suppliers before procurement to ensure that the selected gate perfectly meets your scene needs and achieves safe, efficient, and sustainable outdoor access management.
